Wellbore #00 Wellbore Classification: GW Status: PR - 5/31/2010 Measured TD: 7895 ft. Vertical TD: 7798 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/31/2010 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20091084 | Expiration Date: | 7/12/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 710 FSL 993 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 94W | Footage: 710 FSL 993 FEL | | Proposed Depth/Form: | 7898 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-66 , Unit Acreage: 640, Drill Unit: ALL |
| | |
| Wellbore Completed | | Completion Date: | 1/22/2010 | | Spud Date: | 1/12/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 7895 ft. | Measured PB depth: | 7851 ft. | | True Vertical TD: | 7798 ft. | True Vertical PB depth: | 7754 ft. | | Top PZ Location: | Sec:34 Twp: 6S 94W | Footage: 735 FSL 978 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 94W | Footage: 716 FSL 992 FEL | | Log Types: | CBL, HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON, MUD | | Log Types: | SP/GR/HDIL/ZDL/CN
CBL
Mud
Triple combo

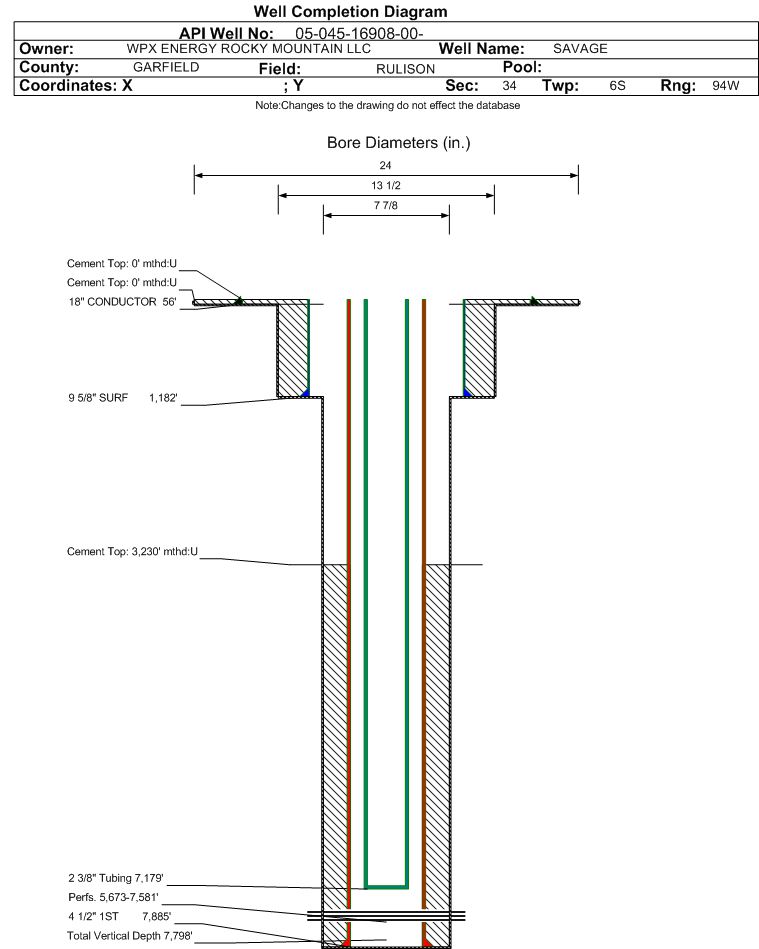

Lplot VH | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 56 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 56 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1182 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 330, Top: 0 ft., Bottom: 1182 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7885 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1285, Top: 3230 ft., Bottom: 7885 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | J SAND | 1629 ft. | | | | | WASATCH G | 1629 ft. | | N | N | | MESAVERDE | 4167 ft. | | | | | CAMEO | 6864 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 8/31/2010 Interval Top: 5673 ft. Interval Bottom: 7581 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/2/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 4/1/2010 | | Treatment Summary: | 3503 GALS 7 1/2% HCL: 879894# 20/40 SAND: 27211 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7179 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/31/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1080 | | CALC_MCF_GAS | 946 | | CASING_PRESS | 1866 | | MCF_GAS | 946 | | TUBING_PRESS | 1628 |
| | Perforation Data: | | Interval Top: | 5673 ft. | # Of Holes: | 150 | | Interval Bottom: | 7581 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 36 |
| Total Gas Produced (MCF) | 20894 |
| GOR | 580388 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.973 |
| Average MCFE per Day | 57.830 |
| Federal Financial Assurance | i | |
|
|
