Wellbore #00 Wellbore Classification: GW Status: PR - 9/20/2010 Measured TD: 7960 ft. Vertical TD: 7650 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/20/2010 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20091083 | Expiration Date: | 7/12/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2099 FSL 1945 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 94W | Footage: 2099 FSL 1945 FEL | | Proposed Depth/Form: | 8179 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-66 , Unit Acreage: 640, Drill Unit: ALL |
| | |
| Wellbore Completed | | Completion Date: | 12/23/2009 | | Spud Date: | 12/13/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 7960 ft. | Measured PB depth: | 7909 ft. | | True Vertical TD: | 7650 ft. | True Vertical PB depth: | 7599 ft. | | Top PZ Location: | Sec:34 Twp: 6S 94W | Footage: 2190 FSL 2490 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 94W | Footage: 2180 FSL 2478 FEL | | Log Types: | CBL, CBL REVISED, RPM, MUD | | Log Types: | CBL
RPM
Mud
Radial analysis bond log

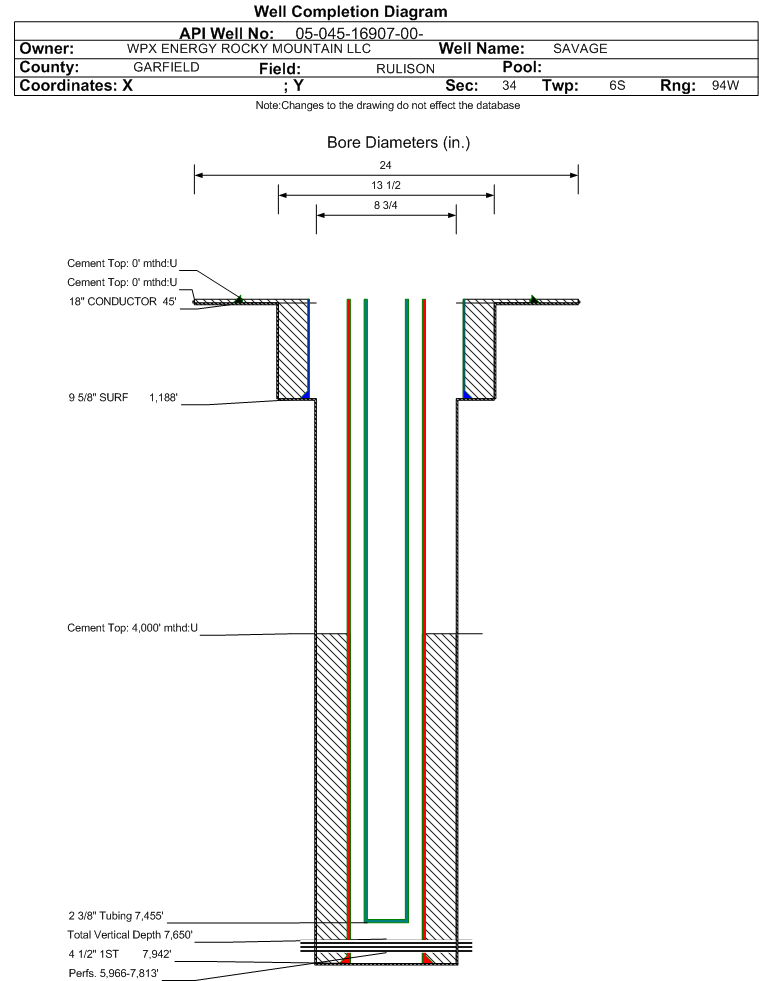

Neutron | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: , Bottom: 45 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1188 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: , Bottom: 1188 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7942 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1246, Top: 4000 ft., Bottom: 7942 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 1671 ft. | | | | | WASATCH G | 1671 ft. | | N | N | | MESAVERDE | 4408 ft. | | | | | CAMEO | 7107 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 3/1/2012 Interval Top: 5966 ft. Interval Bottom: 7813 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 3/17/2010 | Choke Size: | 0.141 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/14/2010 | | Treatment Summary: | 4,003 GALS 7 1/2% HCL; 983,650# 20/40 SAND; 30,747 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7455 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/30/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1073 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1086 | | CASING_PRESS | 2955 | | GRAVITY_OIL | 0 | | MCF_GAS | 1086 | | TUBING_PRESS | 2712 |
| | Perforation Data: | | Interval Top: | 5966 ft. | # Of Holes: | 166 | | Interval Bottom: | 7813 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 95 |
| Total Gas Produced (MCF) | 53709 |
| GOR | 565357 |
| GOR Determination | MCFE |
| Average BOE per Day | 25.628 |
| Average MCFE per Day | 148.675 |
| Federal Financial Assurance | i | |
|
|
