Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-16906		Well Classification: GW	Status: PR - 6/1/2011
Well Name/No:	SAVAGE #RWF 33-34 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	CACOC60596
Facility Status:	PR	Status Date	6/1/2011
FacilityID:	297644	LocationID:	334888
County:	GARFIELD #045	Location:	SWSE 34 6S94W 6
Field:	RULISON - #75400	Elevation:	5626 ft.
Basin:	PICEANCE BASIN
Planned Location:	560FSL 1987 FEL	Lat/Long: 39.476100 / -107.871583	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.476097 / -107.871577	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 6/1/2011 Measured TD: 8213 ft. Vertical TD: 7782 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 6/1/2011
Wellbore Permit			DIRECTIONAL
Permit #:	20091072	Expiration Date:	7/9/2010
Proposed Top PZ Location:	Sec: Twp:	Footage: 2429 FSL 1971 FEL
Bottom Hole Location:	Sec:34 Twp: 6S 94W	Footage: 2429 FSL 1971 FEL
Proposed Depth/Form:	8292 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 139-66 , Unit Acreage: 640, Drill Unit: ALL

Wellbore Completed
Completion Date:	2/10/2010
Spud Date:	2/1/2010	Spud Date Is:	ACTUAL
Measured TD:	8213 ft.	Measured PB depth:	8161 ft.
True Vertical TD:	7782 ft.	True Vertical PB depth:	7730 ft.
Top PZ Location:	Sec:34 Twp: 6S 94W	Footage: 2488 FSL 2389 FEL
Bottom Hole Location:	Sec:34 Twp: 6S 94W	Footage: 2450 FSL 2380 FEL
Log Types:	CBL, MUD
Log Types:	CBL,RPM

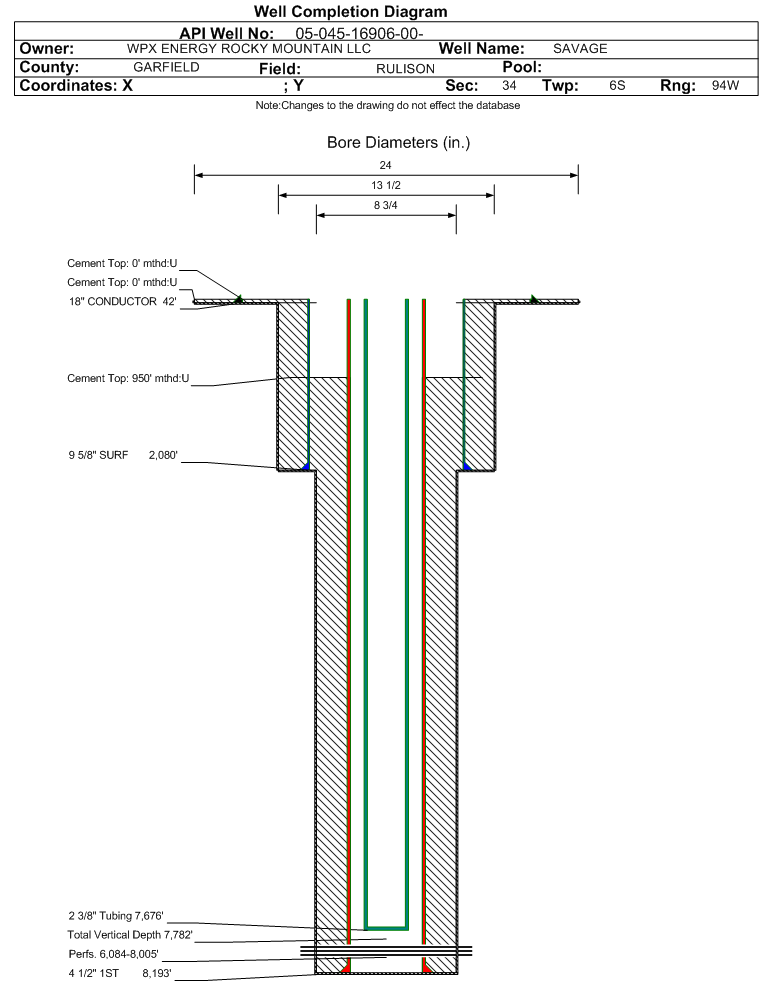

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 42 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 16, Top: 0 ft., Bottom: 42 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2080 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 516, Top: 0 ft., Bottom: 2080 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8193 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 1287, Top: 950 ft., Bottom: 8193 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
GREELEY SAND	1748 ft.
WASATCH G	1748 ft.		N	N
MESAVERDE	4552 ft.
CAMEO	7254 ft.
ROLLINS	8109 ft.

Formation WFCM Formation Classification: GW Status: PR - 6/1/2011 Interval Top: 6084 ft. Interval Bottom: 8005 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	4/2/2010	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	3/31/2010
Treatment Summary:	4000GALS 7 1/2% HCL; 866086# 20/40 SAND; 27098 BBLS SLICKWATER (SUMMARY)

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7676 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	5/31/2010	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1063
CASING_PRESS	2326
MCF_GAS	1073
TUBING_PRESS	2135

Perforation Data:
Interval Top:	6084 ft.	# Of Holes:	176
Interval Bottom:	8005 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	46
Total Gas Produced (MCF)	25950
GOR	564130
GOR Determination	MCFE
Average BOE per Day	12.385
Average MCFE per Day	71.848

Federal Financial Assurance

Tribal Well
