Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Old GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-16900		Well Classification: GW	Status: PR - 6/1/2011
Well Name/No:	SAVAGE #RWF 44-34 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	CACOC60596
Facility Status:	PR	Status Date	6/1/2011
FacilityID:	297639	LocationID:	334888
County:	GARFIELD #045	Location:	SWSE 34 6S94W 6
Field:	RULISON - #75400	Elevation:	5626 ft.
Basin:	PICEANCE BASIN
Planned Location:	553FSL 1891 FEL	Lat/Long: 39.476080 / -107.871559	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.476077 / -107.871554	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 6/1/2011 Measured TD: 8048 ft. Vertical TD: 7794 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 6/1/2011
Wellbore Permit			DIRECTIONAL
Permit #:	20091080	Expiration Date:	7/9/2010
Proposed Top PZ Location:	Sec: Twp:	Footage: 1300 FSL 642 FEL
Bottom Hole Location:	Sec:34 Twp: 6S 94W	Footage: 1300 FSL 642 FEL
Proposed Depth/Form:	8067 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 139-66 , Unit Acreage: 640, Drill Unit: ALL

Wellbore Completed
Completion Date:	2/22/2010
Spud Date:	2/11/2010	Spud Date Is:	ACTUAL
Measured TD:	8048 ft.	Measured PB depth:	8030 ft.
True Vertical TD:	7794 ft.	True Vertical PB depth:	7776 ft.
Top PZ Location:	Sec:34 Twp: 6S 94W	Footage: 1327 FSL 624 FEL
Bottom Hole Location:	Sec:34 Twp: 6S 94W	Footage: 1310 FSL 643 FEL
Log Types:	CBL,RPM
Log Types:	CBL, MUD

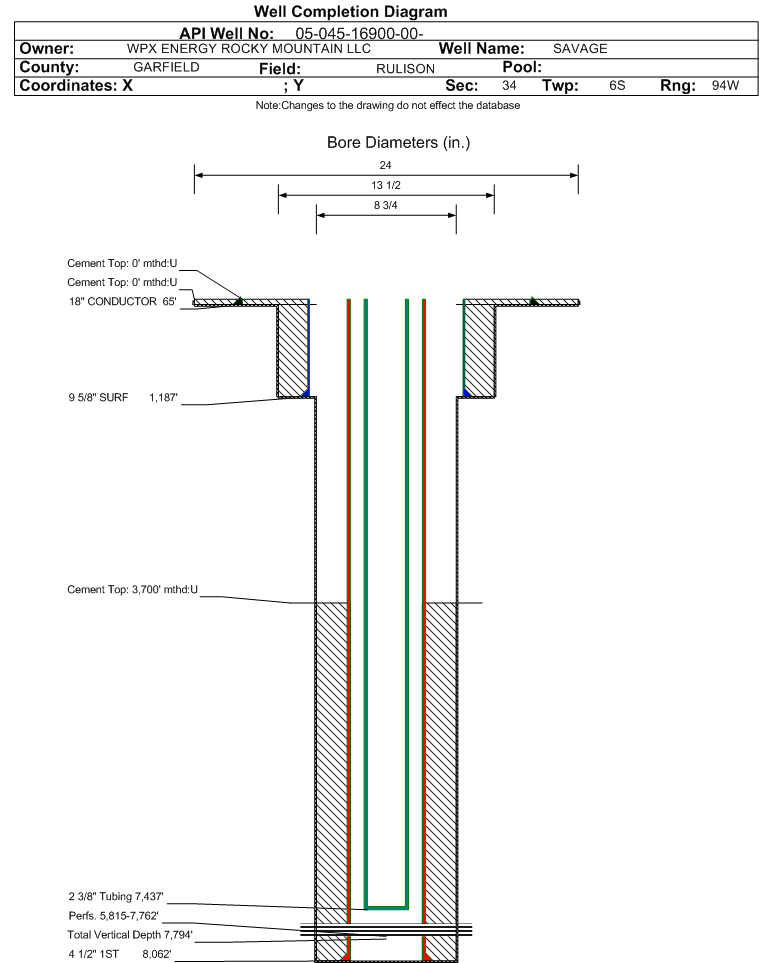

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 65 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 24, Top: , Bottom: 65 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1187 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 330, Top: 0 ft., Bottom: 1187 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8062 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 1300, Top: 3700 ft., Bottom: 8062 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
GREELEY SAND	1605 ft.
WASATCH G	1605 ft.		N	N
MESAVERDE	4311 ft.
CAMEO	7021 ft.
ROLLINS	7886 ft.

Formation WFCM Formation Classification: GW Status: PR - 6/1/2011 Interval Top: 5815 ft. Interval Bottom: 7762 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	4/2/2010	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	3/31/2010
Treatment Summary:	4500 GALS 7 1/2% HCL; 839677# 20/40 SAND; 26639 BBLS SLICKWATER (SUMMARY)

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7437 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	5/31/2010	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1057
CASING_PRESS	2311
MCF_GAS	1025
TUBING_PRESS	2078

Perforation Data:
Interval Top:	5815 ft.	# Of Holes:	169
Interval Bottom:	7762 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

February 2025 - January 2026	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	30
Total Gas Produced (MCF)	16914
GOR	563800
GOR Determination	MCFE
Average BOE per Day	8.080
Average MCFE per Day	46.859

Federal Financial Assurance

Tribal Well
