Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-16894		Well Classification: GW	Status: PR - 6/1/2011
Well Name/No:	SAVAGE #RWF 332-34 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PR	Status Date	6/1/2011
FacilityID:	297633	LocationID:	334888
County:	GARFIELD #045	Location:	SWSE 34 6S94W 6
Field:	RULISON - #75400	Elevation:	5626 ft.
Basin:	PICEANCE BASIN
Planned Location:	570FSL 1886 FEL	Lat/Long: 39.476128 / -107.871543	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.476125 / -107.871537	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 6/1/2011 Measured TD: 8199 ft. Vertical TD: 7629 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 6/1/2011
Wellbore Permit			DIRECTIONAL
Permit #:	20091073	Expiration Date:	7/9/2010
Proposed Top PZ Location:	Sec: Twp:	Footage: 2490 FNL 1994 FEL
Bottom Hole Location:	Sec:34 Twp: 6S 94W	Footage: 2490 FNL 1994 FEL
Proposed Depth/Form:	8454 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 139-66 , Unit Acreage: 640, Drill Unit: ALL

Wellbore Completed
Completion Date:	3/14/2010
Spud Date:	3/5/2010	Spud Date Is:	ACTUAL
Measured TD:	8199 ft.	Measured PB depth:	8145 ft.
True Vertical TD:	7629 ft.	True Vertical PB depth:	7575 ft.
Top PZ Location:	Sec:34 Twp: 6S 94W	Footage: 2421 FNL 2455 FEL
Bottom Hole Location:	Sec:34 Twp: 6S 94W	Footage: 2416 FNL 2442 FEL
Log Types:	CBL,RPM
Log Types:	CBL, MUD

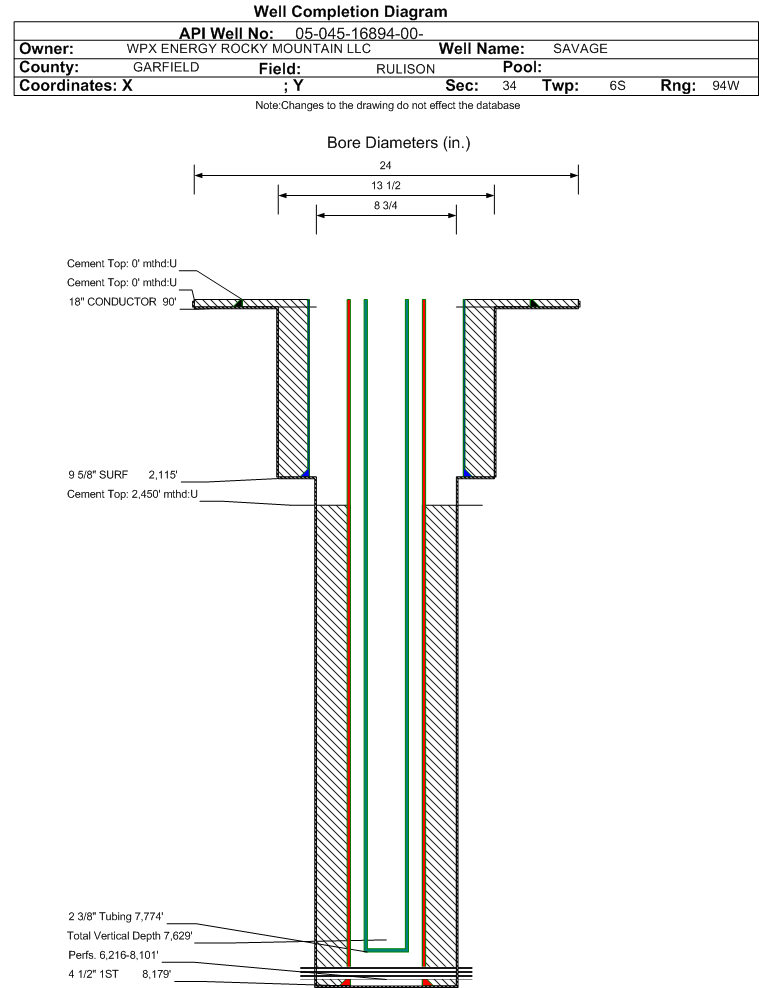

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 90 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 34, Top: 0 ft., Bottom: 90 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2115 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 365, Top: 0 ft., Bottom: 2115 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8179 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 1235, Top: 2450 ft., Bottom: 8179 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
GREELEY SAND	1817 ft.
WASATCH G	1817 ft.		N	N
MESAVERDE	4681 ft.
CAMEO	7385 ft.

Formation WFCM Formation Classification: GW Status: PR - 6/1/2011 Interval Top: 6216 ft. Interval Bottom: 8101 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	4/24/2010	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	4/20/2010
Treatment Summary:	3500 GALS 7 1/2% HCL; 885200# 20/40 SNAD; 25603 BBLS SLICKWATER (SUMMARY)

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7774 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	5/31/2010	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1069
CASING_PRESS	2535
MCF_GAS	1196
TUBING_PRESS	2319

Perforation Data:
Interval Top:	6216 ft.	# Of Holes:	151
Interval Bottom:	8101 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	37
Total Gas Produced (MCF)	21443
GOR	579540
GOR Determination	MCFE
Average BOE per Day	10.234
Average MCFE per Day	59.337

Federal Financial Assurance

Tribal Well
