Wellbore #00 Wellbore Classification: GW Status: PR - 5/16/2008 Measured TD: 6953 ft. Vertical TD: 6876 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/16/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20083402 | Expiration Date: | 7/16/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1717 FNL 486 FWL | | Bottom Hole Location: | Sec:6 Twp: 7S 96W | Footage: 1717 FNL 486 FWL | | Proposed Depth/Form: | 6948 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-20 , Unit Acreage: 160, Drill Unit: NW/4 |
| | |

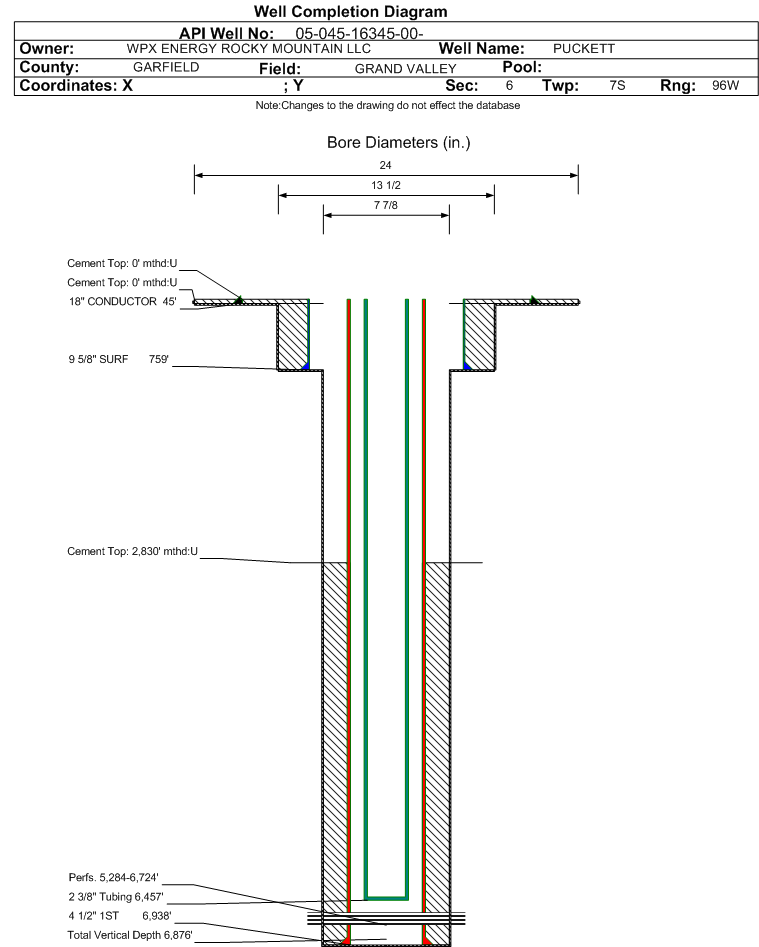

| Wellbore Completed | | Completion Date: | 10/26/2008 | | Spud Date: | 10/20/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 6953 ft. | Measured PB depth: | 6862 ft. | | True Vertical TD: | 6876 ft. | True Vertical PB depth: | 6785 ft. | | Top PZ Location: | Sec:6 Twp: 7S 96W | Footage: 1701 FNL 496 FWL | | Bottom Hole Location: | Sec:6 Twp: 7S 96W | Footage: 1701 FNL 496 FWL | | Log Types: | CBL; RMTE; MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 759 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 225, Top: 0 ft., Bottom: 758 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6938 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 727, Top: 2830 ft., Bottom: 6938 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2503 ft. | | N | N | | MESAVERDE | 3995 ft. | | N | N | | CAMEO | 6313 ft. | | N | N | | ROLLINS | 6834 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 3/22/2009 Interval Top: 5284 ft. Interval Bottom: 6724 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 1/17/2009 | Choke Size: | 0.188 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/12/2009 | | Treatment Summary: | 2473 GALS 7 1/2% HCL; 109334# 16/30 SAND;643667# 20/40 SAND 20789 BBLS SLICKWWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6457 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/22/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CASING_PRESS | 1434 | | MCF_GAS | 1124 | | TUBING_PRESS | 1217 |
| | Perforation Data: | | Interval Top: | 5284 ft. | # Of Holes: | 97 | | Interval Bottom: | 6724 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 29 |
| Total Gas Produced (MCF) | 18052 |
| GOR | 622482 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.603 |
| Average MCFE per Day | 49.921 |
| Federal Financial Assurance | i | |
|
|
