COGIS - WELL SCOUT CARD

Related Insp MIT GIS Old GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-16329		Well Classification: GW	Status: PR - 6/30/2010
Well Name/No:	FEDERAL #RWF 444-4 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	C46030
Facility Status:	PR	Status Date	6/30/2010
FacilityID:	297154	LocationID:	334848
County:	GARFIELD #045	Location:	SWSE 4 7S94W 6
Field:	RULISON - #75400	Elevation:	6272 ft.
Basin:	PICEANCE BASIN
Planned Location:	656FSL 1999 FEL	Lat/Long: 39.461791 / -107.890157	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.461800 / -107.890158	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 6/30/2010 Measured TD: 8665 ft. Vertical TD: 8361 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 6/30/2010
Wellbore Permit			DIRECTIONAL
Permit #:	20091140	Expiration Date:	5/7/2010
Proposed Top PZ Location:	Sec: Twp:	Footage: 448 FSL 337 FEL
Bottom Hole Location:	Sec:4 Twp: 7S 94W	Footage: 448 FSL 337 FEL
Proposed Depth/Form:	8664 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 640, Drill Unit: ALL

Wellbore Completed
Completion Date:	8/29/2009
Spud Date:	8/23/2009	Spud Date Is:	ACTUAL
Measured TD:	8665 ft.	Measured PB depth:	8619 ft.
True Vertical TD:	8361 ft.	True Vertical PB depth:	8315 ft.
Top PZ Location:	Sec:4 Twp: 7S 64W	Footage: 482 FSL 326 FEL
Bottom Hole Location:	Sec:4 Twp: 7S 94W	Footage: 480 FSL 316 FEL
Log Types:	CBL, RPM
Log Types:	CBL, MUD

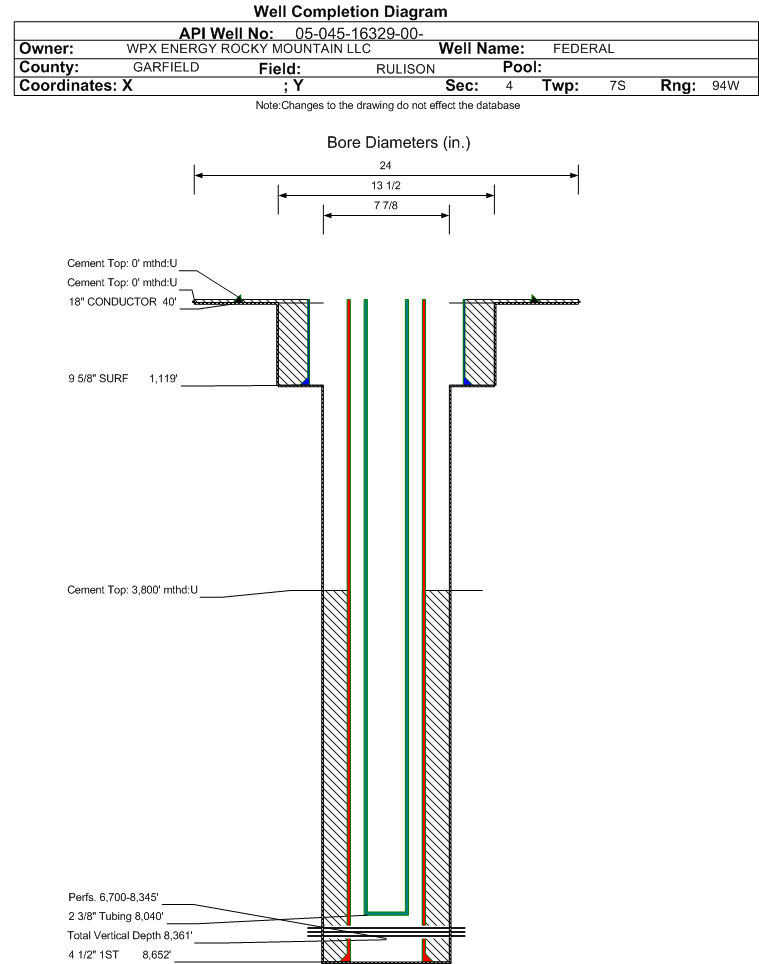

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 15, Top: 0 ft., Bottom: 45 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1119 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 320, Top: 0 ft., Bottom: 1119 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8652 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 885, Top: 3800 ft., Bottom: 8652 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
J SAND	2534 ft.
WASATCH G	2534 ft.		N	N
MESAVERDE	5109 ft.
CAMEO	7626 ft.
ROLLINS	8573 ft.

Formation WFCM Formation Classification: GW Status: PR - 6/30/2010 Interval Top: 6700 ft. Interval Bottom: 8345 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	5/7/2010	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	5/5/2010
Treatment Summary:	4997 GALS 7 1/2% HCL 785600 # 20/40 SAND: 21081 BBLS SLICKWATER(SUMMARY)

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	8040 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	6/30/2010	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1058
CALC_MCF_GAS	1088
CASING_PRESS	1593
MCF_GAS	1088
TUBING_PRESS	1455

Perforation Data:
Interval Top:	6700 ft.	# Of Holes:	152
Interval Bottom:	8345 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

February 2025 - January 2026	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	42
Total Gas Produced (MCF)	20669
GOR	492119
GOR Determination	MCFE
Average BOE per Day	9.878
Average MCFE per Day	57.301

Federal Financial Assurance

Tribal Well
