COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-16327		Well Classification: GW	Status: PR - 6/30/2010
Well Name/No:	FEDERAL #RWF 43-4 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	C46030
Facility Status:	PR	Status Date	6/30/2010
FacilityID:	297152	LocationID:	334848
County:	GARFIELD #045	Location:	SWSE 4 7S94W 6
Field:	RULISON - #75400	Elevation:	6272 ft.
Basin:	PICEANCE BASIN
Planned Location:	665FSL 2037 FEL	Lat/Long: 39.461815 / -107.890291	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.461823 / -107.890290	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 6/30/2010 Measured TD: 8790 ft. Vertical TD: 8404 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 6/30/2010
Wellbore Permit			DIRECTIONAL
Permit #:	20091129	Expiration Date:	5/7/2010
Proposed Top PZ Location:	Sec: Twp:	Footage: 2343 FSL 778 FEL
Bottom Hole Location:	Sec:4 Twp: 7S 94W	Footage: 2343 FSL 778 FEL
Proposed Depth/Form:	8823 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 640, Drill Unit: ALL

Wellbore Completed
Completion Date:	6/24/2009
Spud Date:	6/11/2009	Spud Date Is:	ACTUAL
Measured TD:	8790 ft.	Measured PB depth:	8742 ft.
True Vertical TD:	8404 ft.	True Vertical PB depth:	8356 ft.
Top PZ Location:	Sec:4 Twp: 7S 94W	Footage: 2371 FSL 804 FEL
Bottom Hole Location:	Sec:4 Twp: 7S 94W	Footage: 2375 FSL 802 FEL
Log Types:	CBL, RPM
Log Types:	CBL, RPM, MUD

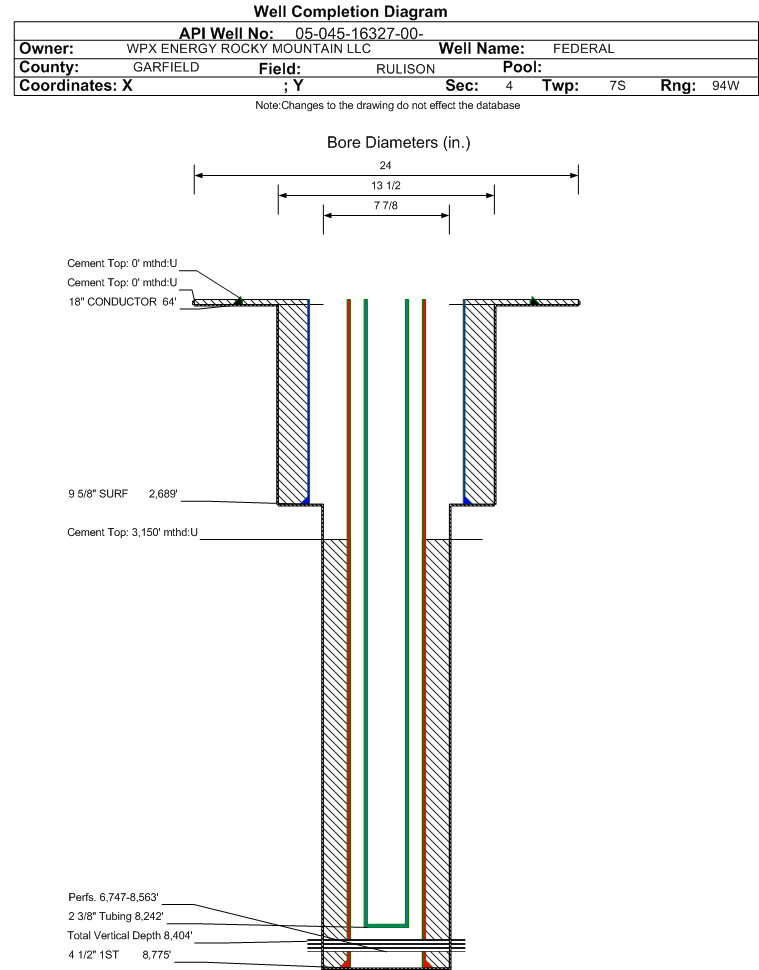

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 64 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 24, Top: 0 ft., Bottom: 64 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2689 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 650, Top: 0 ft., Bottom: 2689 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8775 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 900, Top: 3150 ft., Bottom: 8775 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
GREELEY SAND	2638 ft.
WASATCH G	2638 ft.		N	N
MESAVERDE	5158 ft.
CAMEO	7755 ft.
ROLLINS	8691 ft.

Formation WFCM Formation Classification: GW Status: PR - 6/30/2010 Interval Top: 6747 ft. Interval Bottom: 8563 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	5/6/2010	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	5/3/2010
Treatment Summary:	4000 GALS 7 1/2% HCL; 759900 # 20/40 SAND; 19296 BBLS SLICKWATER (SUMMARY)

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	8242 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	6/30/2010	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1068
CASING_PRESS	2337
MCF_GAS	1011
TUBING_PRESS	2186

Perforation Data:
Interval Top:	6747 ft.	# Of Holes:	130
Interval Bottom:	8563 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	45
Total Gas Produced (MCF)	21770
GOR	483777
GOR Determination	MCFE
Average BOE per Day	10.409
Average MCFE per Day	60.363

Federal Financial Assurance

Tribal Well
