Wellbore #00 Wellbore Classification: GW Status: PR - 6/30/2010 Measured TD: 8634 ft. Vertical TD: 8422 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/30/2010 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20091137 | Expiration Date: | 5/7/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2114 FSL 2021 FEL | | Bottom Hole Location: | Sec:4 Twp: 7S 94W | Footage: 2114 FSL 2021 FEL | | Proposed Depth/Form: | 8623 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 640, Drill Unit: ALL |
| | |

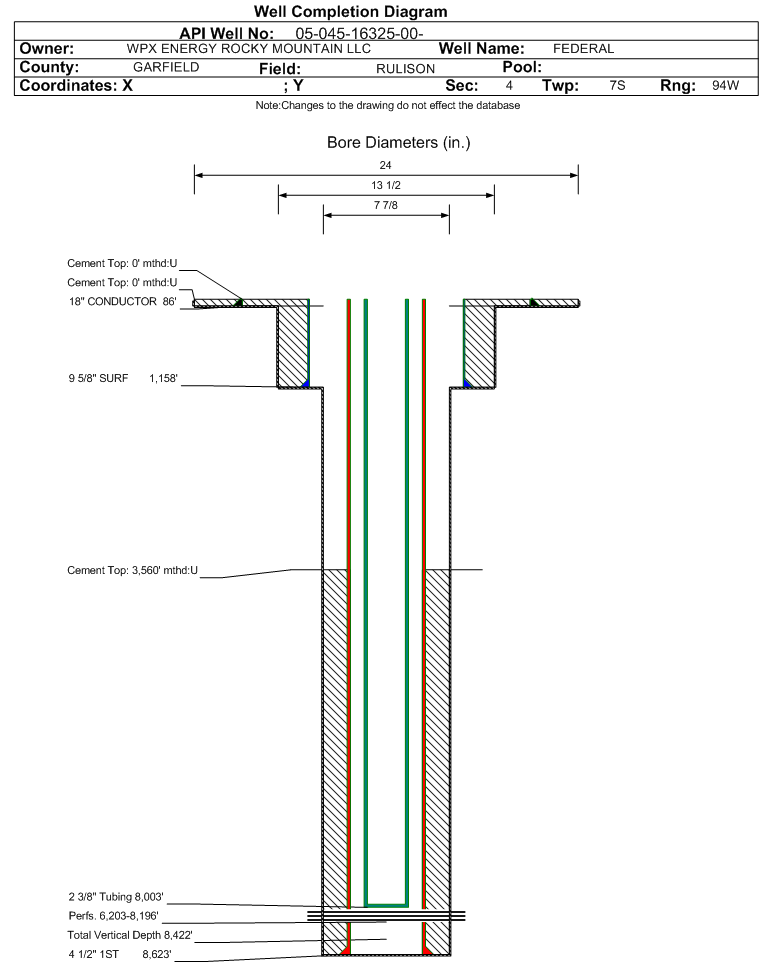

| Wellbore Completed | | Completion Date: | 5/10/2009 | | Spud Date: | 4/29/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 8634 ft. | Measured PB depth: | 8591 ft. | | True Vertical TD: | 8422 ft. | True Vertical PB depth: | 8379 ft. | | Top PZ Location: | Sec:4 Twp: 7S 94W | Footage: 2117 FSL 2047 FEL | | Bottom Hole Location: | Sec:4 Twp: 7S 94W | Footage: 2119 FSL 2049 FEL | | Log Types: | CBL, HIGH RES.IND.,SPECTRAL DENSITY, DUAL SPACED NEUTRON | | Log Types: | SP/GR/HDIL/ZDL/CN AND CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 86 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 32, Top: , Bottom: 86 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1158 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 320, Top: , Bottom: 1158 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8623 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 896, Top: 3560 ft., Bottom: 8623 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 2544 ft. | | | | | WASATCH G | 2544 ft. | | N | N | | MESAVERDE | 5043 ft. | | | | | CAMEO | 7601 ft. | | | | | ROLLINS | 8528 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 6/30/2010 Interval Top: 6203 ft. Interval Bottom: 8196 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 5/7/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 5/3/2010 | | Treatment Summary: | 4500 GALS 7 1/2% HCL; 919900 # 20/40 SAND; 23037 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8003 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/30/2010 | Test Method: | FLWOING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1053 | | CASING_PRESS | 2157 | | MCF_GAS | 992 | | TUBING_PRESS | 2116 |
| | Perforation Data: | | Interval Top: | 6203 ft. | # Of Holes: | 130 | | Interval Bottom: | 8196 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 53 |
| Total Gas Produced (MCF) | 26752 |
| GOR | 504754 |
| GOR Determination | MCFE |
| Average BOE per Day | 12.776 |
| Average MCFE per Day | 74.141 |
| Federal Financial Assurance | i | Y |
|
|
