Wellbore #00 Wellbore Classification: GW Status: PR - 9/1/2020 Measured TD: 8975 ft. Vertical TD: 8664 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/1/2020 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20082905 | Expiration Date: | 7/6/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 804 FNL 1415 FWL | | Bottom Hole Location: | Sec:16 Twp: 6S 97W | Footage: 860 FNL 1335 FWL | | Proposed Depth/Form: | 8878 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-15 , Unit Acreage: , Drill Unit: |
| | |

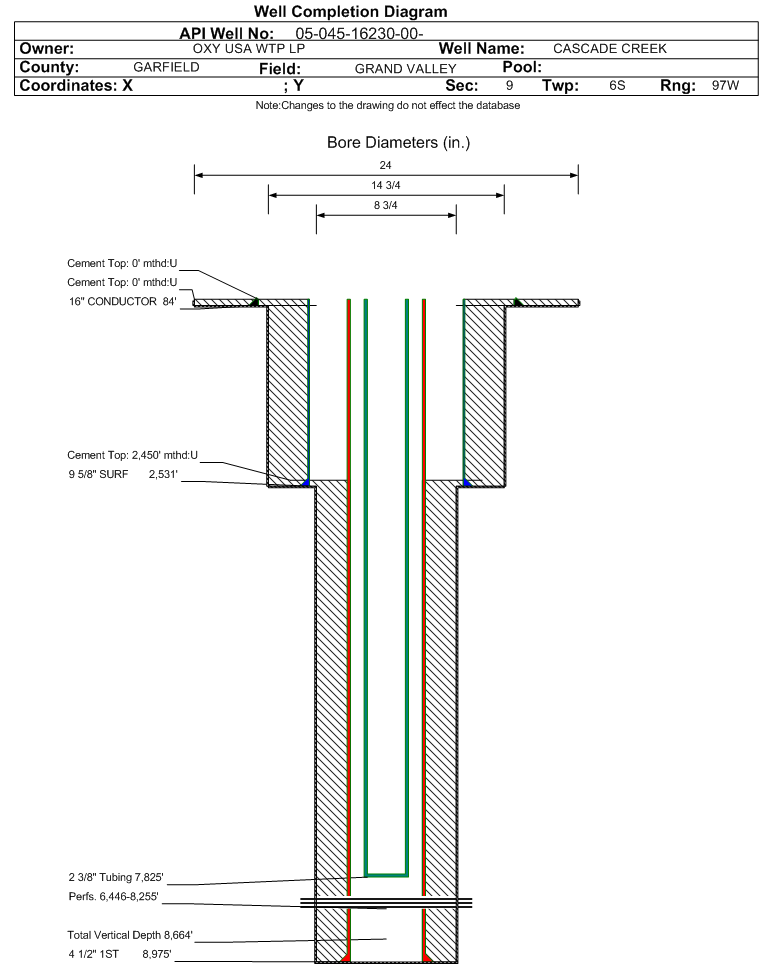

| Wellbore Completed | | Completion Date: | 11/17/2008 | | Spud Date: | 9/12/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 8975 ft. | Measured PB depth: | 8824 ft. | | True Vertical TD: | 8664 ft. | True Vertical PB depth: | 8512 ft. | | Top PZ Location: | Sec:16 Twp: 6S 97W | Footage: 804 FNL 1415 FWL | | Bottom Hole Location: | Sec:16 Twp: 6S 97W | Footage: 804 FNL 1415 FWL | | Log Types: | RMTE,CEMENT BOND-TEMP,SLIM HOLE SONIC,RMTE CORR, ACOUSTIC CBL & TEMP CORR, COMPENSATED SPECTRAL NATURAL GR | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 84 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 84 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2531 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1407, Top: 0 ft., Bottom: 2531 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8975 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1859, Top: 2450 ft., Bottom: 8975 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 5728 ft. | | N | N | | WILLIAMS FORK - CAMEO | 5932 ft. | | N | N | | CAMEO | 8110 ft. | | N | N | | ROLLINS | 8559 ft. | | N | N |
Formation WFCM Formation Classification: OW Status: PR - 9/1/2020 Interval Top: 6446 ft. Interval Bottom: 8255 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 12/18/2009 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/6/2009 | | Treatment Summary: | 7 stages of slickwater frac with 27,915 bbls of frac fluid and 958,918 lbs of 20/40 white sand proppant |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7825 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/20/2009 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1213 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1124 | | CASING_PRESS | 1275 | | GRAVITY_OIL | 0 | | MCF_GAS | 1124 | | TUBING_PRESS | 1117 |
| | Perforation Data: | | Interval Top: | 6446 ft. | # Of Holes: | 162 | | Interval Bottom: | 8255 ft. | Hole Size: | 0.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 4 |
| Total Gas Produced (MCF) | 8937 |
| GOR | 2234250 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.228 |
| Average MCFE per Day | 24.541 |
| Federal Financial Assurance | i | |
|
|
