Wellbore #00 Wellbore Classification: GW Status: PR - 5/1/2023 Measured TD: 8990 ft. Vertical TD: 8651 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/1/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20082912 | Expiration Date: | 7/6/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1548 FNL 2269 FEL | | Bottom Hole Location: | Sec:16 Twp: 6S 97W | Footage: 1644 FNL 2272 FEL | | Proposed Depth/Form: | 8863 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-15 , Unit Acreage: , Drill Unit: |
| | |

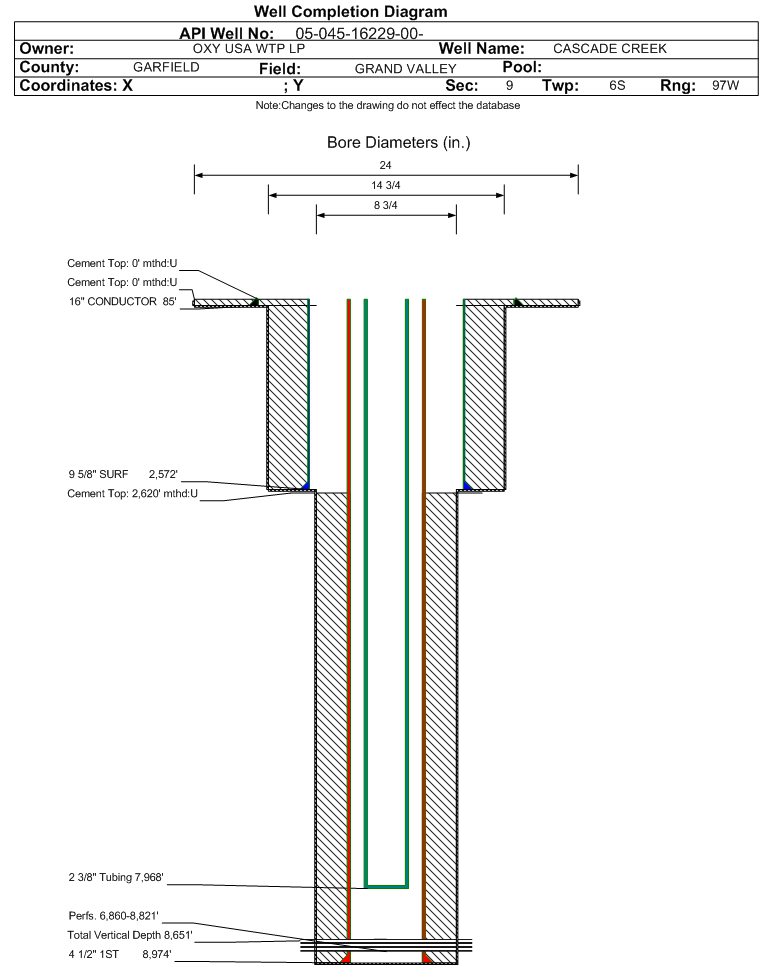

| Wellbore Completed | | Completion Date: | 9/3/2008 | | Spud Date: | 7/17/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 8990 ft. | Measured PB depth: | 8932 ft. | | True Vertical TD: | 8651 ft. | True Vertical PB depth: | 8593 ft. | | Top PZ Location: | Sec:16 Twp: 6S 97W | Footage: 1548 FNL 2269 FEL | | Bottom Hole Location: | Sec:16 Twp: 6S 97W | Footage: 1548 FNL 2269 FEL | | Log Types: | CBL/VDL, GAMMA RAY-CCL, RST SIGMA MODE-FIXED BEAM, RST INELASTIC CAPTURE MODE, PROCESSED DATA SSLT-B | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 85 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: 85 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 2572 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1715, Top: , Bottom: 2572 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 8974 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1849, Top: 2620 ft., Bottom: 8974 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2580 ft. | | N | N | | FORT UNION | 4539 ft. | | N | N | | MESAVERDE | 6004 ft. | | N | N | | CAMEO | 8423 ft. | | N | N | | ROLLINS | 8848 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 5/1/2023 Interval Top: 6860 ft. Interval Bottom: 8821 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 12/25/2009 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/20/2009 | | Treatment Summary: | ON 11/20 - WILLIAMSFORK: 3 STAGES OF SLICKWATER FRAC WITH 21,864 BBLS OF 2% KCI AND 77,663 LBS OF 20/40 WHITE SAND. STAGE WAS A COMBINED STAGE WITH THE CAMEO FORMATION. ON 11/13 CAMEO: 2 STAGES OF SLICKWATER FRAC (CONT.) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7968 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/29/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1572 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1456 | | CASING_PRESS | 1562 | | MCF_GAS | 1456 | | TUBING_PRESS | 1242 |
| | Perforation Data: | | Interval Top: | 6860 ft. | # Of Holes: | 180 | | Interval Bottom: | 8821 ft. | Hole Size: | 0.37 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 4 |
| Total Gas Produced (MCF) | 5988 |
| GOR | 1497000 |
| GOR Determination | MCFE |
| Average BOE per Day | 2.839 |
| Average MCFE per Day | 16.474 |
| Federal Financial Assurance | i | |
|
|
