Wellbore #00 Wellbore Classification: GW Status: PR - 2/22/2010 Measured TD: 9050 ft. Vertical TD: 8775 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/22/2010 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20082904 | Expiration Date: | 7/6/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 170 FNL 1232 FWL | | Bottom Hole Location: | Sec:16 Twp: 6S 97W | Footage: 195 FNL 1138 FWL | | Proposed Depth/Form: | 8829 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-15 , Unit Acreage: , Drill Unit: |
| | |

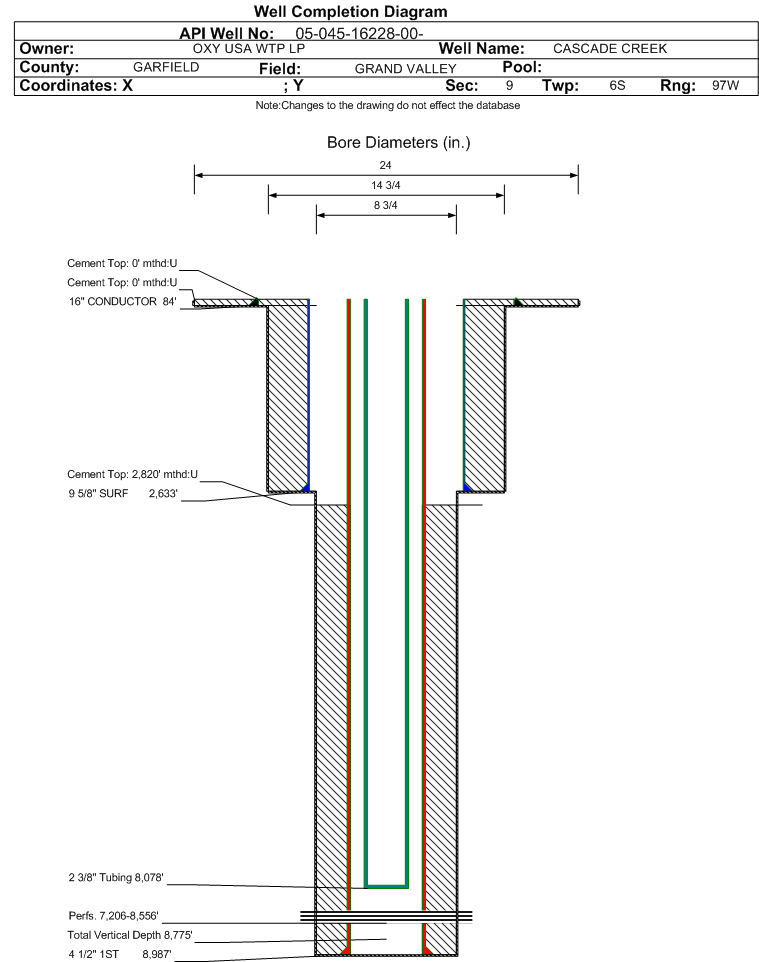

| Wellbore Completed | | Completion Date: | 11/9/2008 | | Spud Date: | 9/16/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 9050 ft. | Measured PB depth: | 8943 ft. | | True Vertical TD: | 8775 ft. | True Vertical PB depth: | 8669 ft. | | Top PZ Location: | Sec:16 Twp: 6S 97W | Footage: 169 FNL 1234 FWL | | Bottom Hole Location: | Sec:16 Twp: 6S 97W | Footage: 169 FNL 1234 FWL | | Log Types: | ACOUSTIC CBL, TEMP, RMTE, CBL, SLIM HOLE SONIC LOG | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 84 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 84 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2633 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1670, Top: 0 ft., Bottom: 2633 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8987 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1851, Top: 2820 ft., Bottom: 8987 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2671 ft. | | N | N | | FORT UNION | 4572 ft. | | N | N | | MESAVERDE | 5899 ft. | | N | N | | CAMEO | 8269 ft. | | N | N | | ROLLINS | 8708 ft. | | N | N |
Formation WFCM Formation Classification: OW Status: PR - 2/22/2010 Interval Top: 7206 ft. Interval Bottom: 8556 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/25/2009 | Choke Size: | 0.281 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/8/2009 | | Treatment Summary: | 5 STAGES OF SLICKWATER FRAC WITH 17331 BBLS OF 2% KCI AND 605001 LBS OF 20/40 WHITE SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8078 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/29/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 804 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 745 | | CASING_PRESS | 1650 | | MCF_GAS | 745 | | TUBING_PRESS | 1125 |
| | Perforation Data: | | Interval Top: | 7206 ft. | # Of Holes: | 117 | | Interval Bottom: | 8556 ft. | Hole Size: | 0.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 5 |
| Total Gas Produced (MCF) | 13000 |
| GOR | 2600000 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.155 |
| Average MCFE per Day | 35.702 |
| Federal Financial Assurance | i | |
|
|
