COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-16092		Well Classification: GW Status: PR - 1/28/2009
Well Name/No:MILLER FEDERAL #23A-6-791
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC66578
Facility Status:PRStatus Date1/28/2009
FacilityID:296665LocationID:334708
County:GARFIELD #045Location:SESW 6 7S91W 6
Field:MAMM CREEK - #52500Elevation:6285 ft.
Basin:PICEANCE BASIN
Planned Location:355FSL  1861 FWLLat/Long: 39.469989 / -107.599278Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.469988 / -107.599279Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/28/2009             Measured TD: 7160 ft.    Vertical TD: 6952 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/28/2009
Wellbore PermitDIRECTIONAL
Permit #:20083470 Expiration Date:6/19/2009
Proposed Top PZ Location:Sec: Twp: Footage: 1529 FSL  2025 FWL
Bottom Hole Location:Sec:6 Twp: 7S 91W Footage: 1529 FSL  2025 FWL
Proposed Depth/Form:7076 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-10 , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-32 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:10/10/2008
Spud Date:10/1/2008Spud Date Is:ACTUAL
Measured TD:7160 ft.Measured PB depth:7100 ft.
True Vertical TD:6952 ft.True Vertical PB depth:6892 ft.
Top PZ Location:Sec:6 Twp: 7S 91WFootage: 1545 FSL  2014 FWL
Bottom Hole Location:Sec:6 Twp: 7S 91WFootage: 1545 FSL  2014 FWL
Log Types:WEATHERFORD ARRAY INDUCTION/CPD/CDN/TRIPLE COMBO; SCHLUMBERGER CBL

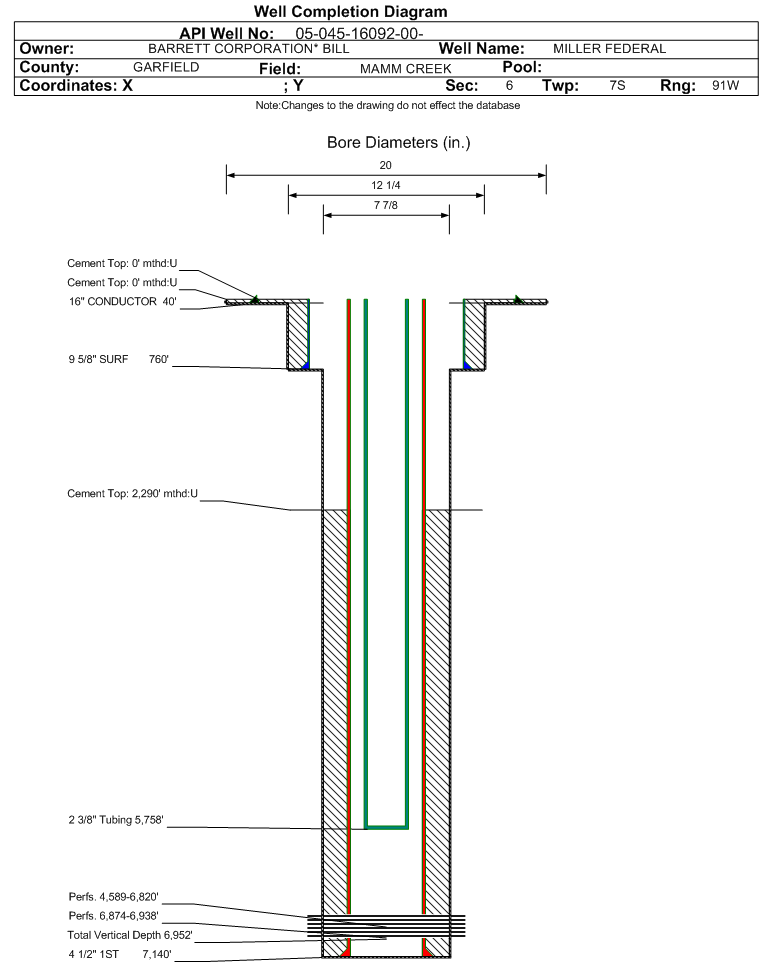

Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 760 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 240, Top: 0 ft., Bottom: 760 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7140 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 930, Top: 2290 ft., Bottom: 7140 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3079 ft.NN
ROLLINS6844 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 1/28/2009                 Interval Top: 6874 ft.    Interval Bottom: 6938 ft.

 Completed Information for Formation ROLLINS
1st Production Date:1/17/2009Choke Size:0.313 in.
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/31/2008
Treatment Summary:4,014 BBLS. OF SLICKWATER; 79,930 LBS. OF 20-40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5758 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/28/2009Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 2
BTU_GAS 1
CALC_BBLS_H2O 0
CALC_BBLS_OIL 2
CALC_GOR 41335
CALC_MCF_GAS 90
CASING_PRESS 1750
MCF_GAS 90
TUBING_PRESS 1445
Perforation Data:
Interval Top:6874 ft.# Of Holes:8
Interval Bottom:6938 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 1/28/2009                 Interval Top: 4589 ft.    Interval Bottom: 6820 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:1/17/2009Choke Size:0.313 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/31/2008
Treatment Summary:76,275 BBLS. OF SLICKWATER; 1,518,670 LBS. OF 20-40 SAND; 158,080 LBS. OPTIPROP 20-40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5758 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/28/2009Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 41
BTU_GAS 1
CALC_BBLS_H2O 0
CALC_BBLS_OIL 41
CALC_GOR 41265
CALC_MCF_GAS 1704
CASING_PRESS 1750
MCF_GAS 1704
TUBING_PRESS 1445
Perforation Data:
Interval Top:4589 ft.# Of Holes:180
Interval Bottom:6820 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)10
Total Gas Produced (MCF)4833
GOR483300
GOR DeterminationMCFE
Average BOE per Day2.311
Average MCFE per Day13.400

 Federal Financial Assurance  i Y

 Tribal Well  i No
