 Surface Location
 API# 05-045-16052		Well Classification: GW Status: PR - 10/21/2008
Well Name/No:JUNIPER #12-4A(M1E)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/21/2008
FacilityID:296483LocationID:334666
County:GARFIELD #045Location:SWSW 1 7S92W 6
Field:MAMM CREEK - #52500Elevation:6126 ft.
Basin:PICEANCE BASIN
Planned Location:1226FSL  419 FWLLat/Long: 39.472256 / -107.622967Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.472260 / -107.622960Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/21/2008             Measured TD: 5840 ft.    Vertical TD: 5641 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/21/2008
Wellbore PermitDIRECTIONAL
Permit #:20082704 Expiration Date:6/15/2009
Proposed Top PZ Location:Sec: Twp: Footage: 5 FNL  660 FWL
Bottom Hole Location:Sec:12 Twp: 7S 92W Footage: 5 FNL  660 FWL
Proposed Depth/Form:5675 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/28/2008
Spud Date:8/19/2008Spud Date Is:ACTUAL
Measured TD:5840 ft.Measured PB depth:5781 ft.
True Vertical TD:5641 ft.True Vertical PB depth:5582 ft.
Top PZ Location:Sec:1 Twp: 7S 92WFootage: 15 FSL  657 FWL
Bottom Hole Location:Sec:1 Twp: 7S 92WFootage: 15 FSL  657 FWL
Log Types:PEX, CBL

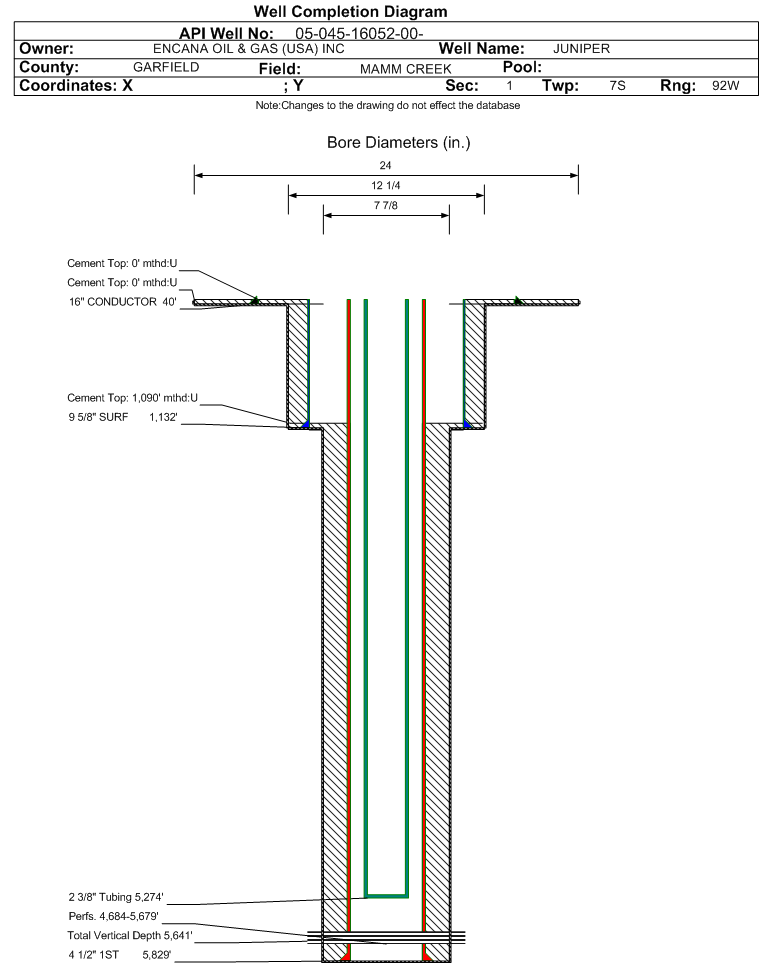

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1132 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 553, Top: 0 ft., Bottom: 1150 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5829 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 950, Top: 1090 ft., Bottom: 5840 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3301 ft.NN
WILLIAMS FORK3302 ft.5840 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 10/21/2008                Interval Top: 4684 ft.    Interval Bottom: 5679 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:10/8/2008Choke Size:0.313 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/7/2008
Treatment Summary:STAGES 01 - 04 TREATED W/A TOTAL OF 19,158 BBLS SLICKWATER & 572,208# 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5274 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/21/2008Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 483
BBLS_OIL 45
BTU_GAS 1170
CALC_BBLS_H2O 483
CALC_BBLS_OIL 45
CALC_GOR 12756
CALC_MCF_GAS 574
CASING_PRESS 1675
GRAVITY_OIL 53
MCF_GAS 574
TUBING_PRESS 1060
Perforation Data:
Interval Top:4684 ft.# Of Holes:108
Interval Bottom:5679 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)116
Total Gas Produced (MCF)17578
GOR151534
GOR DeterminationMCFE
Average BOE per Day8.616
Average MCFE per Day49.985

 Federal Financial Assurance  i

 Tribal Well  i No
