COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-16051		Well Classification: GW Status: SI - 5/1/2025
Well Name/No:JUNIPER #1-12(M1E)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date5/1/2025
FacilityID:296482LocationID:334666
County:GARFIELD #045Location:SWSW 1 7S92W 6
Field:MAMM CREEK - #52500Elevation:6126 ft.
Basin:PICEANCE BASIN
Planned Location:1230FSL  400 FWLLat/Long: 39.472264 / -107.623036Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.472260 / -107.623030Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 5/1/2025             Measured TD: 6265 ft.    Vertical TD: 6160 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 5/1/2025
Wellbore PermitDIRECTIONAL
Permit #:20082759 Expiration Date:6/15/2009
Proposed Top PZ Location:Sec: Twp: Footage: 892 FNL  660 FWL
Bottom Hole Location:Sec:1 Twp: 7S 92W Footage: 892 FNL  660 FWL
Proposed Depth/Form:6338 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/18/2008
Spud Date:8/10/2008Spud Date Is:ACTUAL
Measured TD:6265 ft.Measured PB depth:5956 ft.
True Vertical TD:6160 ft.True Vertical PB depth:5851 ft.
Top PZ Location:Sec:1 Twp: 7S 92WFootage: 1921 FSL  656 FWL
Bottom Hole Location:Sec:1 Twp: 7S 92WFootage: 1921 FSL  656 FWL
Log Types:CBL, RST

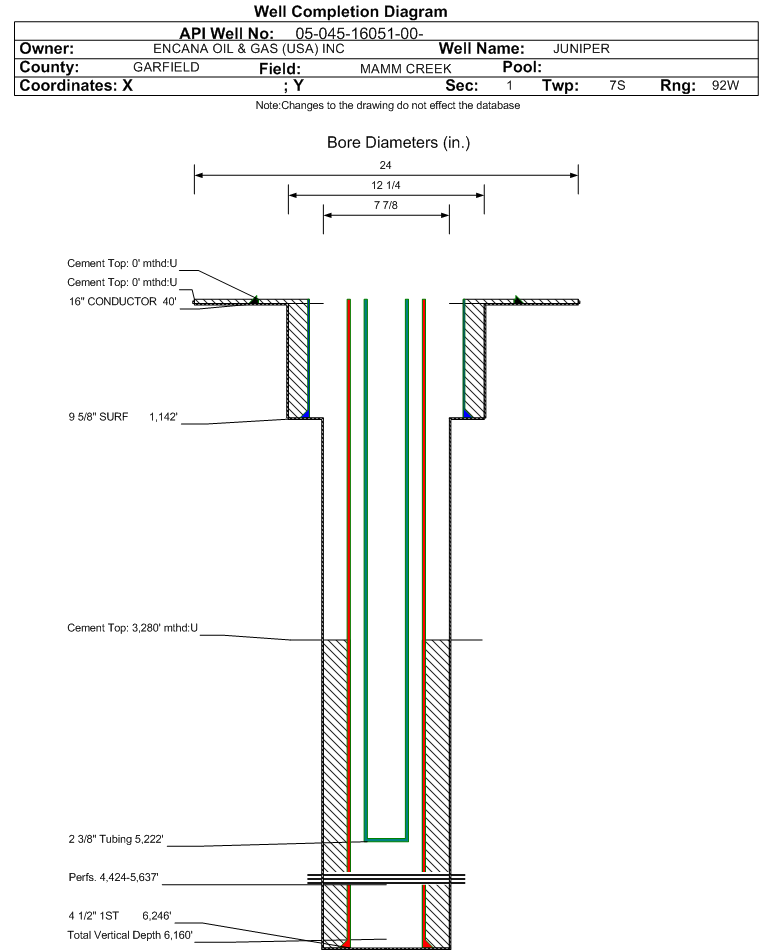

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1142 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 557, Top: 0 ft., Bottom: 1151 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6246 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1009, Top: 3280 ft., Bottom: 6246 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.2970 ft.NN
WILLIAMS FORK2971 ft.6265 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  SI - 5/1/2025                  Interval Top: 4424 ft.    Interval Bottom: 5637 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:10/11/2008Choke Size:0.313 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/6/2008
Treatment Summary:STAGES 01-05 TREATED WITH A TOTAL OF 32,622 BBLS OF SLICKWATER AND 492,149 LBS 20-40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5222 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/19/2008Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 709
BBLS_OIL 10
BTU_GAS 1170
CALC_BBLS_H2O 709
CALC_BBLS_OIL 10
CALC_GOR 68000
CALC_MCF_GAS 680
CASING_PRESS 1650
GRAVITY_OIL 53
MCF_GAS 680
TUBING_PRESS 880
Perforation Data:
Interval Top:4424 ft.# Of Holes:135
Interval Bottom:5637 ft.Hole Size:0.34 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)9
GOR
GOR DeterminationMCFE
Average BOE per Day0.006
Average MCFE per Day0.025

 Federal Financial Assurance  i

 Tribal Well  i No
