COGIS - WELL SCOUT CARD

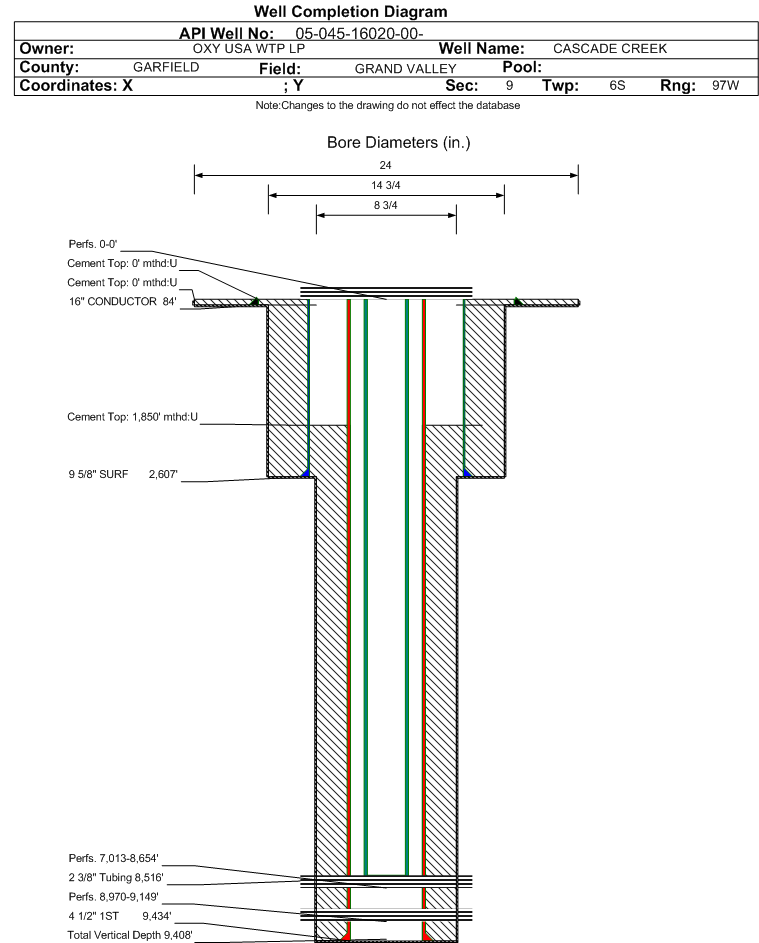

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-16020		Well Classification: GW Status: PR - 11/1/2020
Well Name/No:CASCADE CREEK #697-09-62A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:LARAMIE ENERGY LLC - 10433
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date11/1/2020
FacilityID:296424LocationID:335889
County:GARFIELD #045Location:SWSE 9 6S97W 6
Field:GRAND VALLEY - #31290Elevation:8279 ft.
Basin:PICEANCE BASIN
Planned Location:344FSL  2220 FELLat/Long: 39.531166 / -108.223338Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.531166 / -108.223338Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/1/2020             Measured TD: 9470 ft.    Vertical TD: 9408 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/1/2020
Wellbore PermitDIRECTIONAL
Permit #:20082561 Expiration Date:6/10/2009
Proposed Top PZ Location:Sec: Twp: Footage: 564 FSL  1499 FEL
Bottom Hole Location:Sec:9 Twp: 6S 97W Footage: 564 FSL  1499 FEL
Proposed Depth/Form:9460 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: COZZ , Formation: COZZETTE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: CRCRN , Formation: CORCORAN , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-15 , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 80 ft., Weight: 65 , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 80 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 2750 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 1416, Top: 0 ft., Bottom: 2750 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 9460 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 986, Top: 5460 ft., Bottom: 9460 ft.
Wellbore Completed
Completion Date:8/19/2008
Spud Date:7/12/2008Spud Date Is:ACTUAL
Measured TD:9470 ft.Measured PB depth:9383 ft.
True Vertical TD:9408 ft.True Vertical PB depth:9321 ft.
Top PZ Location:Sec:9 Twp: 6S 97WFootage: 564 FSL  1499 FEL
Bottom Hole Location:Sec:9 Twp: 6S 97WFootage: 564 FSL  1499 FEL
Log Types:COMP. DUAL NEUTRON, ARRAY INDUCTION SHALLOW FOCUSED ELECTRIC LOG, COMP SONIC LOG, HOLE VOLUME, CBL-VDL, GR-CCL, RST SIGMA MODE, RST INELASTIC CAPTURE MODE, PROCESSED DATA SSLT-B, COMP PHOTO DENSITY, COMPACT QUAD COMBO
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 84 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 84 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2607 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1464, Top: 0 ft., Bottom: 2607 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9434 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 2033, Top: 1850 ft., Bottom: 9434 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION4497 ft.NN
MESAVERDE5816 ft.NN
CAMEO8232 ft.NN
ROLLINS8685 ft.NN
COZZETTE8896 ft.NN
CORCORAN9181 ft.NN

Formation CRCRN                   Formation Classification:  OW                   Status:  PR - 11/1/2020                 Interval Top: 9181 ft.

 Completed Information for Formation CORCORAN
1st Production Date:1/7/2010Choke Size:0.375 in.
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/7/2009
Treatment Summary:1 STAGE OF SLICKWATER FRAC WITH 2,779 BBLS OF 2% KCI AND 91,242 LBS OF 20/40 WHITE SAND THIS STAGE WAS COMBINED STAGE WITH THE COZZETTE FORMATION.
Tubing Size:2.375 in.Tubing Setting Depth:8516 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/16/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1121
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 207
CASING_PRESS 948
GRAVITY_OIL 0
MCF_GAS 207
TUBING_PRESS 1601
Perforation Data:
Interval Top:# Of Holes:12
Interval Bottom:Hole Size:0.36 in.

Formation COZZ                     Formation Classification:  OW                     Status:  PR - 11/1/2020                 Interval Top: 8970 ft.    Interval Bottom: 9149 ft.

 Completed Information for Formation COZZETTE
1st Production Date:1/7/2010Choke Size:0.375 in.
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/8/2009
Treatment Summary:1 STAGE OF SLICKWATER FRAC WITH 4,938 BBLS OF 2% KCI AND 162,208 LBS OF 20/40 WHITE SAND THIS STAGE WAS A COMBINED STAGE WITH THE CORCORAN FORMATION.
Tubing Size:2.375 in.Tubing Setting Depth:8516 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/16/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1121
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 207
CASING_PRESS 948
GRAVITY_OIL 0
MCF_GAS 207
TUBING_PRESS 1601
Perforation Data:
Interval Top:8970 ft.# Of Holes:21
Interval Bottom:9149 ft.Hole Size:0.36 in.

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 9/1/2020                  Interval Top: 7013 ft.    Interval Bottom: 8654 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:1/7/2010Choke Size:0.375 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/21/2009
Treatment Summary:7 STAGES OF SLICKWATER FRAC WITH 25,063 BBLS OF 2% KCI AND 892,853 LBS OF 20/40 WHITE SAND
Tubing Size:2.375 in.Tubing Setting Depth:8516 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/16/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1121
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 624
CASING_PRESS 948
GRAVITY_OIL 0
MCF_GAS 624
TUBING_PRESS 1601
Perforation Data:
Interval Top:7013 ft.# Of Holes:198
Interval Bottom:8654 ft.Hole Size:0.36 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)3
Total Gas Produced (MCF)5122
GOR1707333
GOR DeterminationMCFE
Average BOE per Day2.425
Average MCFE per Day14.084

 Federal Financial Assurance  i

 Tribal Well  i No
