Wellbore #00 Wellbore Classification: GW Status: PR - 11/1/2021 Measured TD: 8841 ft. Vertical TD: 8776 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/1/2021 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20082555 | Expiration Date: | 6/9/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 246 FSL 1407 FEL | | Bottom Hole Location: | Sec:9 Twp: 6S 97W | Footage: 246 FSL 1407 FEL | | Proposed Depth/Form: | 8882 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-15 , Unit Acreage: , Drill Unit: |
| | |

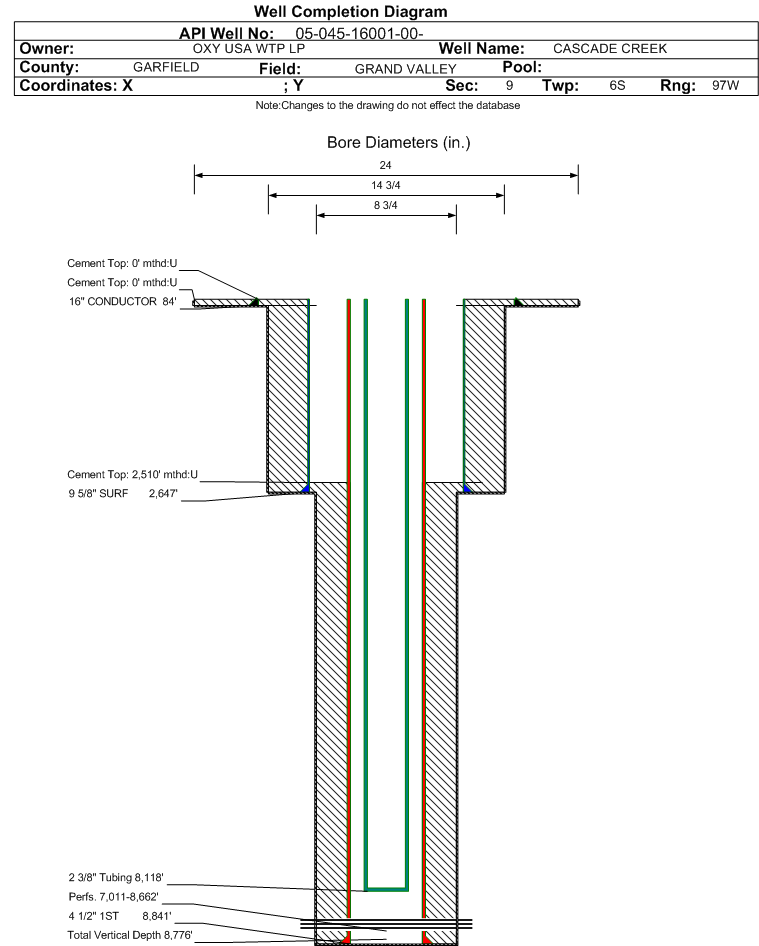

| Wellbore Completed | | Completion Date: | 8/26/2008 | | Spud Date: | 7/3/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 8841 ft. | Measured PB depth: | 8736 ft. | | True Vertical TD: | 8776 ft. | True Vertical PB depth: | 8671 ft. | | Top PZ Location: | Sec:9 Twp: 6S 97W | Footage: 228 FSL 1429 FEL | | Bottom Hole Location: | Sec:9 Twp: 6S 97W | Footage: 228 FSL 1429 FEL | | Log Types: | CBL-VDL, GR-CCL, RST INELASTIC CAPTURE MODE, RST SIGMA MODE, PROCESSED DATA SSLT-B | | Log Types: | CBL-VDL, GR-CCL, RST Inelastic Capture Mode, RST Sigma Mode, Processed Data SSLT-B | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 84 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: 4, Top: 0 ft., Bottom: 84 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2647 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 1464, Top: 0 ft., Bottom: 2647 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8841 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1835, Top: 2510 ft., Bottom: 8841 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2608 ft. | | N | N | | FORT UNION | 4519 ft. | 5898 ft. | N | N | | MESAVERDE | 5898 ft. | 6144 ft. | N | N | | WILLIAMS FORK | 6144 ft. | 8320 ft. | N | N | | CAMEO | 8320 ft. | 8772 ft. | N | N | | ROLLINS | 8772 ft. | | N | N |
Formation WFCM Formation Classification: OW Status: PR - 11/1/2021 Interval Top: 7011 ft. Interval Bottom: 8662 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 12/17/2009 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/12/2009 | | Treatment Summary: | 5 stages of slickwater frac with 22,669 bbls of frac fluid adn 552,848 lbs of white sand proppant |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8118 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1460 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1352 | | CASING_PRESS | 1379 | | MCF_GAS | 1352 | | TUBING_PRESS | 1107 |
| | Perforation Data: | | Interval Top: | 7011 ft. | # Of Holes: | 150 | | Interval Bottom: | 8662 ft. | Hole Size: | 0.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 2 |
| Total Gas Produced (MCF) | 5302 |
| GOR | 2651000 |
| GOR Determination | MCFE |
| Average BOE per Day | 2.508 |
| Average MCFE per Day | 14.564 |
| Federal Financial Assurance | i | |
|
|
