Wellbore #00 Wellbore Classification: GW Status: PR - 3/17/2008 Measured TD: 9460 ft. Vertical TD: 8990 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/17/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20081822 | Expiration Date: | 5/14/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 272 FSL 2221 FEL | | Bottom Hole Location: | Sec:7 Twp: 6S 94W | Footage: 272 FSL 2221 FEL | | Proposed Depth/Form: | 9438 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: , Drill Unit: |
| | |

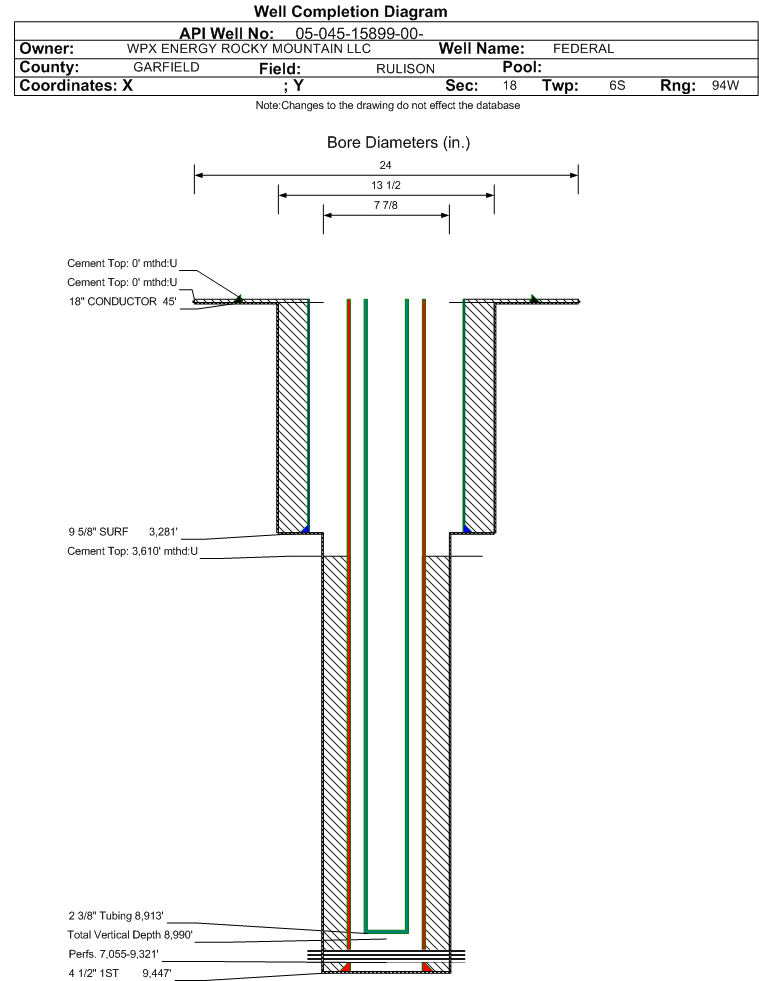

| Wellbore Completed | | Completion Date: | 9/19/2008 | | Spud Date: | 9/4/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 9460 ft. | Measured PB depth: | 9422 ft. | | True Vertical TD: | 8990 ft. | True Vertical PB depth: | 8952 ft. | | Top PZ Location: | Sec:7 Twp: 6S 94W | Footage: 299 FSL 2203 FEL | | Bottom Hole Location: | Sec:7 Twp: 6S 94W | Footage: 299 FSL 2203 FEL | | Log Types: | CBL, HIGH RES.INDUCTION, SPECTRAL DENSITY,DUAL SPACED NEUTRON, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 3281 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 714, Top: 0 ft., Bottom: 3281 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9447 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1093, Top: 3610 ft., Bottom: 9447 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 3039 ft. | | N | N | | MESAVERDE | 5679 ft. | | N | N | | CAMEO | 8416 ft. | | N | N | | ROLLINS | 9395 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 3/31/2009 Interval Top: 7055 ft. Interval Bottom: 9321 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/30/2008 | Choke Size: | 0.156 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/18/2008 | | Treatment Summary: | 3550 GALS 7.5% HCL; 940,804# 20/40 SAND; & 59,719 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8913 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/31/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BTU_GAS | 1085 | | CASING_PRESS | 2729 | | MCF_GAS | 1188 | | TUBING_PRESS | 2311 |
| | Perforation Data: | | Interval Top: | 7055 ft. | # Of Holes: | 121 | | Interval Bottom: | 9321 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 168 |
| Total Gas Produced (MCF) | 37764 |
| GOR | 224785 |
| GOR Determination | MCFE |
| Average BOE per Day | 18.300 |
| Average MCFE per Day | 106.140 |
| Federal Financial Assurance | i | Y |
|
|
