Wellbore #00 Wellbore Classification: GW Status: PR - 3/3/2008 Measured TD: 7550 ft. Vertical TD: 7103 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/3/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20081483 | Expiration Date: | 5/7/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 765 FSL 2034 FEL | | Bottom Hole Location: | Sec:30 Twp: 6S 95W | Footage: 914 FSL 2192 FEL | | Proposed Depth/Form: | 7594 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: , Drill Unit: |
| | |

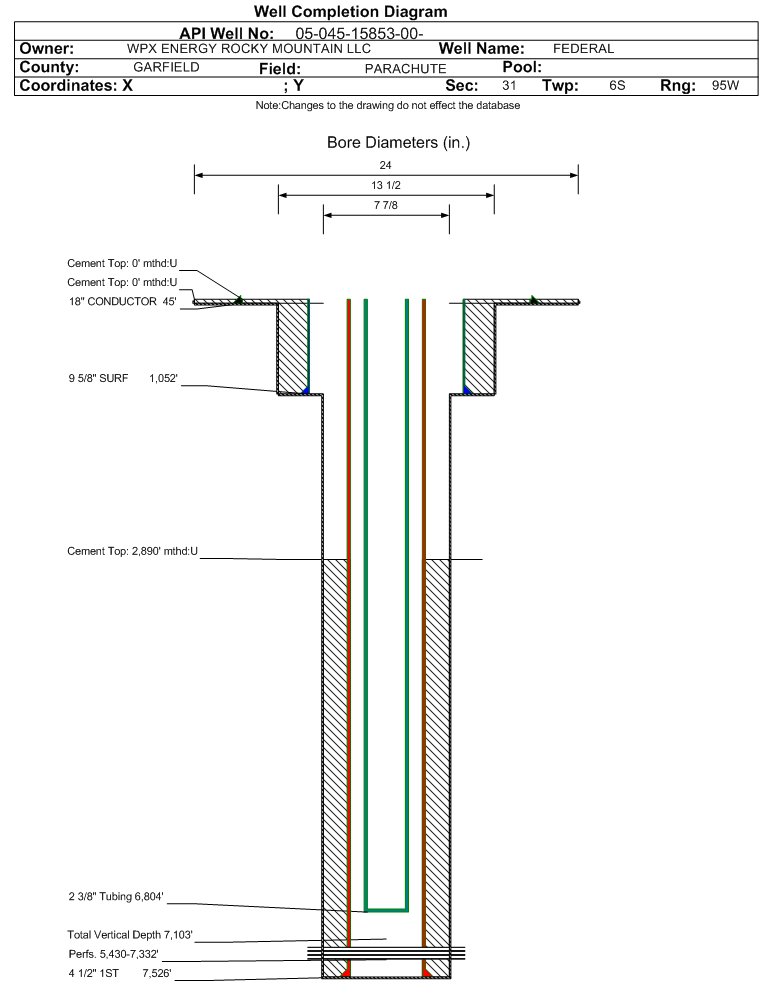

| Wellbore Completed | | Completion Date: | 10/28/2008 | | Spud Date: | 10/16/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 7550 ft. | Measured PB depth: | 7486 ft. | | True Vertical TD: | 7103 ft. | True Vertical PB depth: | 7039 ft. | | Top PZ Location: | Sec:30 Twp: 6S 95W | Footage: 844 FSL 2197 FEL | | Bottom Hole Location: | Sec:30 Twp: 6S 95W | Footage: 844 FSL 2197 FEL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1052 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 260, Top: 0 ft., Bottom: 1052 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7526 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 857, Top: 2890 ft., Bottom: 7526 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1883 ft. | | N | N | | MESAVERDE | 4188 ft. | | N | N | | CAMEO | 6886 ft. | | N | N | | ROLLINS | 7462 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 1/31/2009 Interval Top: 5430 ft. Interval Bottom: 7332 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 12/6/2008 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/4/2008 | | Treatment Summary: | 1976 GALS 7 1/2% HCL; 472799# 20/40 SAND; 13501 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6804 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/31/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BTU_GAS | 1061 | | CASING_PRESS | 740 | | GRAVITY_OIL | 54 | | MCF_GAS | 1105 | | TUBING_PRESS | 578 |
| | Perforation Data: | | Interval Top: | 5430 ft. | # Of Holes: | 111 | | Interval Bottom: | 7332 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 20 |
| Total Gas Produced (MCF) | 10630 |
| GOR | 531500 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.084 |
| Average MCFE per Day | 29.464 |
| Federal Financial Assurance | i | Y |
|
|
