Wellbore #00 Wellbore Classification: GW Status: PR - 4/16/2011 Measured TD: 7950 ft. Vertical TD: 7227 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/16/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20090554 | Expiration Date: | 4/13/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1880 FSL 817 FEL | | Bottom Hole Location: | Sec:30 Twp: 67S 95W | Footage: 1880 FSL 817 FEL | | Proposed Depth/Form: | 8010 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: , Drill Unit: |
| | |

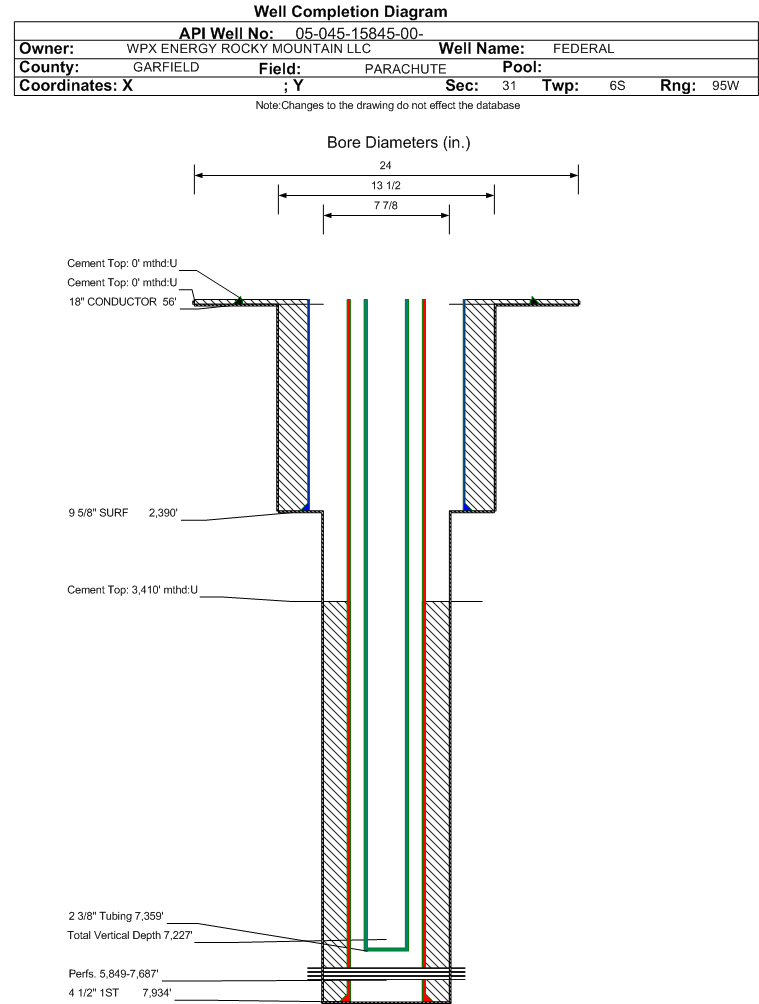

| Wellbore Completed | | Completion Date: | 4/6/2009 | | Spud Date: | 3/28/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 7950 ft. | Measured PB depth: | 7903 ft. | | True Vertical TD: | 7227 ft. | True Vertical PB depth: | 7180 ft. | | Top PZ Location: | Sec:30 Twp: 6S 95W | Footage: 1862 FNL 823 FEL | | Bottom Hole Location: | Sec:30 Twp: 6S 95W | Footage: 1862 FNL 836 FEL | | Log Types: | CBL, RESERVOIR MONITOR TOOL ELITE, MUD | | Log Types: | CBL, RESEVOIR MONITOR TOOL ELITE, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 56 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 56 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2390 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 524, Top: 0 ft., Bottom: 2390 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7934 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 871, Top: 3410 ft., Bottom: 7934 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 1903 ft. | | | | | WASATCH G | 1903 ft. | | N | N | | MESAVERDE | 4457 ft. | | | | | CAMEO | 7225 ft. | | | | | ROLLINS | 7791 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 11/30/2010 Interval Top: 5849 ft. Interval Bottom: 7687 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 6/7/2010 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 6/5/2010 | | Treatment Summary: | 4533 GALS 7 1/2% HCL; 959000# 30/50 SAND; 27060 BBLS SLICKWATER (SUMMARY). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7359 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/30/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1086 | | CALC_MCF_GAS | 1090 | | CASING_PRESS | 688 | | MCF_GAS | 1090 | | TUBING_PRESS | 419 |
| | Perforation Data: | | Interval Top: | 5849 ft. | # Of Holes: | 138 | | Interval Bottom: | 7687 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 25 |
| Total Gas Produced (MCF) | 15053 |
| GOR | 602120 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.184 |
| Average MCFE per Day | 41.661 |
| Federal Financial Assurance | i | Y |
|
|
