Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Old GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-15841		Well Classification: GW	Status: PR - 7/28/2010
Well Name/No:	FEDERAL #PA 444-30 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	62162
Facility Status:	PR	Status Date	7/28/2010
FacilityID:	295938	LocationID:	335491
County:	GARFIELD #045	Location:	NENE 31 6S95W 6
Field:	PARACHUTE - #67350	Elevation:	5517 ft.
Basin:	PICEANCE BASIN
Planned Location:	744FNL 853 FEL	Lat/Long: 39.486078 / -108.034107	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.486076 / -108.034109	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 7/28/2010 Measured TD: 7467 ft. Vertical TD: 7153 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 7/28/2010
Wellbore Permit			DIRECTIONAL
Permit #:	20090557	Expiration Date:	4/13/2010
Proposed Top PZ Location:	Sec: Twp:	Footage: 875 FSL 484 FEL
Bottom Hole Location:	Sec:30 Twp: 6S 95W	Footage: 875 FSL 484 FEL
Proposed Depth/Form:	7499 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:	5/7/2009
Spud Date:	4/27/2009	Spud Date Is:	ACTUAL
Measured TD:	7467 ft.	Measured PB depth:	7416 ft.
True Vertical TD:	7153 ft.	True Vertical PB depth:	7102 ft.
Top PZ Location:	Sec:30 Twp: 6S 95W	Footage: 865 FSL 478 FEL
Bottom Hole Location:	Sec:30 Twp: 6S 95W	Footage: 857 FSL 483 FEL
Log Types:	CBL, IND/DEN/NEU, MUD
Log Types:	CBL; RESERVOIR MONITOR TOOL ELITE

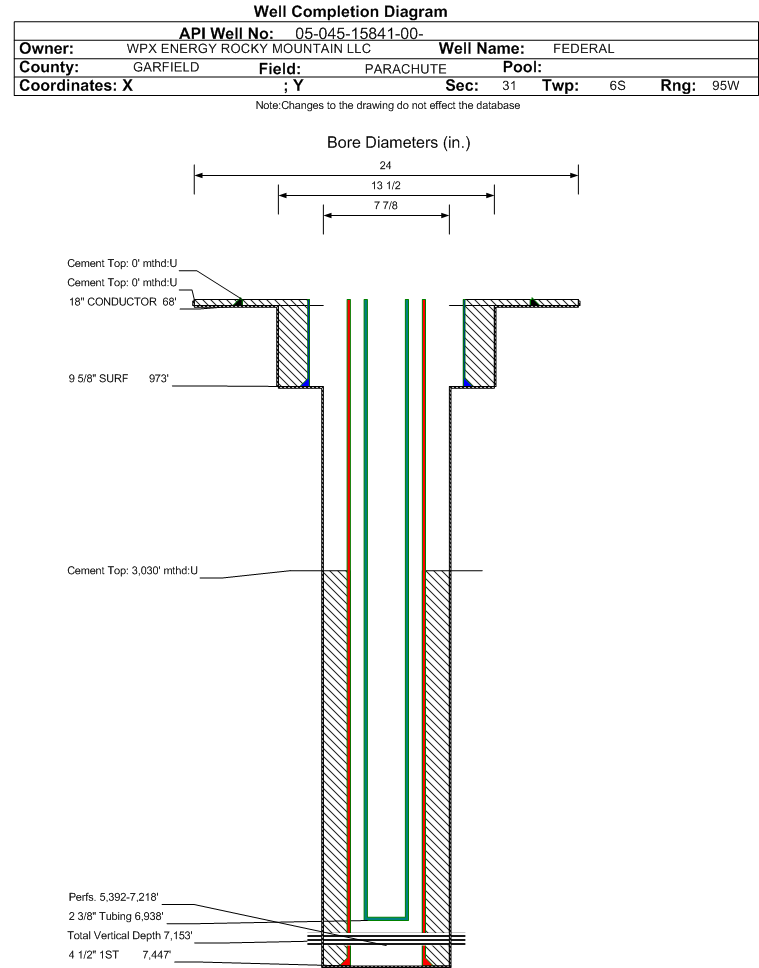

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 68 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 25, Top: 0 ft., Bottom: 68 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 973 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 275, Top: 0 ft., Bottom: 973 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7447 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 871, Top: 3030 ft., Bottom: 7447 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
GREELEY SAND	1888 ft.
WASATCH G	1888 ft.		N	N
MESAVERDE	4053 ft.
CAMEO	6759 ft.
ROLLINS	7333 ft.

Formation WFCM Formation Classification: GW Status: PR - 7/28/2010 Interval Top: 5392 ft. Interval Bottom: 7218 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	6/6/2010	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	6/4/2010
Treatment Summary:	4510 GALS 7 1/2% HCL; 835400# 30/50 SAND; 23506 BBLS SLICKWATER (SUMMARY)

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	6938 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	7/28/2010	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1086
CASING_PRESS	1436
MCF_GAS	877
TUBING_PRESS	1374

Perforation Data:
Interval Top:	5392 ft.	# Of Holes:	128
Interval Bottom:	7218 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

February 2025 - January 2026	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	28
Total Gas Produced (MCF)	15696
GOR	560571
GOR Determination	MCFE
Average BOE per Day	7.485
Average MCFE per Day	43.450

Federal Financial Assurance

Tribal Well
