Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-15840		Well Classification: GW	Status: PR - 7/8/2010
Well Name/No:	FEDERAL #PA 344-30 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	COC62162
Facility Status:	PR	Status Date	7/8/2010
FacilityID:	295964	LocationID:	335491
County:	GARFIELD #045	Location:	NENE 31 6S95W 6
Field:	PARACHUTE - #67350	Elevation:	5517 ft.
Basin:	PICEANCE BASIN
Planned Location:	754FNL 856 FEL	Lat/Long: 39.486052 / -108.034120	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.486052 / -108.034120	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 7/8/2010 Measured TD: 7341 ft. Vertical TD: 7143 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 7/8/2010
Wellbore Permit			DIRECTIONAL
Permit #:	20090558	Expiration Date:	4/13/2010
Proposed Top PZ Location:	Sec: Twp:	Footage: 464 FSL 373 FEL
Bottom Hole Location:	Sec:30 Twp: 6S 95W	Footage: 464 FSL 373 FEL
Proposed Depth/Form:	7400 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:	5/16/2009
Spud Date:	5/7/2009	Spud Date Is:	ACTUAL
Measured TD:	7341 ft.	Measured PB depth:	7293 ft.
True Vertical TD:	7143 ft.	True Vertical PB depth:	7095 ft.
Top PZ Location:	Sec:30 Twp: 6S 95W	Footage: 463 FSL 363 FEL
Bottom Hole Location:	Sec:30 Twp: 6S 95W	Footage: 451 FSL 370 FEL
Log Types:	CBL; RPM, MUD
Log Types:	CBL; RESEVOIR MONITOR TOOL ELITE

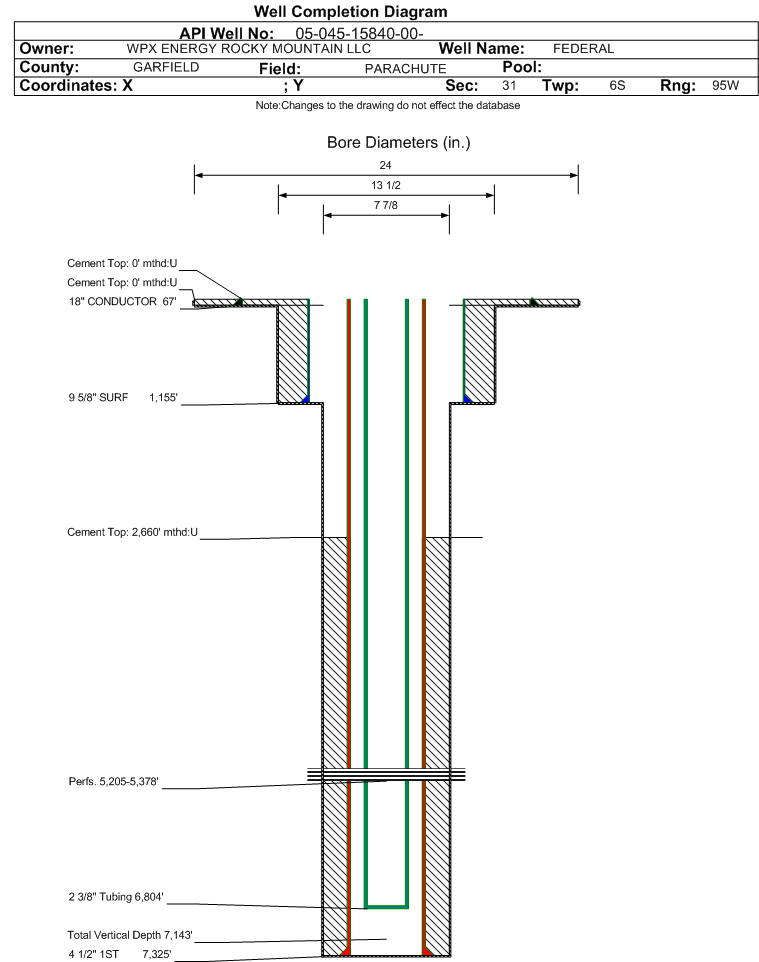

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 67 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 25, Top: 0 ft., Bottom: 67 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1155 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 320, Top: 0 ft., Bottom: 1155 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7325 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 850, Top: 2660 ft., Bottom: 7325 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
GREELEY SAND	1893 ft.
WASATCH G	1893 ft.		N	N
MESAVERDE	3951 ft.
CAMEO	6574 ft.
ROLLINS	7194 ft.

Formation WFCM Formation Classification: GW Status: PR - 7/8/2010 Interval Top: 5205 ft. Interval Bottom: 5378 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	6/6/2010	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	6/4/2010
Treatment Summary:	4553 GALS 7 1/2% HCL;876600# 30/50 SAND; 24156 BBLS SLICKWATER (SUMMARY)

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	6804 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	7/8/2010	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BTU_GAS	1084
CASING_PRESS	1409
MCF_GAS	986
TUBING_PRESS	1222

Perforation Data:
Interval Top:	5205 ft.	# Of Holes:	135
Interval Bottom:	5378 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	24
Total Gas Produced (MCF)	14358
GOR	598250
GOR Determination	MCFE
Average BOE per Day	6.846
Average MCFE per Day	39.725

Federal Financial Assurance

Tribal Well
