Wellbore #00 Wellbore Classification: GW Status: PR - 4/29/2009 Measured TD: 9125 ft. Vertical TD: 9045 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/29/2009 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20080971 | Expiration Date: | 4/10/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2000 FSL 1300 FWL | | Bottom Hole Location: | Sec:27 Twp: 6S 93W | Footage: 2000 FSL 1300 FWL | | Proposed Depth/Form: | 9103 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GRASS MESA UNIT | Unit Number: | COC56608E | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

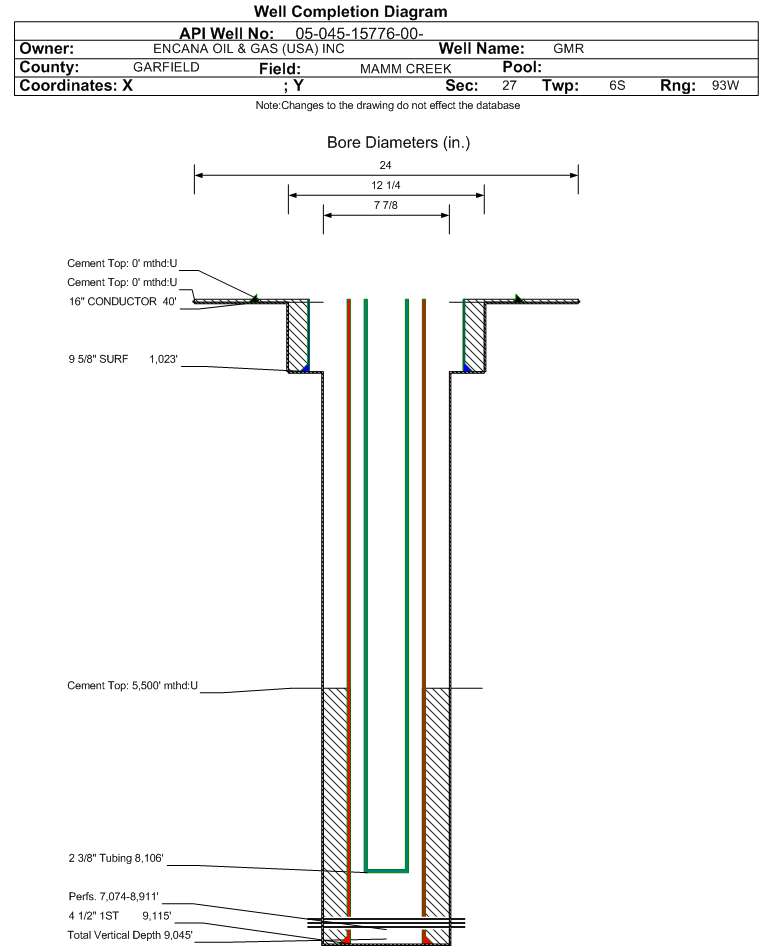

| Wellbore Completed | | Completion Date: | 11/21/2008 | | Spud Date: | 11/7/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 9125 ft. | Measured PB depth: | 9066 ft. | | True Vertical TD: | 9045 ft. | True Vertical PB depth: | 8986 ft. | | Top PZ Location: | Sec:27 Twp: 6S 93W | Footage: 2014 FSL 1302 FWL | | Bottom Hole Location: | Sec:27 Twp: 6S 93W | Footage: 2014 FSL 1302 FWL | | Log Types: | CBL/RST | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1023 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 332, Top: 0 ft., Bottom: 1023 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9115 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 654, Top: 5500 ft., Bottom: 9125 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 6000 ft. | N | N | | WILLIAMS FORK | 6000 ft. | 9125 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 4/29/2009 Interval Top: 7074 ft. Interval Bottom: 8911 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 4/5/2009 | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/30/1989 | | Treatment Summary: | STAGES 01-06 TREATED W/ A TOTAL OF: 65,059 BBLS SLICKWATER, & 1,367,100# 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8106 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/29/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 328 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 328 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1099 | | CASING_PRESS | 1575 | | MCF_GAS | 1099 | | TUBING_PRESS | 875 |
| | Perforation Data: | | Interval Top: | 7074 ft. | # Of Holes: | 135 | | Interval Bottom: | 8911 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 158 |
| Total Gas Produced (MCF) | 28277 |
| GOR | 178968 |
| GOR Determination | MCFE |
| Average BOE per Day | 13.793 |
| Average MCFE per Day | 79.978 |
| Federal Financial Assurance | i | Y |
|
|
