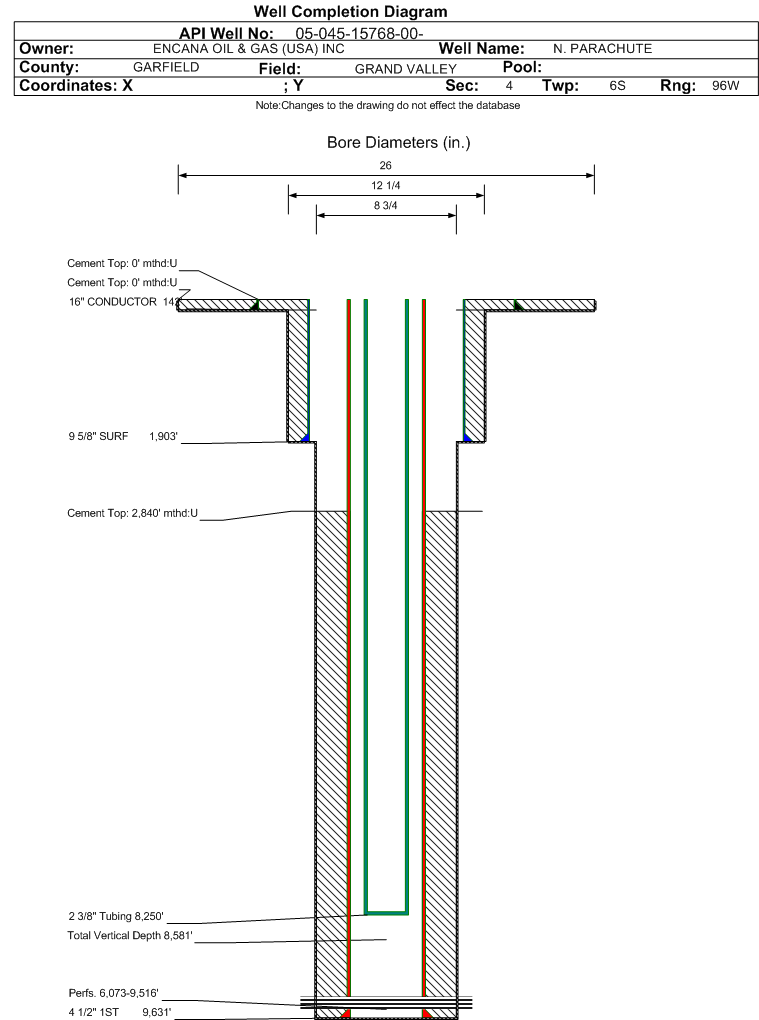

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-15768		Well Classification: GW Status: PR - 2/20/2010
Well Name/No:N. PARACHUTE #MF04B-3 CO4 696
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/20/2010
FacilityID:295479LocationID:311638
County:GARFIELD #045Location:NENW 4 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5816 ft.
Basin:PICEANCE BASIN
Planned Location:994FNL  2501 FWLLat/Long: 39.561689 / -108.111631Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.561696 / -108.111648Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/20/2010             Measured TD: 9655 ft.    Vertical TD: 8581 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/20/2010
Wellbore PermitDIRECTIONAL
Permit #:20080966 Expiration Date:4/10/2009
Proposed Top PZ Location:Sec: Twp: Footage: 507 FNL  101 FWL
Bottom Hole Location:Sec:3 Twp: 6S 96W Footage: 507 FNL  101 FWL
Proposed Depth/Form:10862 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15, 51, Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:11/30/2008
Spud Date:9/27/2008Spud Date Is:ACTUAL
Measured TD:9655 ft.Measured PB depth:9585 ft.
True Vertical TD:8581 ft.True Vertical PB depth:8511 ft.
Top PZ Location:Sec:3 Twp: 6S 96WFootage: 660 FNL  455 FWL
Bottom Hole Location:Sec:3 Twp: 6S 96WFootage: 660 FNL  455 FWL
Log Types:CBL, RST, MUD
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 142 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 142 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1903 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 421, Top: 0 ft., Bottom: 1903 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9631 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1436, Top: 2840 ft., Bottom: 9632 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK6021 ft.9575 ft.NN
ROLLINS9575 ft.9655 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 2/20/2010                 Interval Top: 6073 ft.    Interval Bottom: 9516 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:1/6/2010Choke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/9/2009
Treatment Summary:STAGES 01-12 TREATED WITH A TOTAL OF: 151875 BBLS SLICKWATER, 189600 LBS 100 SAND, 358100 LBS 30-50 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:8250 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/20/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1170
CALC_MCF_GAS 2550
CASING_PRESS 1713
MCF_GAS 2550
TUBING_PRESS 1004
Perforation Data:
Interval Top:6073 ft.# Of Holes:720
Interval Bottom:9516 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)94
Total Gas Produced (MCF)17872
GOR190127
GOR DeterminationMCFE
Average BOE per Day8.703
Average MCFE per Day50.475

 Federal Financial Assurance  i

 Tribal Well  i No
