COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-15735		Well Classification: GW Status: PR - 9/10/2008
Well Name/No:GGU RODREICK #41A-31-691
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/10/2008
FacilityID:295346LocationID:335276
County:GARFIELD #045Location:NWNE 31 6S91W 6
Field:MAMM CREEK - #52500Elevation:5928 ft.
Basin:PICEANCE BASIN
Planned Location:828FNL  1544 FELLat/Long: 39.489120 / -107.592510Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.489139 / -107.592535Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/10/2008             Measured TD: 7308 ft.    Vertical TD: 7160 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/10/2008
Wellbore PermitDIRECTIONAL
Permit #:20080847 Expiration Date:4/3/2009
Proposed Top PZ Location:Sec: Twp: Footage: 1107 FNL  495 FEL
Bottom Hole Location:Sec:31 Twp: 6S 91W Footage: 1107 FNL  495 FEL
Proposed Depth/Form:7394 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH UN Unit Number:COC 052447X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-9 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:5/27/2008
Spud Date:5/17/2008Spud Date Is:ACTUAL
Measured TD:7308 ft.Measured PB depth:7249 ft.
True Vertical TD:7160 ft.True Vertical PB depth:7101 ft.
Top PZ Location:Sec:31 Twp: 6S 91WFootage: 1089 FNL  505 FEL
Bottom Hole Location:Sec:31 Twp: 6S 91WFootage: 1089 FNL  505 FEL
Log Types:CBL; WEATHERFORD TEMPERATURE/ARRAY INDUCTION SFE/CPDDSN, HV, MUD

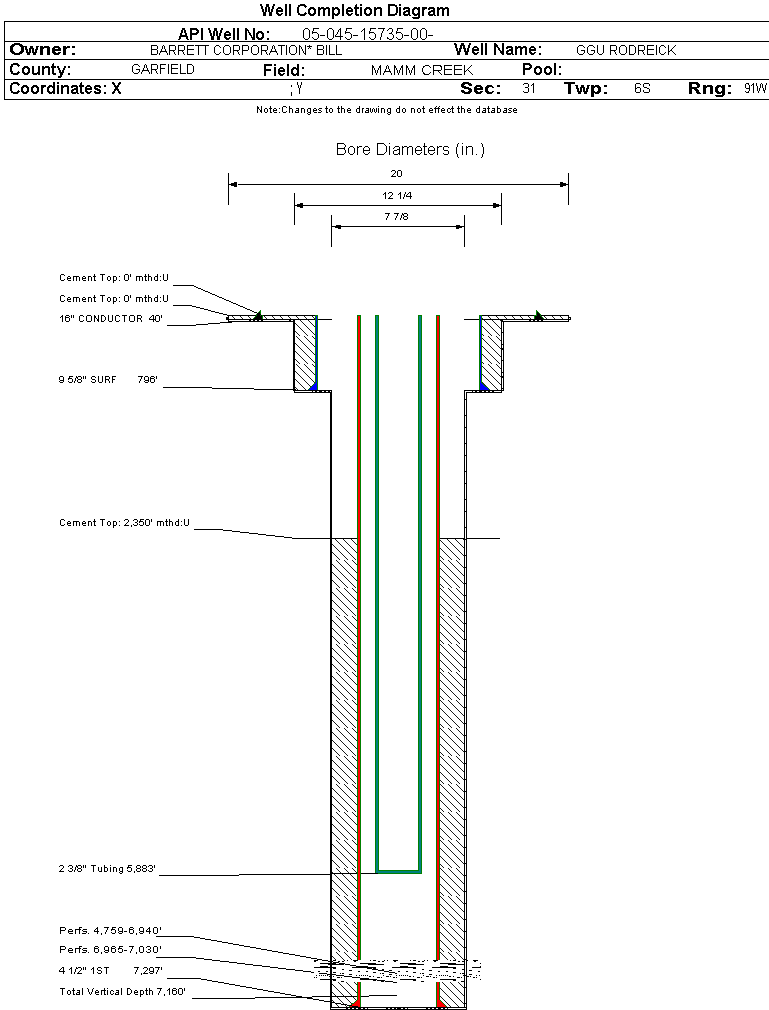

Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 796 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 240, Top: 0 ft., Bottom: 796 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7297 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1000, Top: 2350 ft., Bottom: 7297 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK COAL3389 ft.NN
ROLLINS6950 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 9/10/2008                 Interval Top: 6965 ft.    Interval Bottom: 7030 ft.

 Completed Information for Formation ROLLINS
1st Production Date:8/24/2008Choke Size:0.375 in.
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/5/2008
Treatment Summary:3357 BBLS. OF SLICKWATER; 62,855 LBS. OF 20-40 SAND; 6,785 LBS. OF 20-40 OPTIPROP; 375 LBS OF SLC 20-40 SAND
Tubing Size:2.375 in.Tubing Setting Depth:5883 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/10/2008Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 1
BTU_GAS 1170
CALC_GOR 105818
CASING_PRESS 1100
MCF_GAS 70
TUBING_PRESS 700
Perforation Data:
Interval Top:6965 ft.# Of Holes:16
Interval Bottom:7030 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 9/10/2008                 Interval Top: 4759 ft.    Interval Bottom: 6940 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:8/24/2008Choke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/5/2008
Treatment Summary:63,778 BBLS. OF SLICKWATER; 1,194,245 LBS. OF 20-40 SAND; 128,915 LBS. OF 20-40 OPTIPROP; 7125 LBS OF SLC 20-40 SAND
Tubing Size:2.375 in.Tubing Setting Depth:5883 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/10/2008Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 22
BBLS_OIL 13
BTU_GAS 1170
CALC_GOR 106408
CASING_PRESS 1100
MCF_GAS 1327
TUBING_PRESS 700
Perforation Data:
Interval Top:4759 ft.# Of Holes:177
Interval Bottom:6940 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)115
Total Gas Produced (MCF)14985
GOR130304
GOR DeterminationMCFE
Average BOE per Day7.390
Average MCFE per Day42.881

 Federal Financial Assurance  i

 Tribal Well  i No
