COGIS - WELL SCOUT CARD

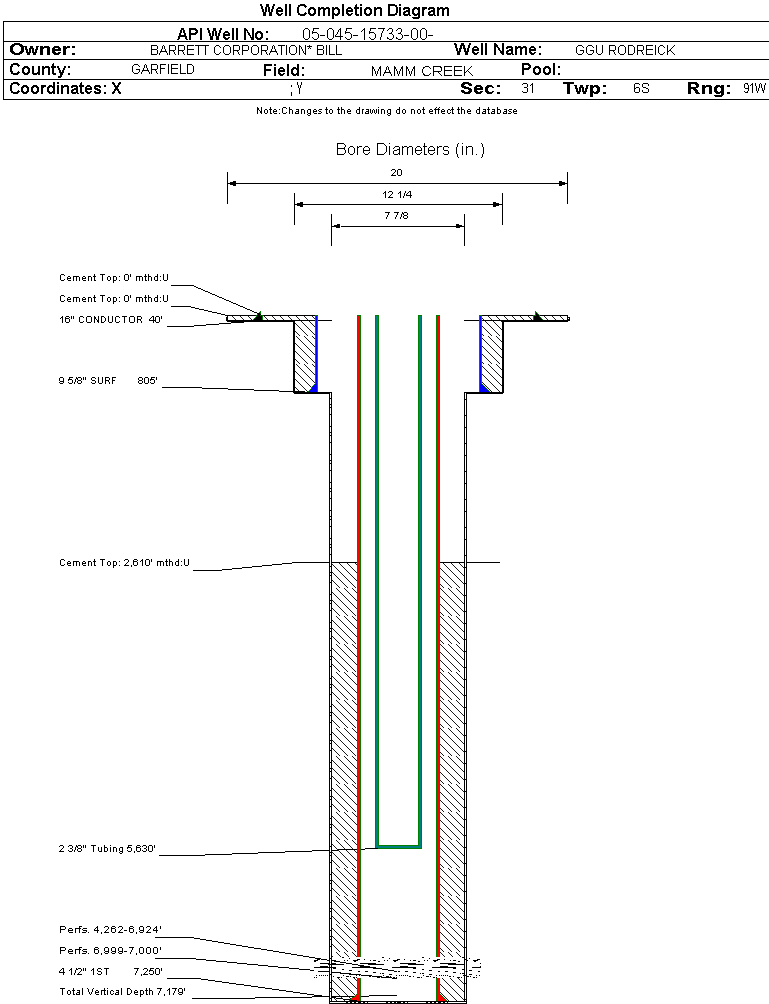

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-15733		Well Classification: GW Status: PR - 9/10/2008
Well Name/No:GGU RODREICK #31D-31-691
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/10/2008
FacilityID:295344LocationID:335276
County:GARFIELD #045Location:NWNE 31 6S91W 6
Field:MAMM CREEK - #52500Elevation:5928 ft.
Basin:PICEANCE BASIN
Planned Location:828FNL  1608 FELLat/Long: 39.489120 / -107.592730Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.489150 / -107.592762Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/10/2008             Measured TD: 7265 ft.    Vertical TD: 7179 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/10/2008
Wellbore PermitDIRECTIONAL
Permit #:20080845 Expiration Date:4/3/2009
Proposed Top PZ Location:Sec: Twp: Footage: 188 FNL  1921 FEL
Bottom Hole Location:Sec:31 Twp: 6S 91W Footage: 188 FNL  1921 FWL
Proposed Depth/Form:7259 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH UN Unit Number:COC 052447X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-9 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:7/11/2008
Spud Date:6/29/2008Spud Date Is:ACTUAL
Measured TD:7265 ft.Measured PB depth:7249 ft.
True Vertical TD:7179 ft.True Vertical PB depth:7163 ft.
Top PZ Location:Sec:31 Twp: 6S 91WFootage: 203 FNL  1928 FEL
Bottom Hole Location:Sec:31 Twp: 6S 91WFootage: 203 FNL  1928 FEL
Log Types:CBL; WEATHERFORD TEMPERATURE/ARRAY INDUCTION SFE/CPDDSN, HV, MUD
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 805 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 240, Top: 0 ft., Bottom: 805 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7250 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1000, Top: 2610 ft., Bottom: 7250 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3389 ft.NN
ROLLINS6950 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 9/10/2008                 Interval Top: 6999 ft.    Interval Bottom: 7000 ft.

 Completed Information for Formation ROLLINS
1st Production Date:8/24/2008Choke Size:0.375 in.
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/6/2008
Treatment Summary:2555 BBLS SLICKWATER, 49850 LBS OF 20/40 SAND, 3470 LBS OF 20/40 OPTIPROP, 2260 LBS OF SLC 20/40 SAND
Tubing Size:2.375 in.Tubing Setting Depth:5630 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/10/2008Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 1
BTU_GAS 1170
CALC_GOR 89833
CASING_PRESS 950
MCF_GAS 59
TUBING_PRESS 650
Perforation Data:
Interval Top:6999 ft.# Of Holes:2
Interval Bottom:7000 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 9/10/2008                 Interval Top: 4262 ft.    Interval Bottom: 6924 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:8/24/2008Choke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/6/2008
Treatment Summary:48,549 BBLS. OF SLICKWATER; 947,150 LBS. OF 20-40 SAND; 65,930 LBS. OF 20-40 OPTIPROP; 42,940 LBS OF SLC 20-40 SAND
Tubing Size:2.375 in.Tubing Setting Depth:5630 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/10/2008Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 22
BBLS_OIL 13
BTU_GAS 1170
CALC_GOR 90344
CASING_PRESS 950
MCF_GAS 1127
TUBING_PRESS 650
Perforation Data:
Interval Top:4262 ft.# Of Holes:160
Interval Bottom:6924 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)67
Total Gas Produced (MCF)10034
GOR149761
GOR DeterminationMCFE
Average BOE per Day4.918
Average MCFE per Day28.560

 Federal Financial Assurance  i

 Tribal Well  i No
