Wellbore #00 Wellbore Classification: GW Status: PR - 4/1/2024 Measured TD: 9240 ft. Vertical TD: 9138 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20080777 | Expiration Date: | 4/2/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1809 FNL 669 FWL | | Bottom Hole Location: | Sec:31 Twp: 6S 93W | Footage: 1809 FNL 669 FWL | | Proposed Depth/Form: | 9234 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CMEO , Formation: CAMEO , Order: 139-47 , Unit Acreage: 640, Drill Unit: ALL | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-47 , Unit Acreage: 640, Drill Unit: ALL |
| | |

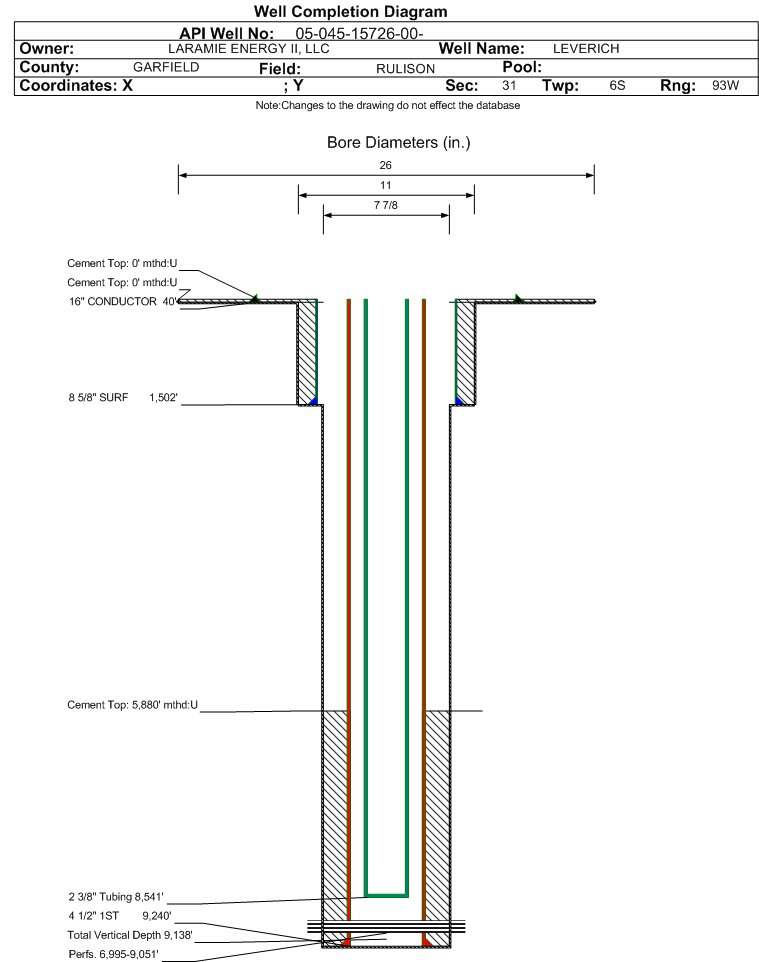

| Wellbore Completed | | Completion Date: | 8/6/2008 | | Spud Date: | 5/31/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 9240 ft. | Measured PB depth: | 9196 ft. | | True Vertical TD: | 9138 ft. | True Vertical PB depth: | 9094 ft. | | Top PZ Location: | Sec:31 Twp: 6S 93W | Footage: 1799 FNL 662 FWL | | Bottom Hole Location: | Sec:31 Twp: 6S 93W | Footage: 1799 FNL 662 FWL | | Log Types: | DSN/SD, HRI/GR/CAL/TEMP, CBL, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 1502 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 1502 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9240 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1040, Top: 5880 ft., Bottom: 9240 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 5335 ft. | | N | N | | ROLLINS | 9082 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 4/1/2024 Interval Top: 6995 ft. Interval Bottom: 9051 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/29/2008 | Choke Size: | 18.000 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/25/2008 | | Treatment Summary: | 1284945 GALS. SLICKWATER. 742900 20/40 WHITE SAND. 4500 GALS 15% HCL ACID. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8541 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/13/2008 | Test Method: | | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 80 | | BBLS_OIL | 0 | | BTU_GAS | 1100 | | CALC_GOR | 0 | | CASING_PRESS | 1150 | | MCF_GAS | 1317 |
| | Perforation Data: | | Interval Top: | 6995 ft. | # Of Holes: | 180 | | Interval Bottom: | 9051 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 90 |
| Total Gas Produced (MCF) | 20197 |
| GOR | 224411 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.785 |
| Average MCFE per Day | 56.762 |
| Federal Financial Assurance | i | |
|
|
