Wellbore #00 Wellbore Classification: GW Status: PR - 7/1/2018 Measured TD: 7634 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/1/2018 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20076940 | Expiration Date: | 4/2/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 839 FNL 660 FEL | | Bottom Hole Location: | Sec:2 Twp: 6S 97W | Footage: 839 FNL 660 FEL | | Proposed Depth/Form: | 10200 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-25 , Unit Acreage: 551, Drill Unit: N2 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: , Depth: 100 ft., Weight: 53 , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 2000 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 1000, Top: 0 ft., Bottom: 3000 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 10200 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 675, Top: 5500 ft., Bottom: 10200 ft. |
| | |

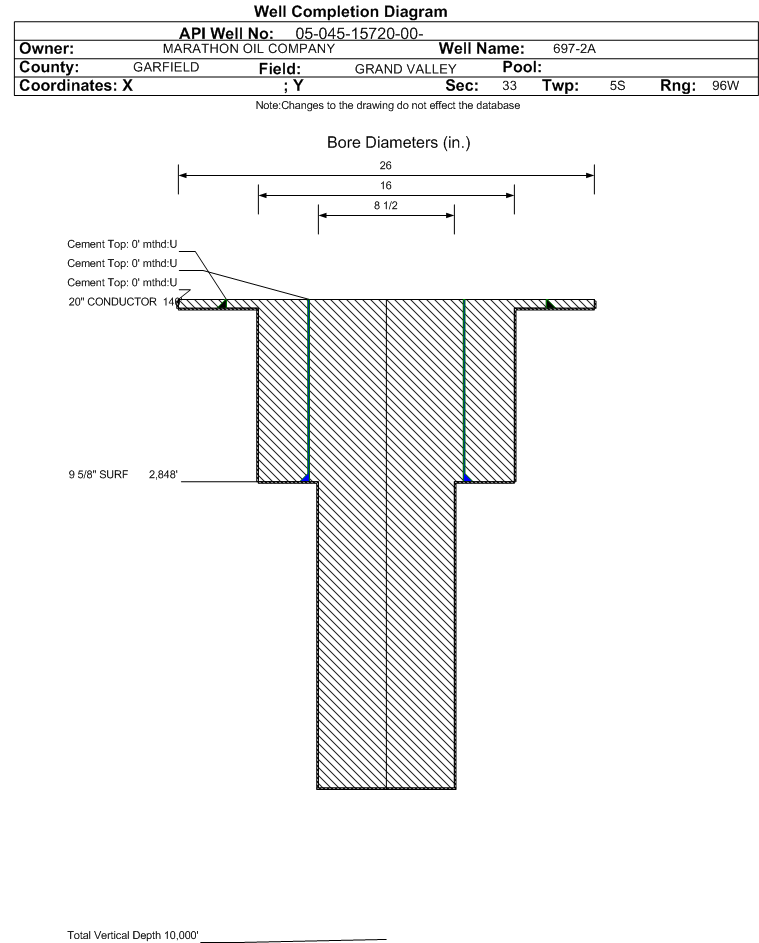

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 6/30/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 7634 ft. | Measured PB depth: | | | True Vertical TD: | | True Vertical PB depth: | | | Bottom Hole Location: | Sec:2 Twp: 6S 97W | Footage: 839 FNL 864 FEL | | Log Types: | CBL/GR/CCL,DIGITAL ACOUSTILOG COMPRESSIONAL WAVE SLOWNESS | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 140 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: , Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 16 in., Size: 9.625 in., Top: 0 ft., Depth: 2848 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1176, Top: 0 ft., Bottom: 2848 ft., Determination Method: CALC | | Casing: | String Type: OPEN HOLE, Hole Size: 8.5 in., Size: , Top: 2848 ft., Depth: 7634 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Additional Cement: | String Type: OPEN HOLE , Top: 2905 ft., Depth: 3250 ft., Bottom: 3250 ft., Sacks: 350, Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 4757 ft. | | N | N | | FORT UNION | 5146 ft. | | N | N | | MESAVERDE | 6544 ft. | | N | N | | No formation data to display. |
Sidetrack #01 Wellbore Classification: GW Status: PR - 5/17/2018 Measured TD: 9900 ft. Vertical TD: 9786 ft.| Wellbore Data for Sidetrack #01 | Wellbore Classification: GW PR - 5/17/2018 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20088302 | Expiration Date: | 9/13/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 839 FNL 660 FEL | | Bottom Hole Location: | Sec:2 Twp: 6S 97W | Footage: 839 FNL 660 FEL | | Proposed Depth/Form: | 10200 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-25 , Unit Acreage: 551, Drill Unit: N2 | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: , Depth: 100 ft., Weight: 53 , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 100 ft. | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 2000 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 1000, Top: 0 ft., Bottom: 2000 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 10200 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 675, Top: 5500 ft., Bottom: 10200 ft. |
| | |
| Wellbore Completed | | Completion Date: | 12/2/2008 | | Spud Date: | 6/30/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 9900 ft. | Measured PB depth: | 9868 ft. | | True Vertical TD: | 9786 ft. | True Vertical PB depth: | 9765 ft. | | Top PZ Location: | Sec:2 Twp: 6S 97W | Footage: 844 FNL 822 FWL | | Bottom Hole Location: | Sec:2 Twp: 6S 97W | Footage: 862 FNL 677 FWL | | Log Types: | NO LOGS RUN YET AND NO FORMATION TOPS YET. | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 140 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: 0 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 16 in., Size: 9.625 in., Top: 0 ft., Depth: 2848 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 2221, Top: 0 ft., Bottom: 2848 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 4.5 in., Top: 0 ft., Depth: 9869 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 835, Top: , Bottom: 9869 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 4832 ft. | | N | N | | FORT UNION | 5162 ft. | | N | N | | WILLIAMS FORK | 6622 ft. | | N | N | | CAMEO | 9233 ft. | | N | N | | ROLLINS | 9726 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 5/17/2018 Interval Top: 7960 ft. Interval Bottom: 9490 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 5/17/2018 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 5/10/2018 | Treatment End Date: | 5/13/2018 | | Treatment Summary: | 6-stage plug-and-perf completion;
48074 total bbls fluid pumped: 48003 bbls recycled water (slickwater) and 71 bbls 7.5% HCl acid;
no proppant used. | | Total fluid used in treatment (bbls): | 48074 | Max pressure during treatment (psi): | 6874 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 6 | | Total acid used in treatment (bbls): | 71 | Min frac gradient (psi/ft): | 0.54 | | Recycled water used in treatment (bbls): | 48003 | Total flowback volume recovered (bbls): | 24104 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 9264 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/17/2018 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 2209 | | BTU_GAS | 1080 | | CALC_BBLS_H2O | 2209 | | CALC_MCF_GAS | 979 | | CASING_PRESS | 1050 | | MCF_GAS | 979 |
| | Perforation Data: | | Interval Top: | 7960 ft. | # Of Holes: | 162 | | Interval Bottom: | 9490 ft. | Hole Size: | 0.37 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 78 |
| Total Gas Produced (MCF) | 42067 |
| GOR | 539320 |
| GOR Determination | MCFE |
| Average BOE per Day | 20.076 |
| Average MCFE per Day | 116.424 |
| Federal Financial Assurance | i | |
|
|
