Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-15694		Well Classification: GW	Status: PR - 10/19/2008
Well Name/No:	Savage #RWF 334-29R (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PR	Status Date	10/19/2008
FacilityID:	295183	LocationID:	335243
County:	GARFIELD #045	Location:	NESE 29 6S94W 6
Field:	RULISON - #75400	Elevation:	5288 ft.
Basin:	PICEANCE BASIN
Planned Location:	1994FSL 670 FEL	Lat/Long: 39.494508 / -107.904651	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.494508 / -107.904646	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: AB - 8/17/1960 Measured TD: 6767 ft. Vertical TD: 6490 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW AB - 8/17/1960
Wellbore Permit			DIRECTIONAL
Permit #:	20080419	Expiration Date:	3/24/2009
Proposed Top PZ Location:	Sec: Twp:	Footage: 1100 FSL 1964 FEL
Bottom Hole Location:	Sec:29 Twp: 6S 94W	Footage: 1100 FSL 1964 FEL
Proposed Depth/Form:	7877 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 320, Drill Unit: S2
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7877 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:	Sacks: , Top: , Bottom:

Wellbore Completed
Completion Date:	10/19/2008
Spud Date:	8/16/2008	Spud Date Is:	ACTUAL
Measured TD:	6767 ft.	Measured PB depth:	2935 ft.
True Vertical TD:	6490 ft.	True Vertical PB depth:
Bottom Hole Location:	Sec:29 Twp: 6S 94W	Footage: 1159 FSL 1792 FEL
Log Types:	NONE

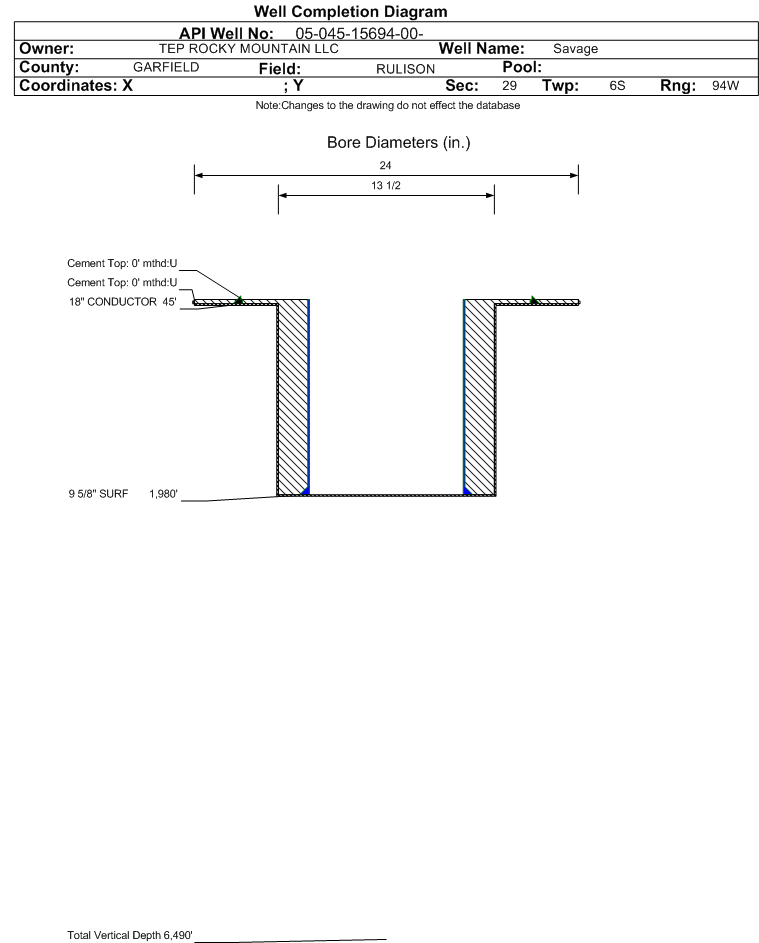

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: ACTUAL
Cement:	Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1980 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:	Sacks: 671, Top: 0 ft., Bottom: 1980 ft., Determination Method: CALC
Casing:	String Type: OPEN HOLE, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:	Sacks: 340, Top: 2935 ft., Bottom: 3535 ft., Determination Method: CALC
No formation data to display.

Sidetrack #01 Wellbore Classification: GW Status: PR - 10/19/2008 Measured TD: 7982 ft. Vertical TD: 7909 ft.

Wellbore Data for Sidetrack #01		Wellbore Classification: GW PR - 10/19/2008
Wellbore Permit			DIRECTIONAL
Permit #:	20087308	Expiration Date:	12/25/2009
Proposed Top PZ Location:	Sec: Twp:	Footage: 1114 FSL 1883 FEL
Bottom Hole Location:	Sec:29 Twp: 6S 94W	Footage: 1114 FSL 1883 FEL
Proposed Depth/Form:	7914 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 320, Drill Unit: S/2

Wellbore Completed
Completion Date:	10/31/2008
Spud Date:	8/16/2008	Spud Date Is:	ACTUAL
Measured TD:	7982 ft.	Measured PB depth:	7982 ft.
True Vertical TD:	7909 ft.	True Vertical PB depth:
Top PZ Location:	Sec:29 Twp: 6S 94W	Footage: 1077 FSL 1850 FEL
Bottom Hole Location:	Sec:29 Twp: 6S 94W	Footage: 1077 FSL 1850 FEL
Log Types:	CBL, RMTE, MUDLOG
Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 48 , Citings Type: ACTUAL
Cement:	Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1980 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:	Sacks: 524, Top: 0 ft., Bottom: 1980 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7961 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 1357, Top: 2630 ft., Bottom: 7961 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	1665 ft.		N	N
MESAVERDE	4050 ft.		N	N
CAMEO	6922 ft.		N	N
ROLLINS	7861 ft.		N	N

Formation WFCM Formation Classification: GW Status: PR - 10/19/2008 Interval Top: 6410 ft. Interval Bottom: 7807 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	12/7/2008	Choke Size:	0.172 in.
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	12/5/2008
Treatment Summary:	2000 GALS 7.5% HCL; 363500# 20/40 SAND; 11634 BBLS SLICKWATER

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7240 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	2/18/2009	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BBLS_H2O	0
BTU_GAS	1033
CASING_PRESS	1199
MCF_GAS	1056
TUBING_PRESS	1079

Perforation Data:
Interval Top:	6410 ft.	# Of Holes:	84
Interval Bottom:	7807 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	24
Total Gas Produced (MCF)	17030
GOR	709583
GOR Determination	MCFE
Average BOE per Day	8.085
Average MCFE per Day	46.922

Federal Financial Assurance

Tribal Well
