COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-15677		Well Classification: GW Status: PR - 1/11/2010
Well Name/No:FEDERAL #RWF 441-17
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC27867
Facility Status:PRStatus Date1/11/2010
FacilityID:295159LocationID:335777
County:GARFIELD #045Location:SENE 17 6S94W 6
Field:RULISON - #75400Elevation:5816 ft.
Basin:PICEANCE BASIN
Planned Location:2229FNL  465 FELLat/Long: 39.526347 / -107.904633Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.526347 / -107.904604Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/11/2010             Measured TD: 9008 ft.    Vertical TD: 8629 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/11/2010
Wellbore PermitDIRECTIONAL
Permit #:20088075 Expiration Date:2/11/2010
Proposed Top PZ Location:Sec: Twp: Footage: 237 FNL  847 FEL
Bottom Hole Location:Sec:17 Twp: 6S 94W Footage: 237 FNL  847 FEL
Proposed Depth/Form:8908 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:8/3/2009
Spud Date:7/19/2009Spud Date Is:ACTUAL
Measured TD:9008 ft.Measured PB depth:8953 ft.
True Vertical TD:8629 ft.True Vertical PB depth:8574 ft.
Top PZ Location:Sec:17 Twp: 6S 94WFootage: 217 FNL  832 FEL
Bottom Hole Location:Sec:17 Twp: 6S 94WFootage: 217 FNL  832 FEL
Log Types:CBL, HIGH RES INDUCTION, SPEC DENSITY, DUAL SPACED NEUTRON, MUD

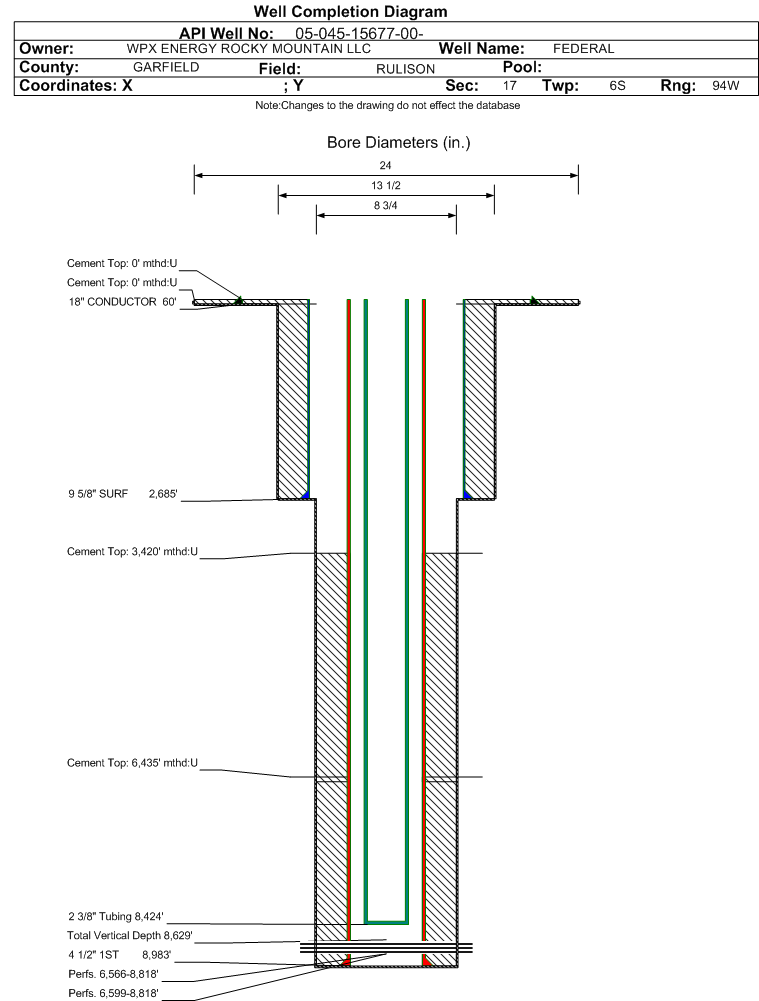

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 22, Top: 0 ft., Bottom: 60 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2685 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 660, Top: 0 ft., Bottom: 2685 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8983 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1315, Top: 3420 ft., Bottom: 8983 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 6435 ft., Bottom: 6500 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G2452 ft.NN
MESAVERDE5192 ft.NN
CAMEO8003 ft.NN
ROLLINS8903 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 2/1/2011                  Interval Top: 6599 ft.    Interval Bottom: 8818 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:9/11/2009Choke Size:0.141 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/9/2009
Treatment Summary:3993 GALS 7.5% HCL, 636600# 20/40 SAND, 19233 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:8424 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/31/2009Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1103
CASING_PRESS 2207
MCF_GAS 810
TUBING_PRESS 2014
Perforation Data:
Interval Top:6599 ft.# Of Holes:147
Interval Bottom:8818 ft.Hole Size:0.35 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/31/2009                Interval Top: 6566 ft.    Interval Bottom: 8818 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:9/11/2009Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:9/9/2009
Treatment Summary:3993 GALS 7 1/2 % HCL; 636600 # 20/40 SAND; 19233 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:8424 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/31/2009Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1103
CASING_PRESS 2207
MCF_GAS 810
TUBING_PRESS 2014
Perforation Data:
Interval Top:6566 ft.# Of Holes:147
Interval Bottom:8818 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)41
Total Gas Produced (MCF)23082
GOR562975
GOR DeterminationMCFE
Average BOE per Day11.019
Average MCFE per Day63.913

 Federal Financial Assurance  i Y

 Tribal Well  i No
