COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-15606		Well Classification: DA Status: PA - 11/6/2012
Well Name/No:SGU #CP08D-34 H34 49
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:ENCANA OIL & GAS (USA) INC - 100185
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC61138
Facility Status:PAStatus Date11/6/2012
FacilityID:294836LocationID:335941
County:GARFIELD #045Location:SENE 34 4S96W 6
Field:WILDCAT - #99999Elevation:8291 ft.
Basin:PICEANCE BASIN
Planned Location:2423FNL  177 FELLat/Long: 39.659428 / -108.146003Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.659427 / -108.145997Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: PA - 11/6/2012             Measured TD: 8147 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 11/6/2012
Wellbore PermitDIRECTIONAL
Permit #:20076954 Expiration Date:3/4/2009
Proposed Top PZ Location:Sec: Twp: Footage: 2310 FNL  330 FEL
Bottom Hole Location:Sec:34 Twp: 4S 96W Footage: 2310 FNL  330 FEL
Proposed Depth/Form:12754 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:STORY GULCH UNI Unit Number:COC69333X
Formation And Spacing:Code: SEGO , Formation: SEGO , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 20 in., Top: , Depth: 90 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 6, Top: 0 ft., Bottom: 90 ft.
Casing:String Type: SURF, Hole Size: 17.5 in., Size: 10.75 in., Top: , Depth: 2000 ft., Weight: 40.5 , Citings Type: PLANNED
Cement:Sacks: 1319, Top: 0 ft., Bottom: 2000 ft.
Casing:String Type: 1ST, Hole Size: 9.875 in., Size: 7 in., Top: , Depth: 8245 ft., Weight: 23/26 , Citings Type: PLANNED
Cement:Sacks: 1037, Top: 1800 ft., Bottom: 8245 ft.
Casing:String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: , Depth: 12754 ft., Weight: 13.5 , Citings Type: PLANNED
Cement:Sacks: 310, Top: 8045 ft., Bottom: 12754 ft.
Wellbore Completed
Completion Date:N/A
Spud Date:7/17/2008Spud Date Is:ACTUAL
Measured TD:8147 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:

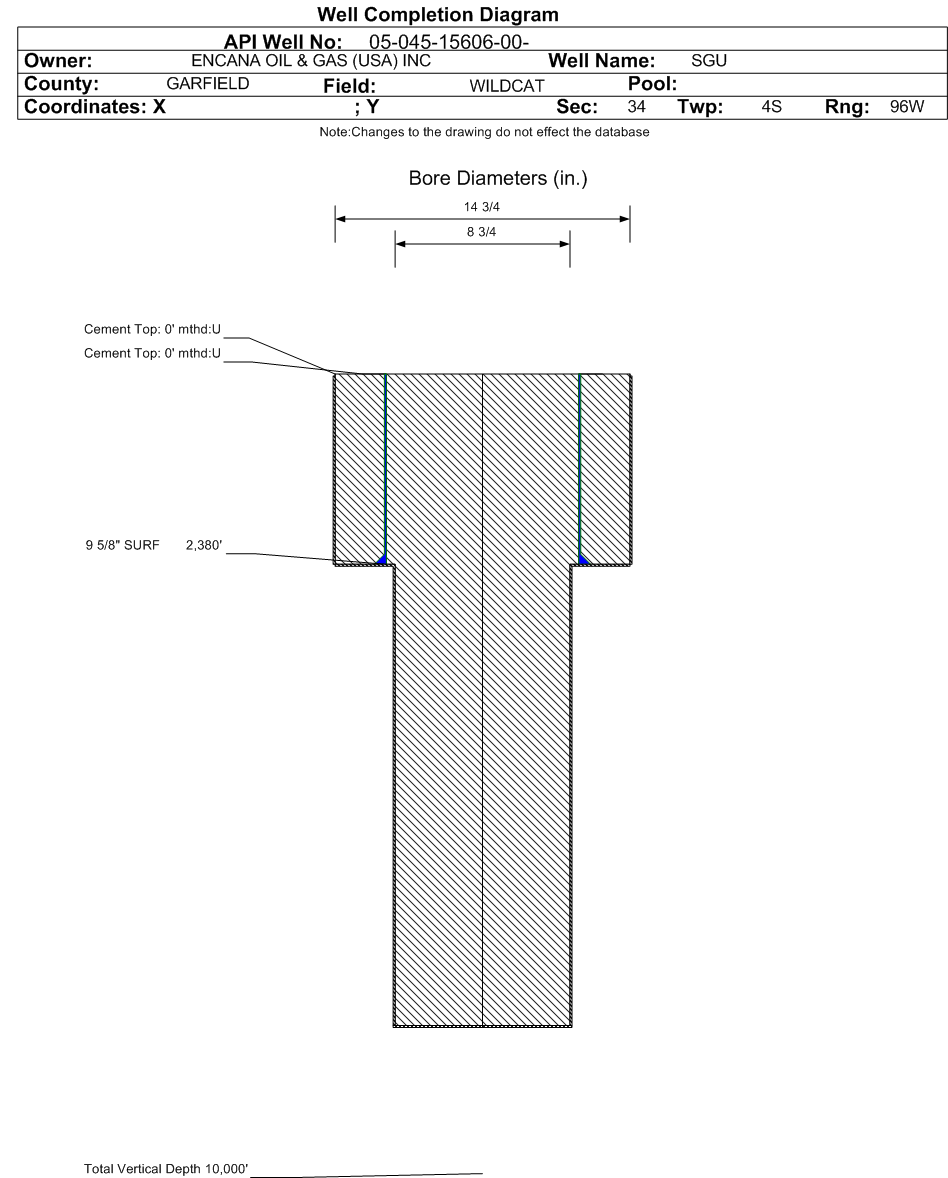

Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 2380 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 1250, Top: 0 ft., Bottom: 2380 ft., Determination Method: VISU
Casing:String Type: OPEN HOLE, Hole Size: 8.75 in., Size: , Top: , Depth: 8147 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH2992 ft.
WILLIAMS FORK8009 ft.
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/06/2012
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
