Wellbore #00 Wellbore Classification: GW Status: PR - 6/1/2024 Measured TD: 6619 ft. Vertical TD: 6370 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20077125 | Expiration Date: | 2/25/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2440 FSL 660 FWL | | Bottom Hole Location: | Sec:20 Twp: 7S 95W | Footage: 2440 FSL 660 FWL | | Proposed Depth/Form: | 6619 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 139-48 , Unit Acreage: 640, Drill Unit: ALL | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-48 , Unit Acreage: 640, Drill Unit: ALL |
| | |

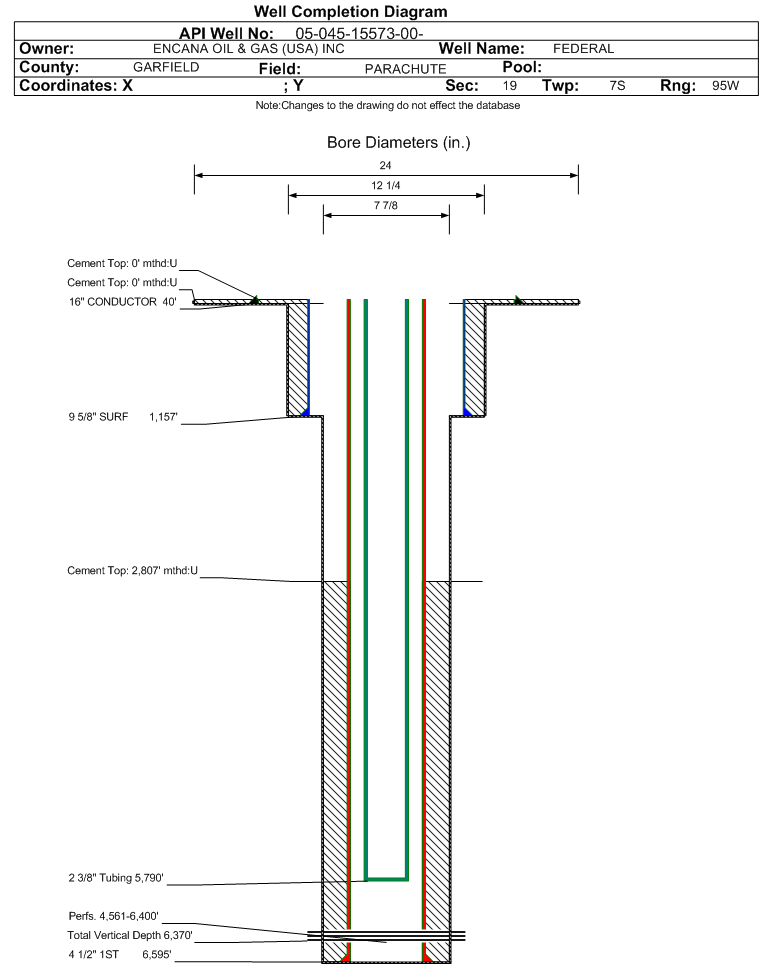

| Wellbore Completed | | Completion Date: | 3/30/2008 | | Spud Date: | 3/22/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 6619 ft. | Measured PB depth: | 6549 ft. | | True Vertical TD: | 6370 ft. | True Vertical PB depth: | 6300 ft. | | Top PZ Location: | Sec:20 Twp: 7S 95W | Footage: 2424 FSL 624 FWL | | Bottom Hole Location: | Sec:20 Twp: 7S 95W | Footage: 2424 FSL 624 FWL | | Log Types: | CBL, RST | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1157 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 650, Top: 0 ft., Bottom: 1166 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6595 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 775, Top: 2807 ft., Bottom: 6594 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3936 ft. | N | N | | WILLIAMS FORK | 3937 ft. | 6448 ft. | N | N | | ROLLINS | 6449 ft. | 6619 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 6/1/2024 Interval Top: 4561 ft. Interval Bottom: 6400 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 8/31/2008 | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/19/2008 | | Treatment Summary: | STAGES 01-06, 2-B, 3-B TREATED W/A TOTAL OF 47,006 BBLS SLICKWATER & 1,206,700# 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5790 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/4/2008 | Test Method: | FLOWING | | Hours Tested: | 20 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 715 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 858 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 650 | | CASING_PRESS | 1700 | | MCF_GAS | 542 | | TUBING_PRESS | 800 |
| | Perforation Data: | | Interval Top: | 4561 ft. | # Of Holes: | 192 | | Interval Bottom: | 6400 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 25 |
| Total Gas Produced (MCF) | 25417 |
| GOR | 1016680 |
| GOR Determination | MCFE |
| Average BOE per Day | 12.074 |
| Average MCFE per Day | 70.031 |
| Federal Financial Assurance | i | Y |
|
|
