Wellbore #00 Wellbore Classification: GW Status: PR - 9/20/2008 Measured TD: 6544 ft. Vertical TD: 6286 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/20/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20077127 | Expiration Date: | 2/25/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2440 FSL 1980 FEL | | Bottom Hole Location: | Sec:19 Twp: 7S 95W | Footage: 2440 FSL 1980 FEL | | Proposed Depth/Form: | 6544 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 440-45 , Unit Acreage: 320, Drill Unit: S2 | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-45 , Unit Acreage: 320, Drill Unit: S2 |
| | |

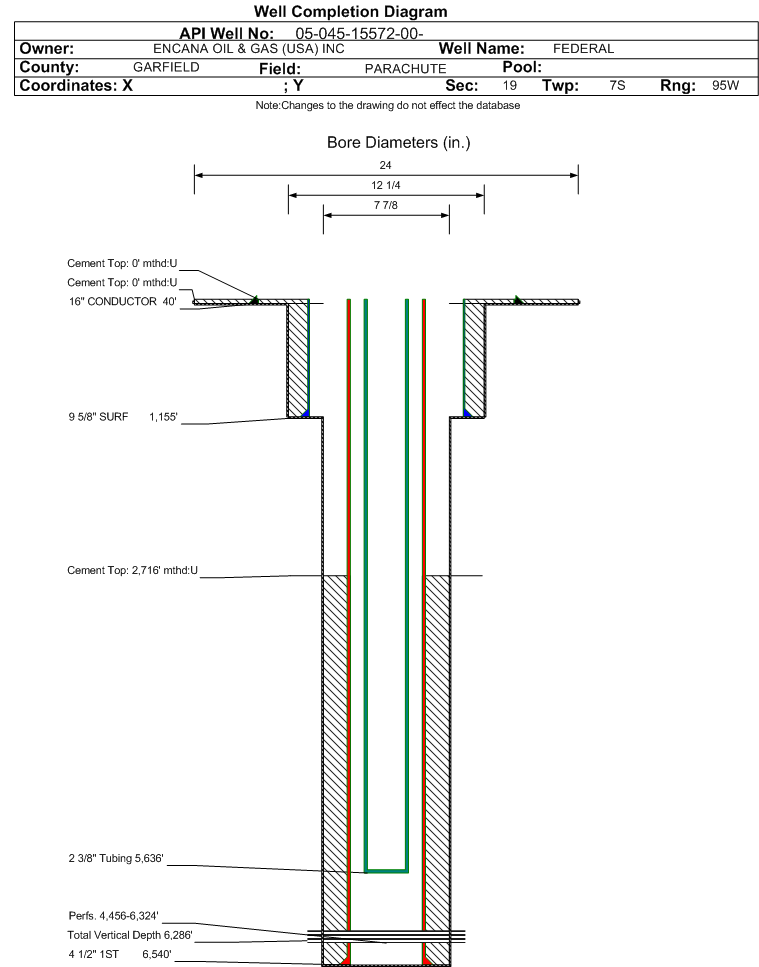

| Wellbore Completed | | Completion Date: | 4/26/2008 | | Spud Date: | 4/16/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 6544 ft. | Measured PB depth: | 6519 ft. | | True Vertical TD: | 6286 ft. | True Vertical PB depth: | 6261 ft. | | Top PZ Location: | Sec:19 Twp: 7S 95W | Footage: 2460 FSL 1996 FEL | | Bottom Hole Location: | Sec:19 Twp: 7S 95W | Footage: 2460 FSL 1996 FEL | | Log Types: | RST, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1155 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 590, Top: 0 ft., Bottom: 1155 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6540 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 793, Top: 2716 ft., Bottom: 6540 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3889 ft. | N | N | | WILLIAMS FORK | 3890 ft. | 6360 ft. | N | N | | ROLLINS | 6361 ft. | 6544 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 9/20/2008 Interval Top: 4456 ft. Interval Bottom: 6324 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 9/1/2008 | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/11/2008 | | Treatment Summary: | STAGES 01-06 TREATED WITH A TOTAL OF 46,337 BBLS OF SLICKWATER AND 1,137,000 LBS 20/40 SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5636 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/20/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 388 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 388 | | CALC_MCF_GAS | 1539 | | CASING_PRESS | 1525 | | MCF_GAS | 1539 | | TUBING_PRESS | 1000 |
| | Perforation Data: | | Interval Top: | 4456 ft. | # Of Holes: | 140 | | Interval Bottom: | 6324 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 16 |
| Total Gas Produced (MCF) | 17899 |
| GOR | 1118687 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.490 |
| Average MCFE per Day | 49.242 |
| Federal Financial Assurance | i | Y |
|
|
