COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-15510		Well Classification: GW Status: PR - 2/28/2010
Well Name/No:SAVAGE #PA 523-4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:CACOC1015
Facility Status:PRStatus Date2/28/2010
FacilityID:294527LocationID:334813
County:GARFIELD #045Location:NESW 4 7S95W 6
Field:PARACHUTE - #67350Elevation:5585 ft.
Basin:PICEANCE BASIN
Planned Location:1513FSL  1444 FWLLat/Long: 39.463497 / -108.006881Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.463498 / -108.006881Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/28/2010             Measured TD: 6918 ft.    Vertical TD: 6859 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/28/2010
Wellbore PermitDIRECTIONAL
Permit #:20077035 Expiration Date:2/13/2009
Proposed Top PZ Location:Sec: Twp: Footage: 2055 FSL  1922 FWL
Bottom Hole Location:Sec:4 Twp: 7S 95W Footage: 2055 FSL  1922 FWL
Proposed Depth/Form:7001 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-35 , Unit Acreage: 640, Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: PLANNED
Cement:Sacks: 25, Top: 0 ft., Bottom: 45 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1834 ft., Weight: 32.3 , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 1834 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7001 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:

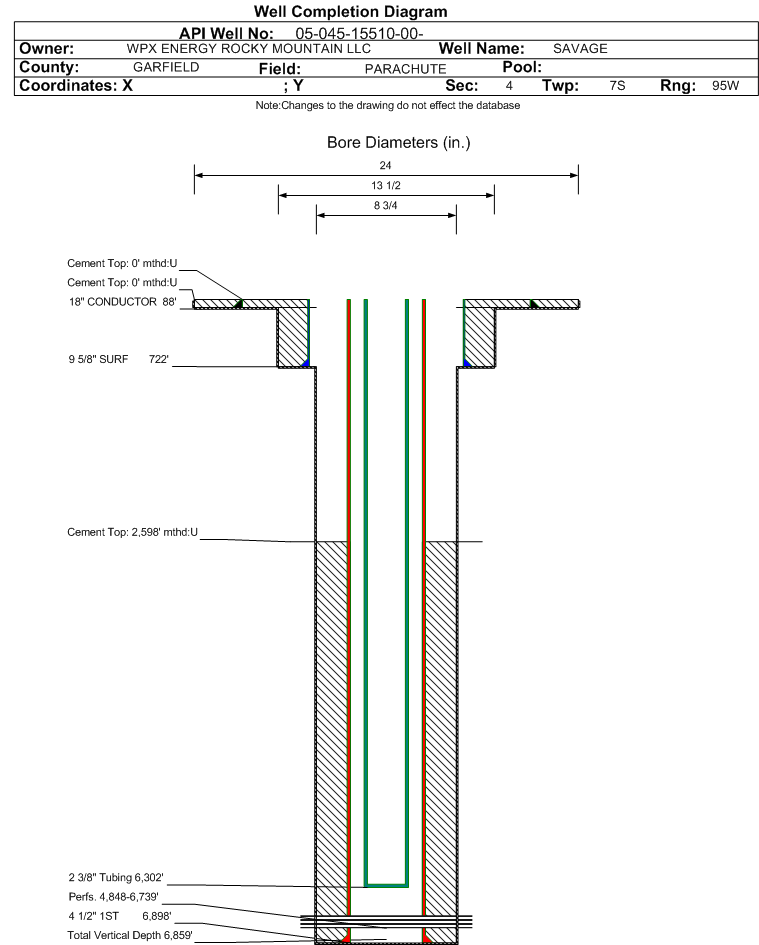

Wellbore Completed
Completion Date:12/20/2008
Spud Date:12/9/2008Spud Date Is:ACTUAL
Measured TD:6918 ft.Measured PB depth:6864 ft.
True Vertical TD:6859 ft.True Vertical PB depth:6805 ft.
Top PZ Location:Sec:4 Twp: 7S 95WFootage: 1951 FSL  1906 FWL
Bottom Hole Location:Sec:4 Twp: 7S 95WFootage: 2042 FSL  1911 FWL
Log Types:CBL, HIGH RES.IND.,SPECTRAL DENSITY, DUAL SPACED NEUTRON
Log Types:CBL, HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 88 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 33, Top: 0 ft., Bottom: 88 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 722 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 0 ft., Bottom: 722 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 6898 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1115, Top: 2598 ft., Bottom: 6898 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1613 ft.
MESAVERDE3670 ft.
CAMEO5886 ft.
ROLLINS6807 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/28/2010                 Interval Top: 4848 ft.    Interval Bottom: 6739 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:1/20/2010Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:1/18/2010
Treatment Summary:4555 GAL 7 1/2% HCL; 1307000 # 20/40 SAND; 33621 BBLS SLICKWATER (SUMMARY).
Tubing Size:2.375 in.Tubing Setting Depth:6302 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/28/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1059
CALC_MCF_GAS 1174
CASING_PRESS 1912
MCF_GAS 1174
TUBING_PRESS 1821
Perforation Data:
Interval Top:4848 ft.# Of Holes:169
Interval Bottom:6739 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)25
Total Gas Produced (MCF)19622
GOR784880
GOR DeterminationMCFE
Average BOE per Day9.337
Average MCFE per Day54.163

 Federal Financial Assurance  i

 Tribal Well  i No
