Wellbore #00 Wellbore Classification: DSPW Status: SI - 11/1/2025 Measured TD: 9253 ft. Vertical TD: 9048 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: DSPW SI - 11/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20076993 | Expiration Date: | 2/11/2009 | | Proposed Top PZ Location: | Sec:27 Twp: 4S 96W | Footage: 63 FNL 265 FEL | | Bottom Hole Location: | Sec:27 Twp: 4S 96W | Footage: 63 FNL 265 FEL | | Proposed Depth/Form: | 11905 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | STORY GULCH UNI | Unit Number: | COC-69333X | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: , Depth: 11905 ft., Weight: 13.5 , Citings Type: PLANNED | | Cement: | Sacks: 270, Top: 8095 ft., Bottom: 11905 ft. |
| | |

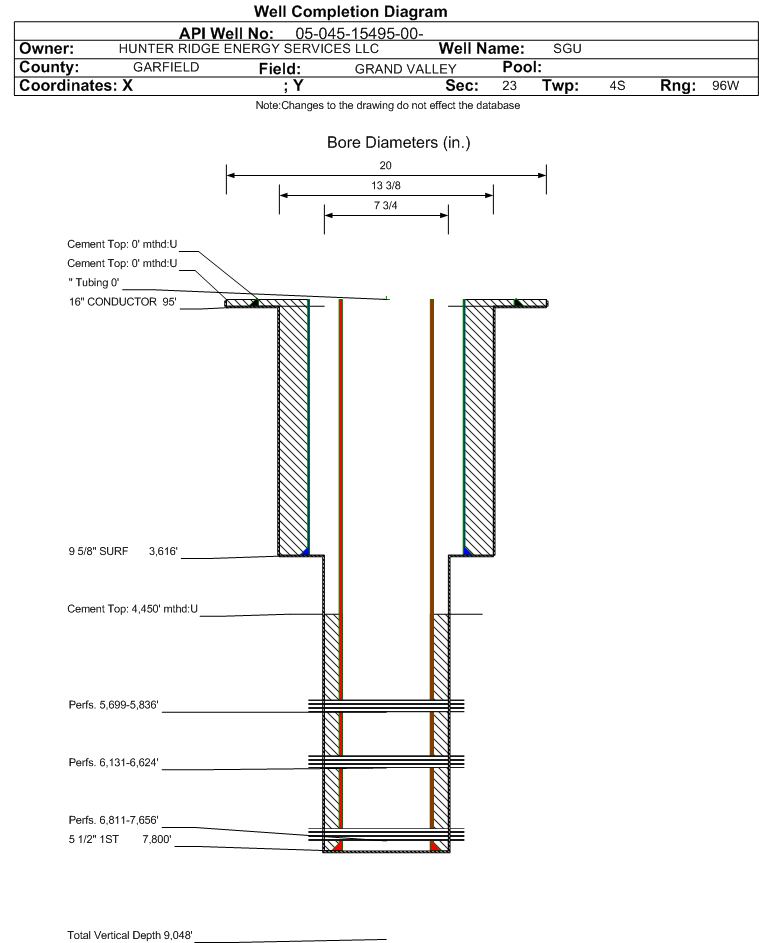

| Wellbore Completed | | Completion Date: | 10/22/2008 | | Spud Date: | 9/19/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 9253 ft. | Measured PB depth: | 7800 ft. | | True Vertical TD: | 9048 ft. | True Vertical PB depth: | 7603 ft. | | Top PZ Location: | Sec:27 Twp: 4S 96W | Footage: 63 FNL 265 FEL | | Bottom Hole Location: | Sec:27 Twp: 4S 96W | Footage: 63 FNL 265 FEL | | Log Types: | CBL, TEMP, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 95 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 95 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.375 in., Size: 9.625 in., Top: 0 ft., Depth: 3616 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1867, Top: 0 ft., Bottom: 3616 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.75 in., Size: 5.5 in., Top: 0 ft., Depth: 7800 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 1464, Top: 4450 ft., Bottom: 7800 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GARDEN GULCH | 2017 ft. | | | | | WASATCH A | 2807 ft. | | N | N | | WASATCH B | 3496 ft. | | N | N | | WASATCH G | 5599 ft. | | N | N | | WASATCH | 6644 ft. | | N | N | | WILLIAMS FORK | 7884 ft. | | | |
Formation WSTC Formation Classification: DSPW Status: AB - 4/14/2009 Interval Top: 6811 ft. Interval Bottom: 7656 ft.| Completed Information for Formation WASATCH | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WASATCH | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/21/2008 | | Treatment Summary: | LOWER WASATCH, FRACTURED WITH: 2000 AGL 15% HCL, 31001 BBLS SLICK WATER |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/28/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| CALC_GOR | 0 |
| | Perforation Data: | | Interval Top: | 6811 ft. | # Of Holes: | 54 | | Interval Bottom: | 7656 ft. | Hole Size: | 0.32 in. |
|
Formation WSTCA Formation Classification: OW Status: SI - 9/1/2015 Interval Top: 6131 ft. Interval Bottom: 6624 ft.| Completed Information for Formation WASATCH A | | 1st Production Date: | 4/23/2009 | Choke Size: | | | Formation Name: | WASATCH A | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/9/2009 | | Treatment Summary: | FRACTURED WITH 2000 GALS 15% HCL, 200000 BBLS SLICKWATER |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/23/2009 | Test Method: | | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| CALC_GOR | 0 |
| | Perforation Data: | | Interval Top: | 6131 ft. | # Of Holes: | 81 | | Interval Bottom: | 6624 ft. | Hole Size: | 0.32 in. |
|
Formation WSTCG Formation Classification: OW Status: IJ - 10/1/2024 Interval Top: 5699 ft. Interval Bottom: 5836 ft.| Completed Information for Formation WASATCH G | | 1st Production Date: | 4/23/2009 | Choke Size: | | | Formation Name: | WASATCH G | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/30/2009 | | Treatment Summary: | FRACTURED WITH: 2000 GAL 15% HCL, 198000 BBLS SLICK WATER |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/23/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| CALC_GOR | 0 |
| | Perforation Data: | | Interval Top: | 5699 ft. | # Of Holes: | 27 | | Interval Bottom: | 5836 ft. | Hole Size: | 0.32 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | Y |
|
|
