Wellbore #00 Wellbore Classification: GW Status: PR - 11/20/2008 Measured TD: 8745 ft. Vertical TD: 8382 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/20/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20076661 | Expiration Date: | 2/3/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 815 FNL 733 FWL | | Bottom Hole Location: | Sec:13 Twp: 7S 95W | Footage: 815 FNL 733 FWL | | Proposed Depth/Form: | 8830 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-64 , Unit Acreage: 640, Drill Unit: |
| | |

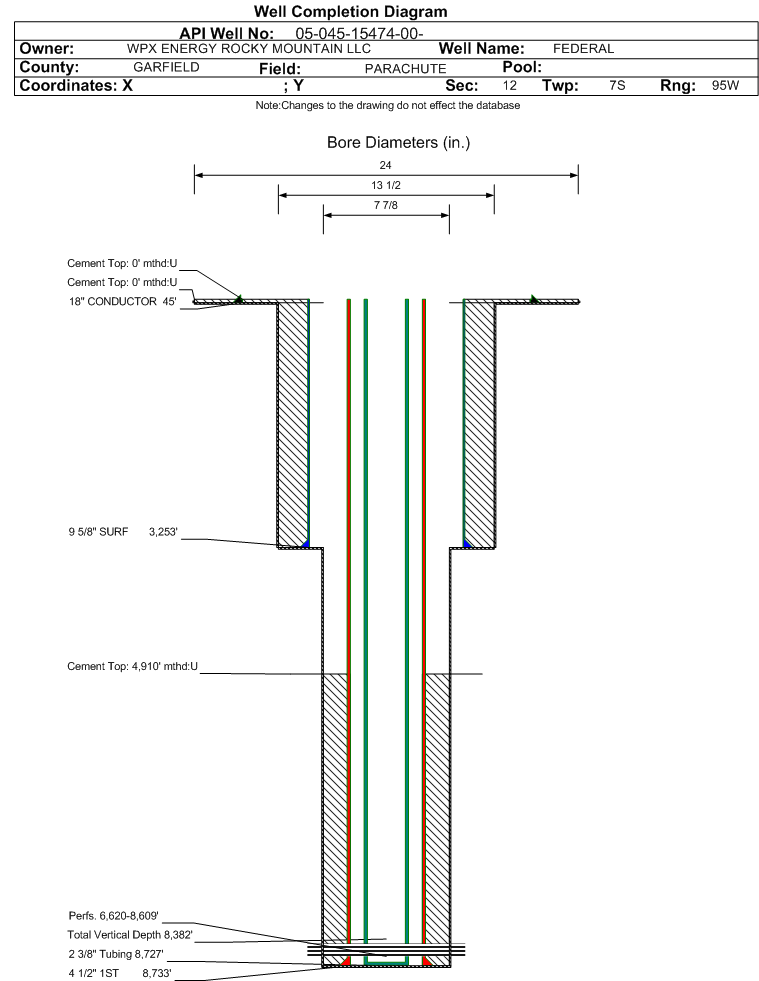

| Wellbore Completed | | Completion Date: | 9/16/2008 | | Spud Date: | 8/29/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 8745 ft. | Measured PB depth: | 8708 ft. | | True Vertical TD: | 8382 ft. | True Vertical PB depth: | 8345 ft. | | Top PZ Location: | Sec:13 Twp: 7S 95W | Footage: 764 FNL 756 FWL | | Bottom Hole Location: | Sec:13 Twp: 7S 95W | Footage: 764 FNL 756 FWL | | Log Types: | CBL; HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON; MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 3253 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 845, Top: 0 ft., Bottom: 3253 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8733 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 875, Top: 4910 ft., Bottom: 8733 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 3065 ft. | | N | N | | MESAVERDE | 5359 ft. | | N | N | | CAMEO | 7666 ft. | | N | N | | ROLLINS | 8680 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 11/20/2008 Interval Top: 6620 ft. Interval Bottom: 8609 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 10/1/2008 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/29/2008 | | Treatment Summary: | 3985 GALS 7 1/2% HCL; 934500# 30/50 SAND; 24*992 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8727 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/20/2008 | Test Method: | FLOWING | | Hours Tested: | 19 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1170 | | CALC_MCF_GAS | 1225 | | CASING_PRESS | 1965 | | MCF_GAS | 970 | | TUBING_PRESS | 1552 |
| | Perforation Data: | | Interval Top: | 6620 ft. | # Of Holes: | 154 | | Interval Bottom: | 8609 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 34 |
| Total Gas Produced (MCF) | 26421 |
| GOR | 777088 |
| GOR Determination | MCFE |
| Average BOE per Day | 12.599 |
| Average MCFE per Day | 73.063 |
| Federal Financial Assurance | i | Y |
|
|
