COGIS - WELL SCOUT CARD

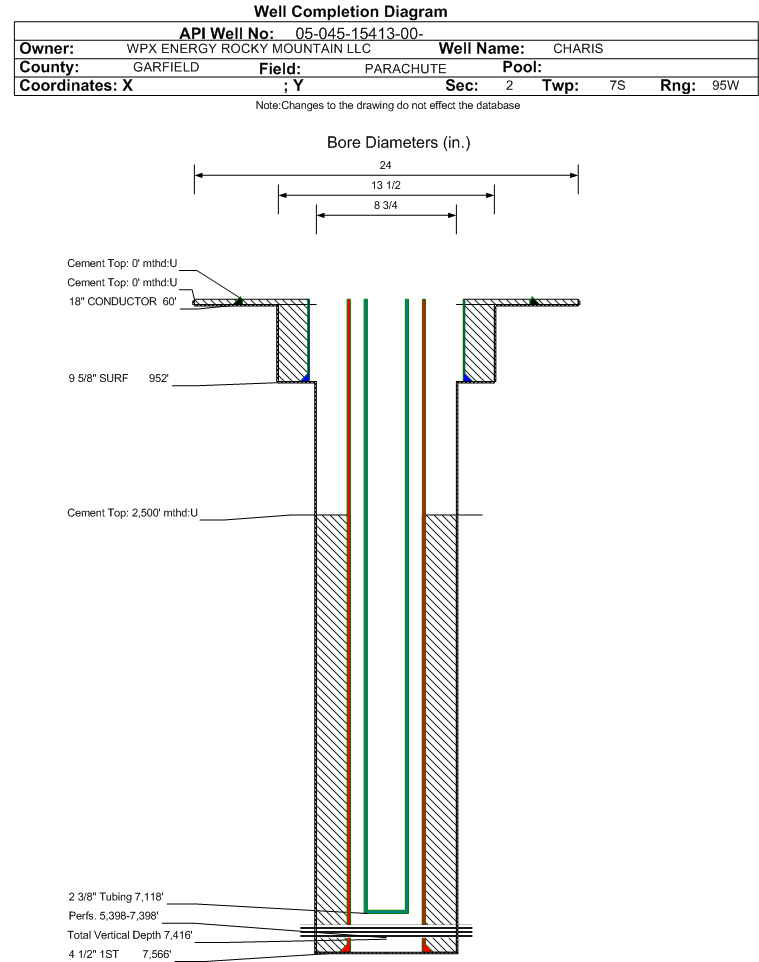

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-15413		Well Classification: GW Status: PR - 4/16/2011
Well Name/No:CHARIS #PA 324-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/16/2011
FacilityID:294426LocationID:323841
County:GARFIELD #045Location:NESW 2 7S95W 6
Field:PARACHUTE - #67350Elevation:5819 ft.
Basin:PICEANCE BASIN
Planned Location:1997FSL  1565 FWLLat/Long: 39.464964 / -107.969259Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.464963 / -107.969257Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/16/2011             Measured TD: 7581 ft.    Vertical TD: 7416 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/16/2011
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:1/12/2011
Proposed Top PZ Location:Sec:2 Twp: 7S 95W Footage: 809 FSL  1977 FWL
Bottom Hole Location:Sec:2 Twp: 7S 95W Footage: 809 FSL  1977 FWL
Proposed Depth/Form:7633 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-46 , Unit Acreage: 320, Drill Unit: W/2
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 48 , Citings Type: PLANNED
Cement:Sacks: 25, Top: 0 ft., Bottom: 45 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 2114 ft., Weight: 32.3 , Citings Type: PLANNED
Cement:Sacks: 737, Top: 0 ft., Bottom: 2114 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7633 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 591, Top: , Bottom: 7633 ft.
Wellbore Completed
Completion Date:7/14/2010
Spud Date:7/7/2010Spud Date Is:ACTUAL
Measured TD:7581 ft.Measured PB depth:7537 ft.
True Vertical TD:7416 ft.True Vertical PB depth:7372 ft.
Top PZ Location:Sec:2 Twp: 7S 95WFootage: 817 FSL  1973 FWL
Bottom Hole Location:Sec:2 Twp: 7S 95WFootage: 825 FSL  1976 FWL
Log Types:GAMMA RAY, HIGH DEFINITION INDUCTION LOG, COMPENSATED Z-DENSILOG, COMPENSATED NEUTRON LOG, MUD, AND CBL RESERVOIR PERFORMANCE MONITOR (RPM)
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 23, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 952 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 280, Top: 0 ft., Bottom: 952 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7566 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1200, Top: 2500 ft., Bottom: 7566 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1935 ft.
MESAVERDE4152 ft.
CAMEO6538 ft.
ROLLINS7475 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/30/2010                Interval Top: 5398 ft.    Interval Bottom: 7398 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:9/21/2010Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:9/20/2010
Treatment Summary:3502 GALS 7 1/2% HCL; 518925 100 MESH; 795200# 30/50 SAND; 35183 BBLS SLICKWATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:7118 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/30/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1045
CASING_PRESS 1930
MCF_GAS 1072
TUBING_PRESS 1764
Perforation Data:
Interval Top:5398 ft.# Of Holes:153
Interval Bottom:7398 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)36
Total Gas Produced (MCF)24360
GOR676666
GOR DeterminationMCFE
Average BOE per Day11.607
Average MCFE per Day67.334

 Federal Financial Assurance  i

 Tribal Well  i No
