Wellbore #00 Wellbore Classification: GW Status: PR - 11/12/2007 Measured TD: 5161 ft. Vertical TD: 5110 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/12/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20076547 | Expiration Date: | 1/9/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1730 FSL 664 FWL | | Bottom Hole Location: | Sec:26 Twp: 7S 96W | Footage: 1730 FSL 664 FWL | | Proposed Depth/Form: | 5082 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-37 , Unit Acreage: 160, Drill Unit: N/2S/2 |
| | |

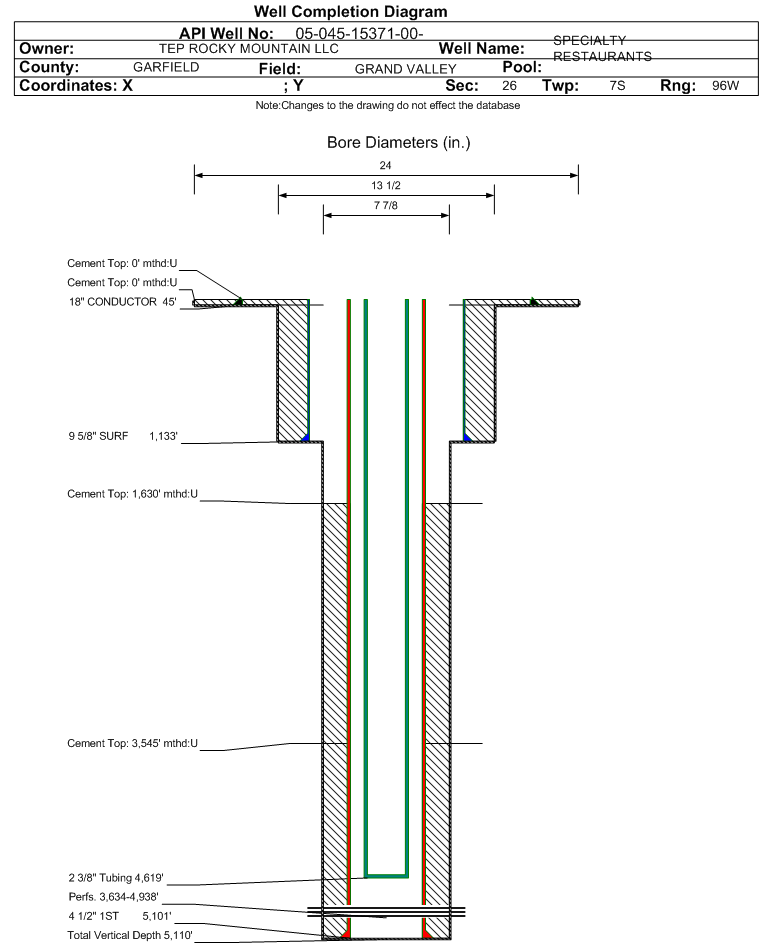

| Wellbore Completed | | Completion Date: | 5/27/2008 | | Spud Date: | 5/22/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 5161 ft. | Measured PB depth: | 5080 ft. | | True Vertical TD: | 5110 ft. | True Vertical PB depth: | 5131 ft. | | Top PZ Location: | Sec:26 Twp: TS 96W | Footage: 1732 FSL 670 FWL | | Bottom Hole Location: | Sec:26 Twp: TS 96W | Footage: 1732 FSL 670 FWL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1133 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 315, Top: 0 ft., Bottom: 1133 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5101 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 855, Top: 1630 ft., Bottom: 5100 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 75, Top: 3545 ft., Bottom: 3546 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 586 ft. | | N | N | | MESAVERDE | 2167 ft. | | N | N | | CAMEO | 4511 ft. | | N | N | | ROLLINS | 5005 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 6/30/2009 Interval Top: 3634 ft. Interval Bottom: 4938 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/13/2009 | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/3/2009 | | Treatment Summary: | 2886 GALS 7 1/2% H CL; 622839# 30/50 SAND; 14203 BBLS SLICKWATER; 3658012 N2 SCF(SUMMARY). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 4619 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/30/2009 | Test Method: | FLOWING | | Hours Tested: | 21 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1070 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CASING_PRESS | 635 | | MCF_GAS | 967 | | TUBING_PRESS | 494 |
| | Perforation Data: | | Interval Top: | 3634 ft. | # Of Holes: | 101 | | Interval Bottom: | 4938 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 18 |
| Total Gas Produced (MCF) | 14049 |
| GOR | 780500 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.681 |
| Average MCFE per Day | 38.781 |
| Federal Financial Assurance | i | |
|
|
