Wellbore #00 Wellbore Classification: GW Status: PR - 11/12/2007 Measured TD: 5780 ft. Vertical TD: 5177 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/12/2007 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20076494 | Expiration Date: | 1/9/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 239 FNL 714 FWL | | Bottom Hole Location: | Sec:26 Twp: 7S 96W | Footage: 239 FNL 714 FWL | | Proposed Depth/Form: | 5769 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-14 , Unit Acreage: 160, Drill Unit: NW/4 |
| | |

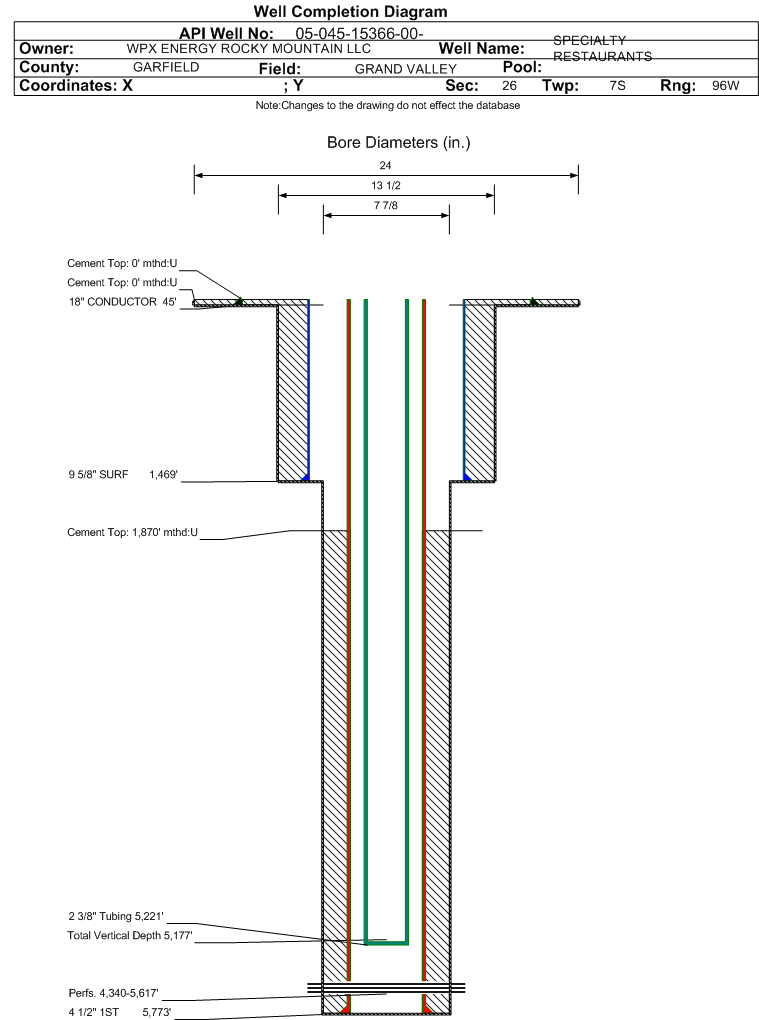

| Wellbore Completed | | Completion Date: | 3/16/2008 | | Spud Date: | 3/8/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 5780 ft. | Measured PB depth: | 5745 ft. | | True Vertical TD: | 5177 ft. | True Vertical PB depth: | 5142 ft. | | Top PZ Location: | Sec:26 Twp: 7S 96W | Footage: 257 FNL 680 FWL | | Bottom Hole Location: | Sec:26 Twp: 7S 96W | Footage: 257 FNL 680 FWL | | Log Types: | CBL, RMTE, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1469 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 420, Top: 0 ft., Bottom: 1469 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5773 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 765, Top: 1870 ft., Bottom: 5773 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | MESAVERDE | 2672 ft. | | N | N | | CAMEO | 5143 ft. | | N | N | | ROLLINS | 5666 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 7/31/2008 Interval Top: 4340 ft. Interval Bottom: 5617 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 6/22/2008 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/21/2008 | | Treatment Summary: | 2534 GALS 7 1/2% HCL; 822045# 30/50 SAND; 17919 BBLS SLICKWATER; 431 TONS C02 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5221 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/31/2008 | Test Method: | FLOWING | | Hours Tested: | 21 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1170 | | CASING_PRESS | 1149 | | MCF_GAS | 1126 | | TUBING_PRESS | 1044 |
| | Perforation Data: | | Interval Top: | 4340 ft. | # Of Holes: | 105 | | Interval Bottom: | 5617 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 14 |
| Total Gas Produced (MCF) | 12946 |
| GOR | 924714 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.151 |
| Average MCFE per Day | 35.683 |
| Federal Financial Assurance | i | |
|
|
