COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-15319		Well Classification: GW Status: PR - 7/27/2008
Well Name/No:CLOUGH #RWF 344-22
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/27/2008
FacilityID:294211LocationID:335332
County:GARFIELD #045Location:SESE 22 6S94W 6
Field:RULISON - #75400Elevation:5219 ft.
Basin:PICEANCE BASIN
Planned Location:888FSL  1079 FELLat/Long: 39.505945 / -107.868898Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.505936 / -107.868857Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/27/2008             Measured TD: 7593 ft.    Vertical TD: 7477 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/27/2008
Wellbore PermitDIRECTIONAL
Permit #:20076274 Expiration Date:1/3/2009
Proposed Top PZ Location:Sec: Twp: Footage: 141 FSL  396 FEL
Bottom Hole Location:Sec:22 Twp: 6S 94W Footage: 141 FSL  396 FEL
Proposed Depth/Form:7689 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-66 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:3/18/2008
Spud Date:3/6/2008Spud Date Is:ACTUAL
Measured TD:7593 ft.Measured PB depth:7530 ft.
True Vertical TD:7477 ft.True Vertical PB depth:7414 ft.
Top PZ Location:Sec:22 Twp: 6S 94WFootage: 131 FSL  387 FEL
Bottom Hole Location:Sec:22 Twp: 6S 94WFootage: 131 FSL  387 FEL
Log Types:CBL; RMTE

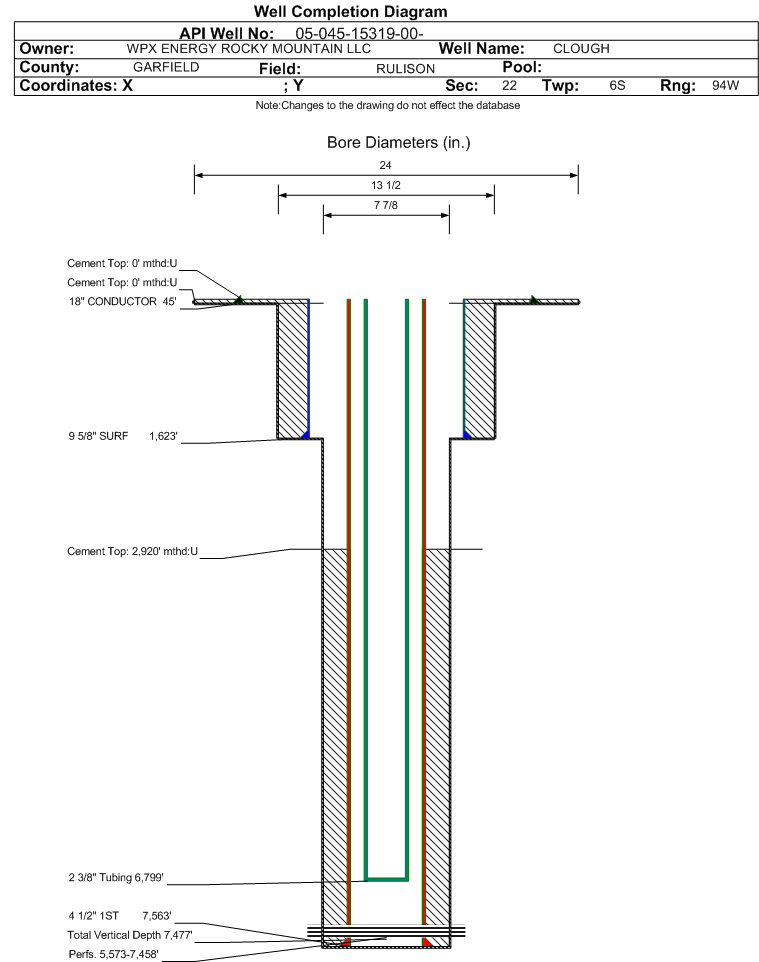

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1623 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 435, Top: 0 ft., Bottom: 1623 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7563 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1338, Top: 2920 ft., Bottom: 7563 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1376 ft.NN
MESAVERDE3949 ft.NN
CAMEO6783 ft.NN
ROLLINS7593 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/27/2008                 Interval Top: 5573 ft.    Interval Bottom: 7458 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:4/23/2008Choke Size:0.172 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/19/2008
Treatment Summary:3106 GALS 7.5% HCL; 701,500# 20/40 SAND; 18,897 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:6799 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/27/2008Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 992
CASING_PRESS 730
MCF_GAS 992
TUBING_PRESS 614
Perforation Data:
Interval Top:5573 ft.# Of Holes:125
Interval Bottom:7458 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)17
Total Gas Produced (MCF)14028
GOR825176
GOR DeterminationMCFE
Average BOE per Day6.681
Average MCFE per Day38.734

 Federal Financial Assurance  i

 Tribal Well  i No
