Wellbore #00 Wellbore Classification: GW Status: PR - 7/22/2009 Measured TD: 7114 ft. Vertical TD: 7038 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/22/2009 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20076201 | Expiration Date: | 12/27/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 774 FNL 673 FWL | | Bottom Hole Location: | Sec:27 Twp: 5S 95W | Footage: 774 FNL 673 FWL | | Proposed Depth/Form: | 11620 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: , Drill Unit: | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: , Depth: 11620 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 1297, Top: 2500 ft., Bottom: 11620 ft. |
| | |

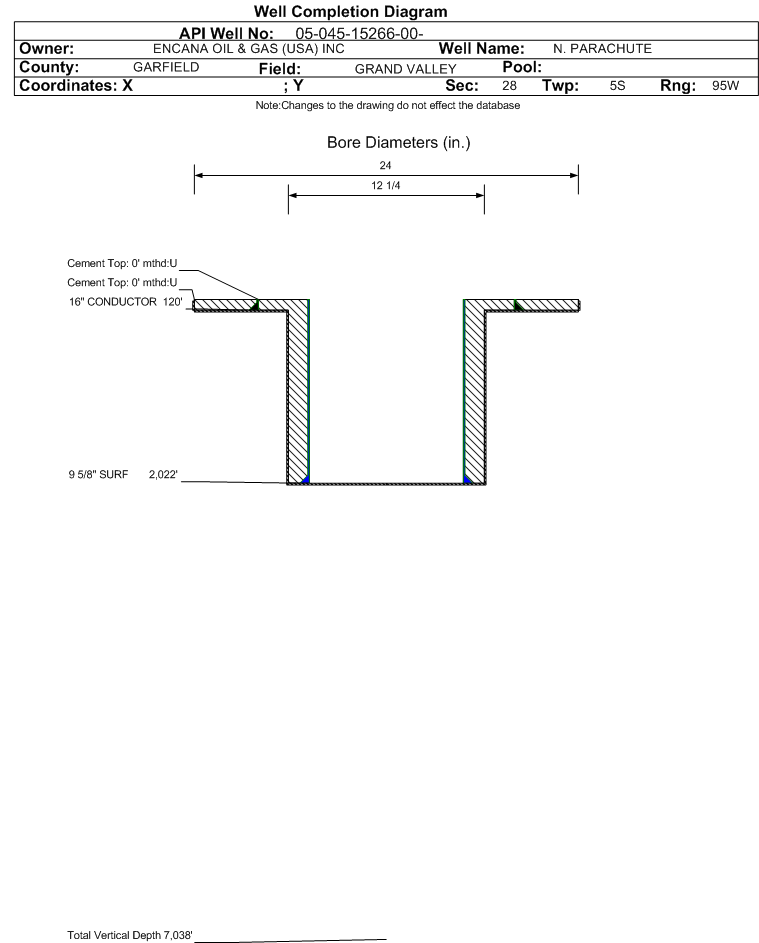

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 10/3/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 7114 ft. | Measured PB depth: | | | True Vertical TD: | 7038 ft. | True Vertical PB depth: | | | Bottom Hole Location: | Sec:27 Twp: 5S 95W | Footage: 774 FNL 673 FWL | | Log Types: | NONE YET | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 120 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2022 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 440, Top: 0 ft., Bottom: 2022 ft., Determination Method: CALC | | No formation data to display. |
Sidetrack #01 Wellbore Classification: GW Status: PR - 7/1/2024 Measured TD: 10025 ft. Vertical TD: 9892 ft.| Wellbore Data for Sidetrack #01 | Wellbore Classification: GW PR - 7/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 9/21/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 774 FNL 673 FWL | | Bottom Hole Location: | Sec:27 Twp: 5S 95W | Footage: 774 FNL 673 FWL | | Proposed Depth/Form: | 11620 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: , Drill Unit: |
| | |
| Wellbore Completed | | Completion Date: | 10/17/2008 | | Spud Date: | 1/3/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 10025 ft. | Measured PB depth: | 9978 ft. | | True Vertical TD: | 9892 ft. | True Vertical PB depth: | 9845 ft. | | Top PZ Location: | Sec:27 Twp: 5S 95W | Footage: 558 FNL 481 FWL | | Bottom Hole Location: | Sec:27 Twp: 5S 95W | Footage: 558 FNL 481 FWL | | Log Types: | CBL, MUD, RST | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 120 ft., Weight: 65 , Citings Type: ACTUAL | | Cement: | Sacks: 6, Top: 0 ft., Bottom: 120 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2022 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 440, Top: 0 ft., Bottom: 2022 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10003 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1555, Top: 2596 ft., Bottom: 10003 ft., Determination Method: CBL | | Casing: | String Type: 3RD, Hole Size: , Size: , Top: , Depth: , Weight: 0.00 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Casing: | String Type: 1ST LINER, Hole Size: , Size: , Top: , Depth: , Weight: 0.00 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 6265 ft. | 9894 ft. | N | N | | ROLLINS | 9894 ft. | 10025 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 7/1/2024 Interval Top: 6322 ft. Interval Bottom: 9834 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 7/22/2009 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/22/2009 | | Treatment Summary: | STAGES 01-11 TREATED WITH A TOTAL OF 35065 BBLS OF FR WATER, 44130 BBLS SLICKWATER, 95300 LBS 20/40 PR6000, 225668 LBS 20/40 SAND, 134200 LBS 30/50 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8628 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/11/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1170 | | CALC_MCF_GAS | 1136 | | CASING_PRESS | 1120 | | MCF_GAS | 1136 | | TUBING_PRESS | 477 |
| | Perforation Data: | | Interval Top: | 6322 ft. | # Of Holes: | 330 | | Interval Bottom: | 9834 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 37 |
| Total Gas Produced (MCF) | 6612 |
| GOR | 178702 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.231 |
| Average MCFE per Day | 18.709 |
| Federal Financial Assurance | i | |
|
|
