Wellbore #00 Wellbore Classification: GW Status: PR - 5/1/2023 Measured TD: 10190 ft. Vertical TD: 10169 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/1/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20075768 | Expiration Date: | 12/12/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1650 FNL 2310 FEL | | Bottom Hole Location: | Sec:21 Twp: 5S 96W | Footage: 1650 FNL 2310 FEL | | Proposed Depth/Form: | 11210 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: SEGO , Formation: SEGO , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: , Drill Unit: | | Casing: | String Type: 2ND, Hole Size: 6.125 in., Size: 4.5 in., Top: , Depth: 11210 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 350, Top: 6752 ft., Bottom: 11210 ft. |
| | |

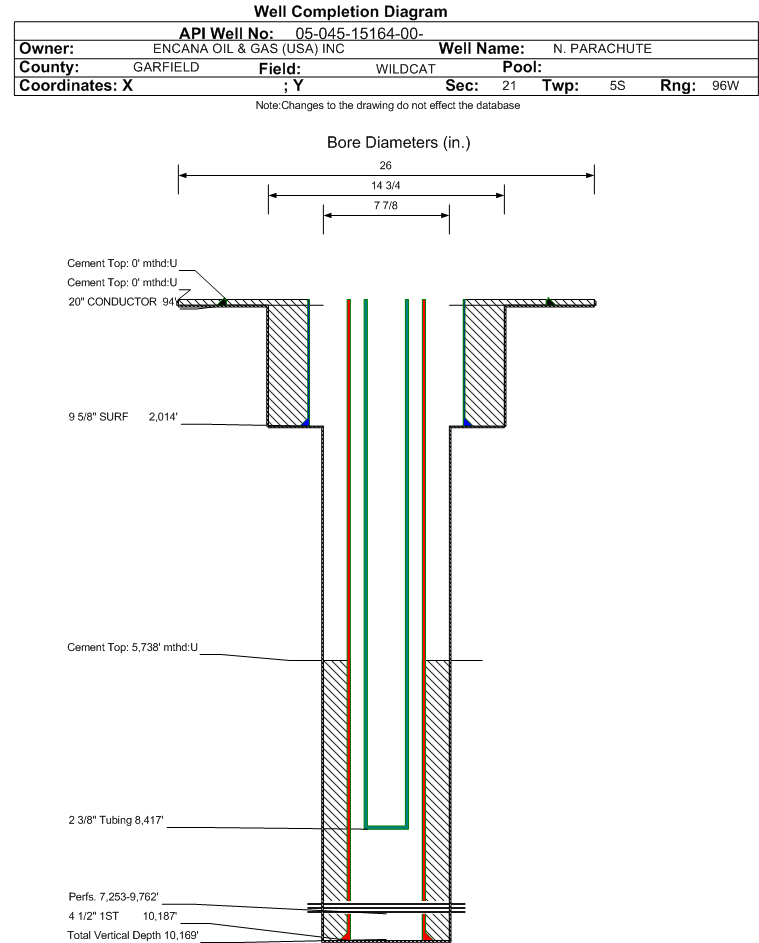

| Wellbore Completed | | Completion Date: | 12/9/2009 | | Spud Date: | 3/17/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 10190 ft. | Measured PB depth: | 10106 ft. | | True Vertical TD: | 10169 ft. | True Vertical PB depth: | 10085 ft. | | Top PZ Location: | Sec:21 Twp: 5S 96W | Footage: 1618 FNL 2243 FEL | | Bottom Hole Location: | Sec:21 Twp: 5S 96W | Footage: 1618 FNL 2243 FEL | | Log Types: | TEMP | | Log Types: | GR/CBL/CCL; CBL AND MUD LAS FILES APPROVED | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 94 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 6, Top: 0 ft., Bottom: 94 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2014 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1480, Top: 0 ft., Bottom: 2014 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 10187 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1017, Top: 5738 ft., Bottom: 10187 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH A | 2384 ft. | | N | N | | WASATCH B | 2856 ft. | | N | N | | WILLIAMS FORK | 6747 ft. | | N | N | | CAMEO | 9380 ft. | | N | N | | ROLLINS | 9976 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 5/1/2023 Interval Top: 7253 ft. Interval Bottom: 9762 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 9/8/2009 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/6/2009 | | Treatment Summary: | FRACTURED WITH 43,666 BBLS SLICK WATER, 16,800 MESH, 922,700 LBS 20/40 JORDAN UNIMIN |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8417 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/8/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1560 | | BBLS_OIL | 0 | | BTU_GAS | 985 | | CALC_BBLS_H2O | 1560 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1200 | | CASING_PRESS | 2150 | | MCF_GAS | 1200 | | TUBING_PRESS | 1300 |
| | Perforation Data: | | Interval Top: | 7253 ft. | # Of Holes: | 204 | | Interval Bottom: | 9762 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 19 |
| Total Gas Produced (MCF) | 3649 |
| GOR | 192052 |
| GOR Determination | MCFE |
| Average BOE per Day | 1.780 |
| Average MCFE per Day | 10.314 |
| Federal Financial Assurance | i | |
|
|
