Facility Detail

COGIS - WELL SCOUT CARD

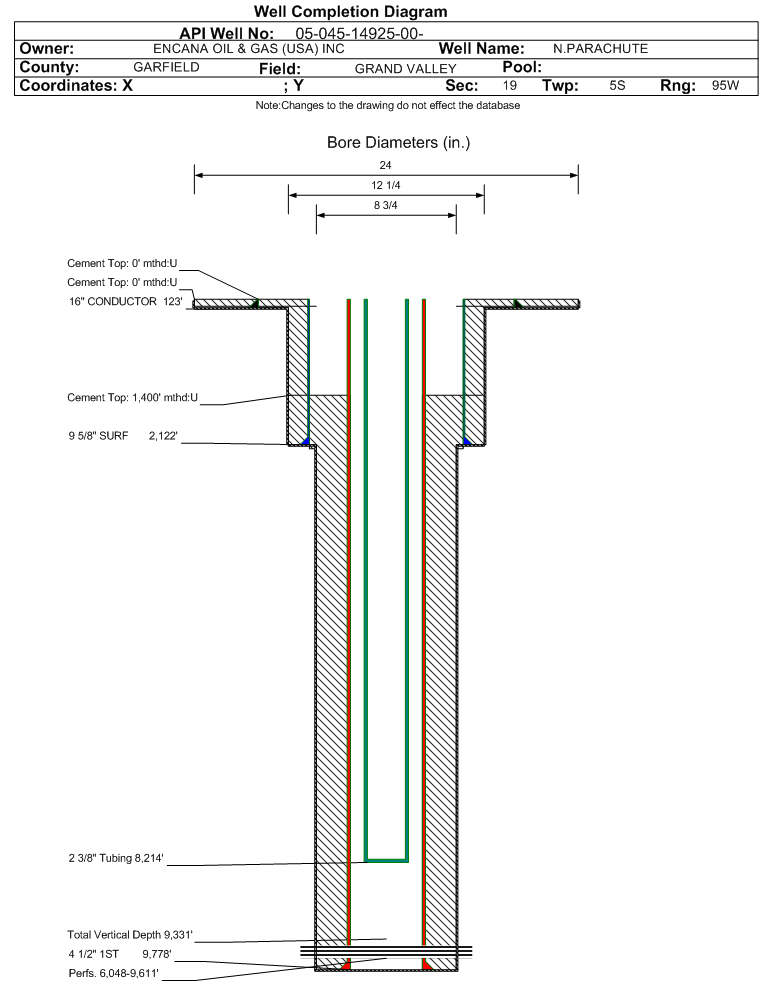

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-14925		Well Classification: GW Status: PR - 11/20/2008
Well Name/No:N.PARACHUTE #EF01A-24 E19 59
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date11/20/2008
FacilityID:293206LocationID:335579
County:GARFIELD #045Location:SWNW 19 5S95W 6
Field:GRAND VALLEY - #31290Elevation:5993 ft.
Basin:PICEANCE BASIN
Planned Location:1230FNL  1371 FWLLat/Long: 39.603179 / -108.103719Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.603178 / -108.103722Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/20/2008             Measured TD: 9791 ft.    Vertical TD: 9331 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/20/2008
Wellbore PermitDIRECTIONAL
Permit #:20074825 Expiration Date:10/29/2008
Proposed Top PZ Location:Sec: Twp: Footage: 268 FNL  305 FEL
Bottom Hole Location:Sec:24 Twp: 5S 96W Footage: 268 FNL  305 FEL
Proposed Depth/Form:11450 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-13 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:6/25/2008
Spud Date:6/4/2008Spud Date Is:ACTUAL
Measured TD:9791 ft.Measured PB depth:9753 ft.
True Vertical TD:9331 ft.True Vertical PB depth:9293 ft.
Top PZ Location:Sec:24 Twp: 5S 96WFootage: 188 FNL  241 FEL
Bottom Hole Location:Sec:24 Twp: 5S 96WFootage: 188 FNL  241 FEL
Log Types:MUD AND CBL
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 123 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 100 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2122 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 475, Top: 0 ft., Bottom: 2180 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9778 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1185, Top: 1400 ft., Bottom: 9791 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK5947 ft.9682 ft.NN
ROLLINS9682 ft.9791 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 11/20/2008                Interval Top: 6048 ft.    Interval Bottom: 9611 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:11/7/2008Choke Size:0.344 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/29/2008
Treatment Summary:STAGES 1-10 TREATED WITH A TOTAL OF 84,235 BBLS OF SLICKWATER, 496,000 LBS 30/50 SAND
Tubing Size:2.375 in.Tubing Setting Depth:8214 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/20/2008Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 0
BTU_GAS 1170
CALC_GOR 0
CASING_PRESS 2350
MCF_GAS 1531
TUBING_PRESS 1600
Perforation Data:
Interval Top:6048 ft.# Of Holes:300
Interval Bottom:9611 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)182
Total Gas Produced (MCF)33056
GOR181626
GOR DeterminationMCFE
Average BOE per Day16.114
Average MCFE per Day93.464

 Federal Financial Assurance  i

 Tribal Well  i No
