Wellbore #00 Wellbore Classification: GW Status: PR - 2/1/2011 Measured TD: 8488 ft. Vertical TD: 8121 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/1/2011 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20074708 | Expiration Date: | 10/21/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1950 FSL 1970 FWL | | Bottom Hole Location: | Sec:24 Twp: 7S 93W | Footage: 1950 FSL 1970 FWL | | Proposed Depth/Form: | 8445 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55972X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

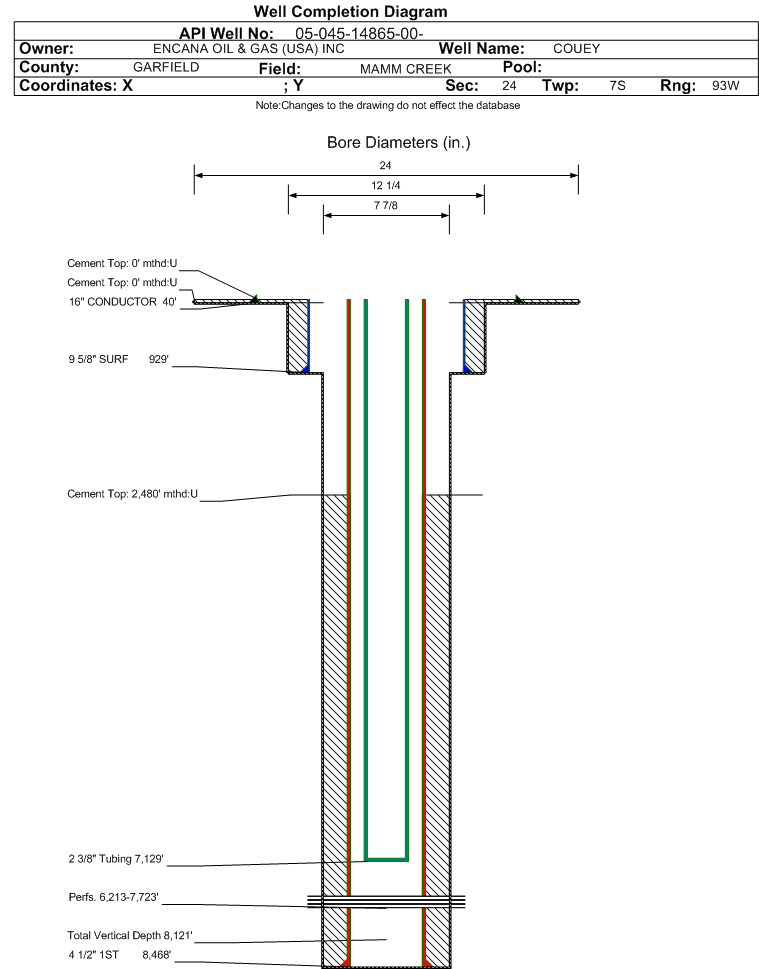

| Wellbore Completed | | Completion Date: | 6/10/2008 | | Spud Date: | 5/27/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 8488 ft. | Measured PB depth: | 8256 ft. | | True Vertical TD: | 8121 ft. | True Vertical PB depth: | 7889 ft. | | Top PZ Location: | Sec:24 Twp: 7S 93W | Footage: 2004 FSL 2055 FWL | | Bottom Hole Location: | Sec:24 Twp: 7S 93W | Footage: 2004 FSL 2055 FWL | | Log Types: | CBL, RST,PEX | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 4, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 929 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 440, Top: 0 ft., Bottom: 929 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8468 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1155, Top: 2480 ft., Bottom: 8473 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 5164 ft. | N | N | | WILLIAMS FORK | 5165 ft. | 6198 ft. | N | N | | ROLLINS | 8304 ft. | 8488 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 2/1/2011 Interval Top: 6213 ft. Interval Bottom: 7723 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 9/23/2008 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/22/2008 | | Treatment Summary: | STAGES 1-6 TREATED WITH A TOTAL OF 38668 BBLS OF SLICKWATER AND 472100 LBS 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7129 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/15/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 648 | | BBLS_OIL | 3 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 648 | | CALC_BBLS_OIL | 3 | | CALC_GOR | 331333 | | CALC_MCF_GAS | 994 | | CASING_PRESS | 2050 | | GRAVITY_OIL | 55 | | MCF_GAS | 994 | | TUBING_PRESS | 1300 |
| | Perforation Data: | | Interval Top: | 6213 ft. | # Of Holes: | 142 | | Interval Bottom: | 7723 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 20 |
| Total Gas Produced (MCF) | 17021 |
| GOR | 851050 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.094 |
| Average MCFE per Day | 46.950 |
| Federal Financial Assurance | i | Y |
|
|
