COGIS - WELL SCOUT CARD

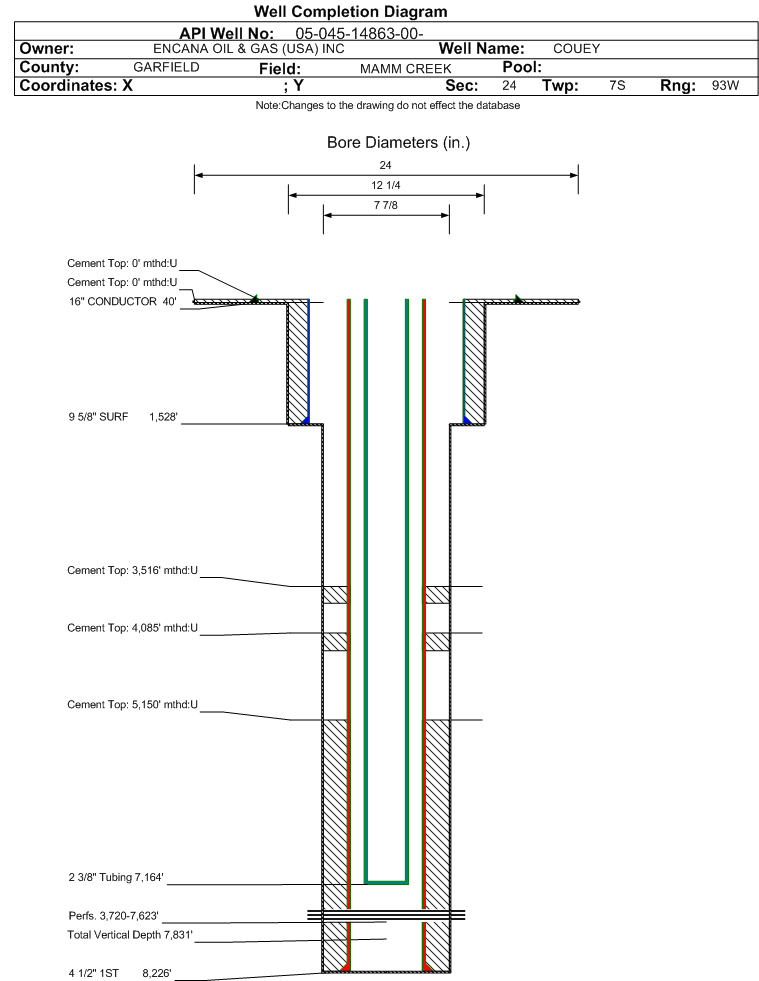

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-14863		Well Classification: GW Status: PR - 1/1/2011
Well Name/No:COUEY #24-10B (F24W)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/1/2011
FacilityID:293066LocationID:334693
County:GARFIELD #045Location:SENW 24 7S93W 6
Field:MAMM CREEK - #52500Elevation:6458 ft.
Basin:PICEANCE BASIN
Planned Location:1506FNL  1552 FWLLat/Long: 39.434297 / -107.727278Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.434300 / -107.727280Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/1/2011             Measured TD: 8246 ft.    Vertical TD: 7831 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/1/2011
Wellbore PermitDIRECTIONAL
Permit #:20074712 Expiration Date:10/21/2008
Proposed Top PZ Location:Sec: Twp: Footage: 2600 FSL  1950 FEL
Bottom Hole Location:Sec:24 Twp: 7S 93W Footage: 2600 FSL  1950 FEL
Proposed Depth/Form:8187 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA UNI Unit Number:COC 55972E
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:4/11/2008
Spud Date:3/26/2008Spud Date Is:ACTUAL
Measured TD:8246 ft.Measured PB depth:7937 ft.
True Vertical TD:7831 ft.True Vertical PB depth:7522 ft.
Top PZ Location:Sec:24 Twp: 7S 93WFootage: 2512 FNL  1893 FEL
Bottom Hole Location:Sec:24 Twp: 7S 93WFootage: 2512 FNL  1893 FEL
Log Types:CBL, RST
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1528 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 760, Top: 0 ft., Bottom: 1540 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8226 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 656, Top: 5150 ft., Bottom: 8226 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4301 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 4085 ft., Bottom: 4301 ft., Determination Method: CBL
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 3721 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 3516 ft., Bottom: 3721 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: , Depth: , Bottom: , Sacks: , Method: SQUEEZE
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.5136 ft.NN
WILLIAMS FORK5137 ft.8068 ft.NN
ROLLINS8069 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 3/1/2011                  Interval Top: 3720 ft.    Interval Bottom: 7623 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:9/11/2008Choke Size:0.313 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/4/2008
Treatment Summary:STAGES 01-06 TREATED W/A TOTAL OF 41,878 BBLS SLICKWATER & 490,300# 20/40 SAND. PERFS @ 4300-4301' SQZD W/100 SX G CMT. PERFS @ 3720-3721' SQZD W/ 150 SX G CMT. NEW TOC IS 3516'.
Tubing Size:2.375 in.Tubing Setting Depth:7164 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/1/2008Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 396
BBLS_OIL 0
BTU_GAS 1170
CALC_BBLS_H2O 396
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 1309
CASING_PRESS 2150
MCF_GAS 1309
TUBING_PRESS 1460
Perforation Data:
Interval Top:3720 ft.# Of Holes:144
Interval Bottom:7623 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)27
Total Gas Produced (MCF)20887
GOR773592
GOR DeterminationMCFE
Average BOE per Day9.940
Average MCFE per Day57.663

 Federal Financial Assurance  i Y

 Tribal Well  i No
