Wellbore #00 Wellbore Classification: GW Status: PR - 10/31/2008 Measured TD: 7518 ft. Vertical TD: 7112 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/31/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20074627 | Expiration Date: | 10/16/2008 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2347 FSL 769 FWL | | Bottom Hole Location: | Sec:31 Twp: 6S 95W | Footage: 2347 FSL 769 FWL | | Proposed Depth/Form: | 7552 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-25 , Unit Acreage: 320, Drill Unit: W/2 |
| | |

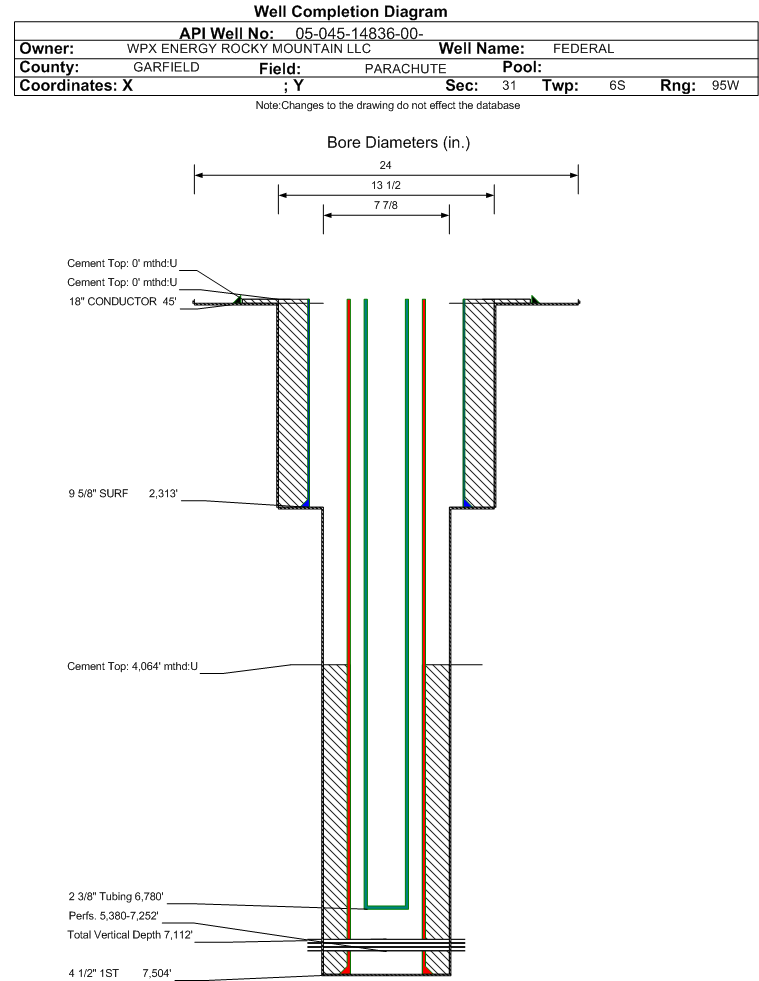

| Wellbore Completed | | Completion Date: | 6/20/2008 | | Spud Date: | 6/13/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 7518 ft. | Measured PB depth: | 7409 ft. | | True Vertical TD: | 7112 ft. | True Vertical PB depth: | 7003 ft. | | Top PZ Location: | Sec:31 Twp: 6S 95W | Footage: 2366 FSL 596 FWL | | Bottom Hole Location: | Sec:31 Twp: 6S 95W | Footage: 2366 FSL 596 FWL | | Log Types: | CBL, RESERVOIR MONITOR TOOL ELITE | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 48 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2313 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 495, Top: 0 ft., Bottom: 2313 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7504 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 836, Top: 4064 ft., Bottom: 7504 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1901 ft. | | N | N | | MESAVERDE | 4201 ft. | | N | N | | CAMEO | 6816 ft. | | N | N | | ROLLINS | 7373 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 10/31/2008 Interval Top: 5380 ft. Interval Bottom: 7252 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 8/13/2008 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/7/2008 | | Treatment Summary: | 3500 GALS 7 1/2% HCL; 8373100 20/10 SAND; 24492 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6780 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/31/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1021 | | CASING_PRESS | 1443 | | MCF_GAS | 1021 | | TUBING_PRESS | 1247 |
| | Perforation Data: | | Interval Top: | 5380 ft. | # Of Holes: | 129 | | Interval Bottom: | 7252 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
11/2024 - 10/2025 |
| Total Oil Produced (Barrels) | 1 |
| Total Gas Produced (MCF) | 2299 |
| GOR | 2299000 |
| GOR Determination | MCFE |
| Average BOE per Day | 1.090 |
| Average MCFE per Day | 6.315 |
| Federal Financial Assurance | i | Y |
|
|
