COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-14779		Well Classification: GW Status: PR - 3/21/2009
Well Name/No:AP #441-23-696
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/21/2009
FacilityID:292789LocationID:335089
County:GARFIELD #045Location:SWSE 14 6S96W 6
Field:GRAND VALLEY - #31290Elevation:6664 ft.
Basin:PICEANCE BASIN
Planned Location:114FSL  1752 FELLat/Long: 39.516091 / -108.073646Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.516087 / -108.073651Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/21/2009             Measured TD: 8862 ft.    Vertical TD: 8599 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/21/2009
Wellbore PermitDIRECTIONAL
Permit #:20086361 Expiration Date:11/12/2009
Proposed Top PZ Location:Sec:23 Twp: 6S 96W Footage: 863 FNL  550 FEL
Bottom Hole Location:Sec:23 Twp: 6S 96W Footage: 863 FNL  550 FEL
Proposed Depth/Form:8810 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-14 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:11/24/2008
Spud Date:11/13/2008Spud Date Is:ACTUAL
Measured TD:8862 ft.Measured PB depth:8819 ft.
True Vertical TD:8599 ft.True Vertical PB depth:8555 ft.
Top PZ Location:Sec:23 Twp: 6S 96WFootage: 863 FNL  550 FEL
Bottom Hole Location:Sec:23 Twp: 6S 96WFootage: 863 FNL  550 FEL
Log Types:CBL, HRI, TRIPLE COMBO, MUD

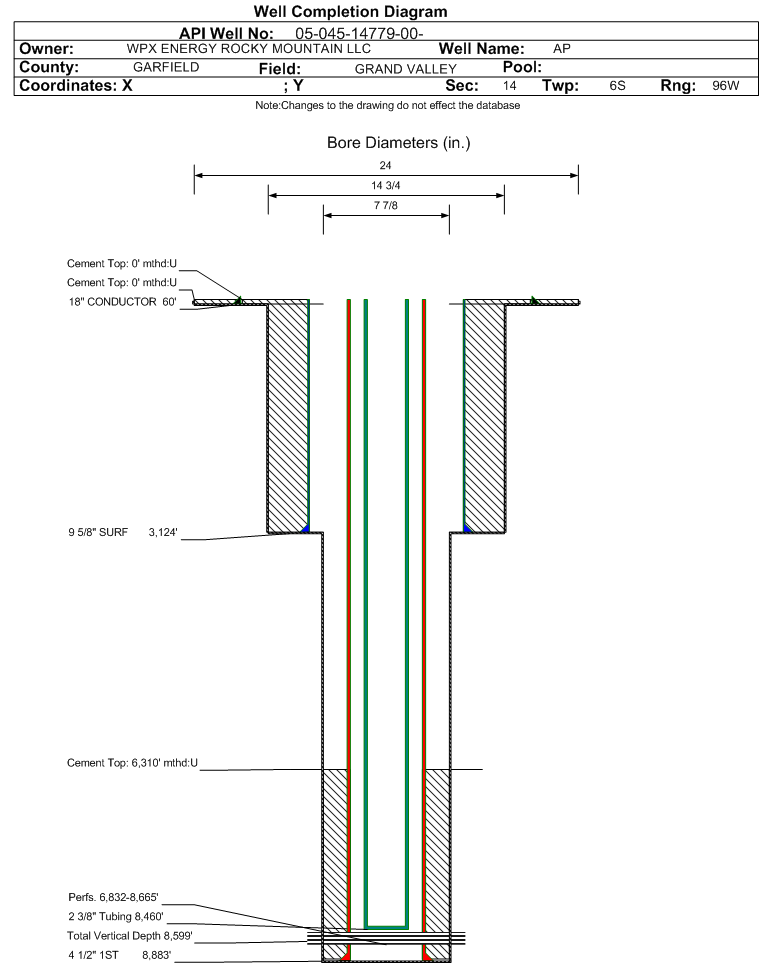

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 48 ft., Depth: 60 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 0 ft., Bottom: 60 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 3124 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 530, Top: 0 ft., Bottom: 3124 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8883 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1044, Top: 6310 ft., Bottom: 8857 ft., Determination Method: CBL

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/21/2009                 Interval Top: 6832 ft.    Interval Bottom: 8665 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:3/21/2009Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:3/21/2009
Treatment Summary:9000 GAL 10% HCL ACID, 1214870# 100 MESH AND 30/50 SAND, 37457 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:8460 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/27/2009Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1006
CALC_GOR 0
CASING_PRESS 2500
MCF_GAS 1750
TUBING_PRESS 2300
Perforation Data:
Interval Top:6832 ft.# Of Holes:178
Interval Bottom:8665 ft.Hole Size:0.36 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)94
Total Gas Produced (MCF)40496
GOR430808
GOR DeterminationMCFE
Average BOE per Day19.377
Average MCFE per Day112.386

 Federal Financial Assurance  i

 Tribal Well  i No
