Wellbore #00 Wellbore Classification: GW Status: PR - 2/9/2008 Measured TD: 5907 ft. Vertical TD: 5705 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/9/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20074438 | Expiration Date: | 9/27/2008 | | Proposed Top PZ Location: | Sec:10 Twp: 7S 92W | Footage: 299 FNL 1983 FWL | | Bottom Hole Location: | Sec:10 Twp: 7S 92W | Footage: 299 FNL 1983 FWL | | Proposed Depth/Form: | 5907 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55972E | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

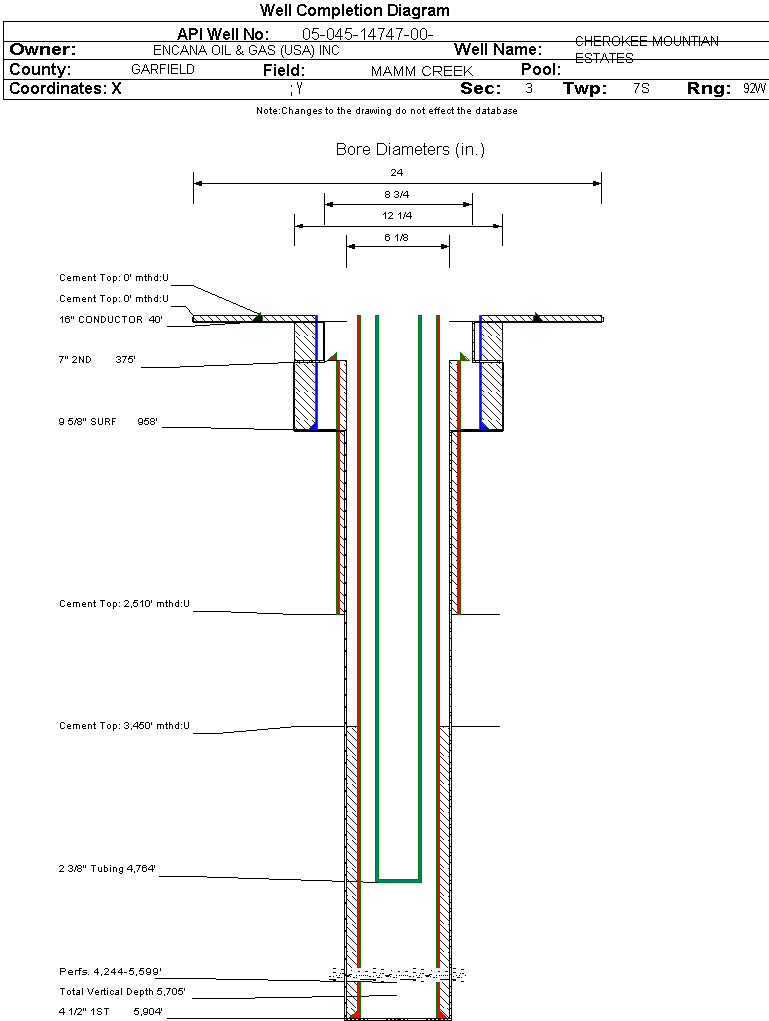

| Wellbore Completed | | Completion Date: | 11/4/2007 | | Spud Date: | 10/17/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 5907 ft. | Measured PB depth: | 5814 ft. | | True Vertical TD: | 5705 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:10 Twp: 7S 92W | Footage: 299 FNL 1983 FWL | | Bottom Hole Location: | Sec:10 Twp: 7S 92W | Footage: 299 FNL 1983 FWL | | Log Types: | CBL.PEX | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 36, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 958 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 504, Top: 0 ft., Bottom: 957 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 6.125 in., Size: 4.5 in., Top: 0 ft., Depth: 5904 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 340, Top: 3450 ft., Bottom: 5907 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 8.75 in., Size: 7 in., Top: 2510 ft., Depth: 375 ft., Weight: 0 , Citings Type: ACTUAL | | Cement: | Sacks: 0, Top: 2510 ft., Bottom: , Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3225 ft. | N | N | | WILLIAMS FORK | 3226 ft. | 5907 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 2/9/2008 Interval Top: 4244 ft. Interval Bottom: 5599 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 2/8/2008 | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/18/2007 | | Treatment Summary: | STAGES 1-4 TREATED W/21,364 BBLS SLICKWATER, 540,943 # 20/40 WHITE SAND; 9000# NON API 14/30 FLEX SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 4764 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/9/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 18 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 18 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1250 | | CASING_PRESS | 1250 | | MCF_GAS | 1250 | | TUBING_PRESS | 975 |
| | Perforation Data: | | Interval Top: | 4244 ft. | # Of Holes: | 84 | | Interval Bottom: | 5599 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 28 |
| Total Gas Produced (MCF) | 15102 |
| GOR | 539357 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.212 |
| Average MCFE per Day | 41.826 |
| Federal Financial Assurance | i | Y |
|
|
