Wellbore #00 Wellbore Classification: GW Status: PR - 5/1/2018 Measured TD: 10092 ft. Vertical TD: 9911 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/1/2018 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20074255 | Expiration Date: | 9/27/2008 | | Proposed Top PZ Location: | Sec:33 Twp: 5S 96W | Footage: 1465 FSL 749 FWL | | Bottom Hole Location: | Sec:33 Twp: 5S 96W | Footage: 1465 FSL 749 FWL | | Proposed Depth/Form: | 9974 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-18 , Unit Acreage: 320, Drill Unit: S/2 | | Casing: | String Type: 2ND, Hole Size: 4.5 in., Size: 3.2 in., Top: 0 ft., Depth: 9930 ft., Weight: 9.2 , Citings Type: PLANNED | | Cement: | Sacks: 305, Top: 0 ft., Bottom: 9930 ft. |
| | |

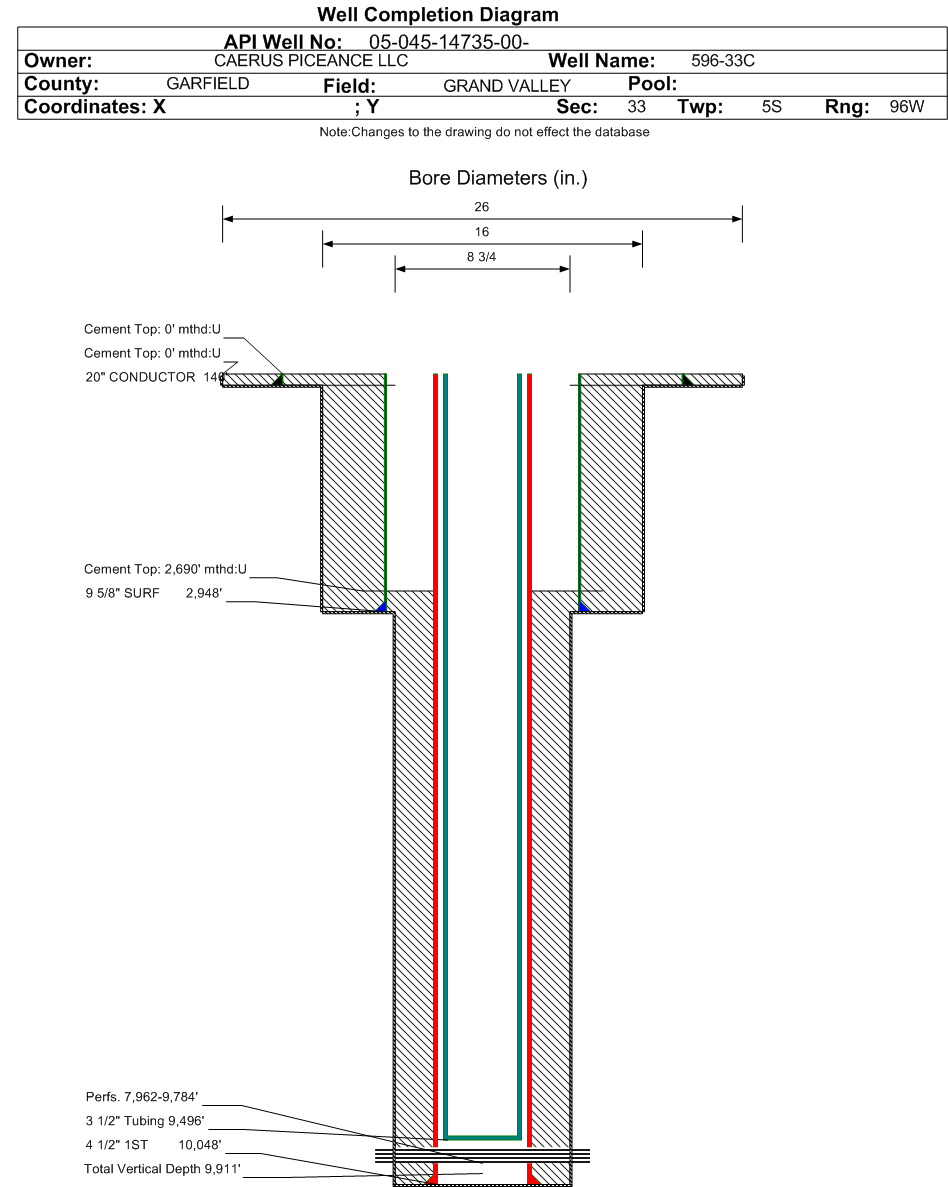

| Wellbore Completed | | Completion Date: | 4/25/2018 | | Spud Date: | 3/17/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 10092 ft. | Measured PB depth: | 9897 ft. | | True Vertical TD: | 9911 ft. | True Vertical PB depth: | 9719 ft. | | Top PZ Location: | Sec:33 Twp: 5S 96W | Footage: 1475 FSL 729 FWL | | Bottom Hole Location: | Sec:33 Twp: 5S 96W | Footage: 1402 FSL 607 FWL | | Log Types: | DIGITAL ACOUSTILOG/GR, RADIAL ANALYSIS BOND, RES. PERFORM. MONITOR, MUD, CWS TRIPCOMBO"QUICKLOOK"; COMP-PHOTO-DENS/COMPDUALNEUTRON; COMP SONIC; CWS ARRAY INDUCTION SHALLOW-FOCUSED E LOG. | | Log Types: | MUD | | Log Types: | NO LOGS RUN YET & NO FORMATION TOPS YET. | | Log Types: | Temperature | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 20 in., Top: 0 ft., Depth: 140 ft., Weight: 53 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 140 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 16 in., Size: 9.625 in., Top: 0 ft., Depth: 2948 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 1424, Top: 0 ft., Bottom: 2948 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10048 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 904, Top: 2690 ft., Bottom: 10048 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 4 in., Size: 3.5 in., Top: 0 ft., Depth: 9907 ft., Weight: 9.2 , Citings Type: ACTUAL | | Cement: | Sacks: 110, Top: 1966 ft., Bottom: 9907 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 4891 ft. | | N | N | | FORT UNION | 5240 ft. | | N | N | | MESAVERDE | 6761 ft. | | N | N | | CAMEO | 9372 ft. | | N | N | | ROLLINS | 9887 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 5/18/2018 Interval Top: 7962 ft. Interval Bottom: 9784 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 5/18/2018 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 5/10/2018 | Treatment End Date: | 5/14/2018 | | Treatment Summary: | 12-stage plug-and-perf completion;
48075 total bbls fluid pumped: 47992 bbls recycled water (slickwater) and 83 bbls 7.5% HCl acid;
no proppant used. | | Total fluid used in treatment (bbls): | 48075 | Max pressure during treatment (psi): | 8354 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 12 | | Total acid used in treatment (bbls): | 83 | Min frac gradient (psi/ft): | 0.57 | | Recycled water used in treatment (bbls): | 47992 | Total flowback volume recovered (bbls): | 24348 | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 3.5 in. | Tubing Setting Depth: | 9496 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/18/2018 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1405 | | BTU_GAS | 1080 | | CALC_BBLS_H2O | 1405 | | CALC_MCF_GAS | 355 | | CASING_PRESS | 575 | | MCF_GAS | 355 |
| | Perforation Data: | | Interval Top: | 7962 ft. | # Of Holes: | 180 | | Interval Bottom: | 9784 ft. | Hole Size: | 0.41 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 38 |
| Total Gas Produced (MCF) | 20845 |
| GOR | 548552 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.960 |
| Average MCFE per Day | 57.735 |
| Federal Financial Assurance | i | |
|
|
