Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-14731		Well Classification: GW	Status: PA - 8/4/2020
Well Name/No:	596-33C #25 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	QB ENERGY OPERATING LLC - 10844 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PA	Status Date	8/4/2020
FacilityID:	292486	LocationID:	335880
County:	GARFIELD #045	Location:	SWSW 33 5S96W 6
Field:	GRAND VALLEY - #31290	Elevation:	8242 ft.
Basin:	PICEANCE BASIN
Planned Location:	246FSL 1308 FWL	Lat/Long: 39.565070 / -108.178840	Lat/Long Source: Field Measured
As Drilled Location:	Footages Not Available	Lat/Long: 39.565070 / -108.178840	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PA - 8/4/2020 Measured TD: 10115 ft. Vertical TD: 9977 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PA - 8/4/2020
Wellbore Permit			DIRECTIONAL
Permit #:	20074250	Expiration Date:	9/27/2008
Proposed Top PZ Location:	Sec: Twp:	Footage: 1162 FSL 1984 FWL
Bottom Hole Location:	Sec:33 Twp: 5S 96W	Footage: 1162 FSL 1984 FWL
Proposed Depth/Form:	9976 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 510-18 , Unit Acreage: 320, Drill Unit: S/2

Wellbore Completed
Completion Date:	8/1/2008
Spud Date:	6/9/2008	Spud Date Is:	ACTUAL
Measured TD:	10115 ft.	Measured PB depth:	10030 ft.
True Vertical TD:	9977 ft.	True Vertical PB depth:	9893 ft.
Top PZ Location:	Sec:33 Twp: 5S 96W	Footage: 1195 FSL 2059 FWL
Bottom Hole Location:	Sec:33 Twp: 5S 96W	Footage: 1195 FSL 2059 FWL
Log Types:	MUD. ACOUSTILOG/GR, RADIAL BOND, RPM
Log Types:	NO LOGS RUN,NO FORM.TOPS YET.AS-DRILLED GPS DATA NOT TAKEN YET, AS RIG IS STILL ON PAD.

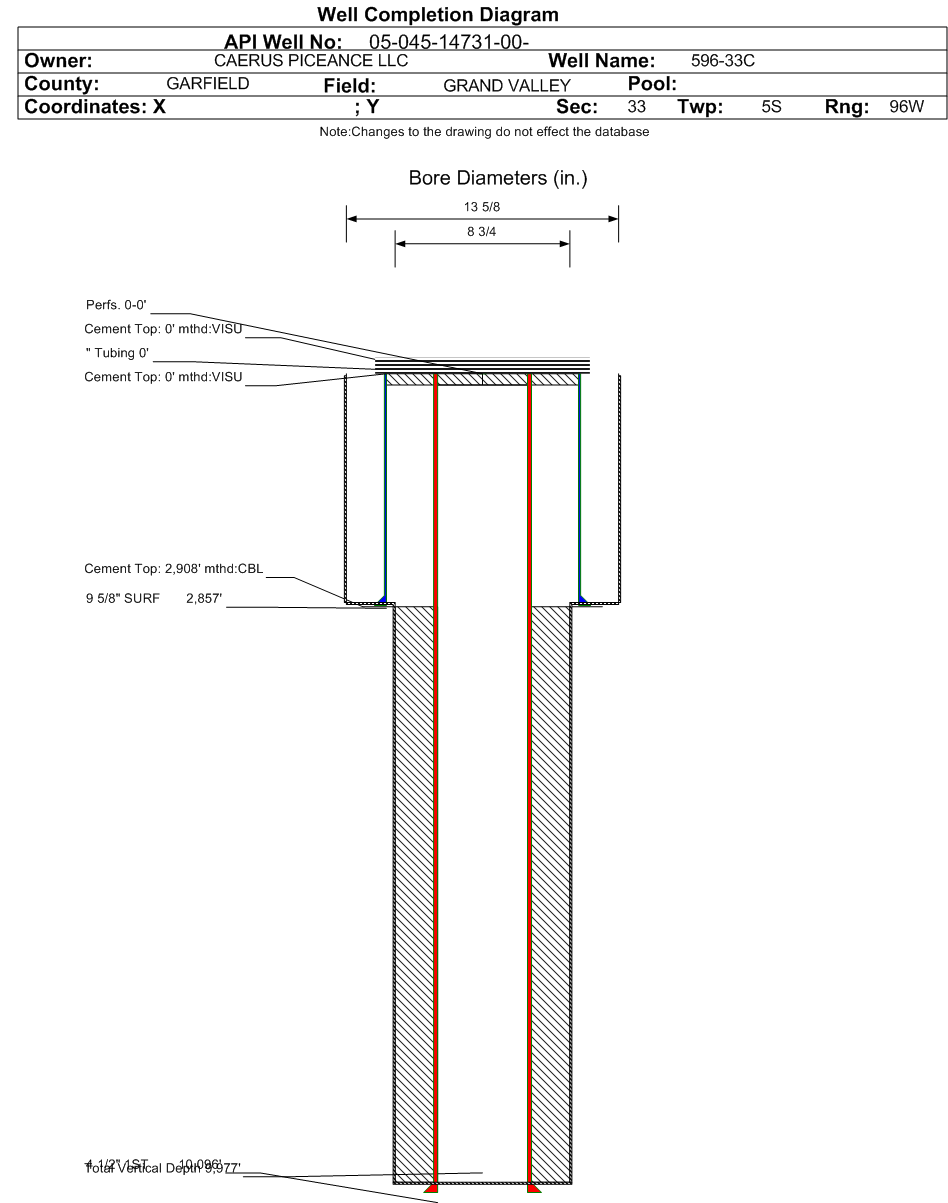

Casing:	String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 140 ft., Weight: 94 , Citings Type: ACTUAL
Cement:	Sacks: , Top: 0 ft., Bottom: 140 ft., Determination Method: VISU
Casing:	String Type: SURF, Hole Size: , Size: 9.625 in., Top: 0 ft., Depth: 2857 ft., Weight: 36 , Citings Type: ACTUAL
Cement:	Sacks: 1624, Top: 0 ft., Bottom: 2857 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 10096 ft., Weight: 11.6# , Citings Type: ACTUAL
Cement:	Sacks: 942, Top: 2908 ft., Bottom: 10096 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	4858 ft.		N	N
FORT UNION	5211 ft.		N	N
MESAVERDE	6763 ft.		N	N
CAMEO	9421 ft.		N	N
ROLLINS	9938 ft.		N	N

Formation RLNS Formation Classification: SI Status: AB - 8/4/2020 Interval Top: 9938 ft.

Completed Information for Formation ROLLINS

1st Production Date:	N/A	Choke Size:
Formation Name:	ROLLINS	Commingled:
Production Method:
Open Hole Completion:

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation RLNS.

Perforation Data:
Interval Top:		# Of Holes:
Interval Bottom:		Hole Size:

All Designations		Date
Primary Well Designation: None i
Reported Plugged	Y	08/04/2020
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

September 2024 - August 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination
Average BOE per Day	0.000
Average MCFE per Day	0.000

Federal Financial Assurance

Tribal Well
